(25) Install fifth gear thrust washer (Fig. 98).
(26) Install new fifth gear snap ring (Fig. 99).
(27) Install reverse shift fork and synchronizer
sleeve onto main shaft (Fig. 100).
(28) Install reverse gear on countershaft with
Installer 9391 bolt, bearing and washer and 1 3/16
half inch drive socket (Fig. 101).

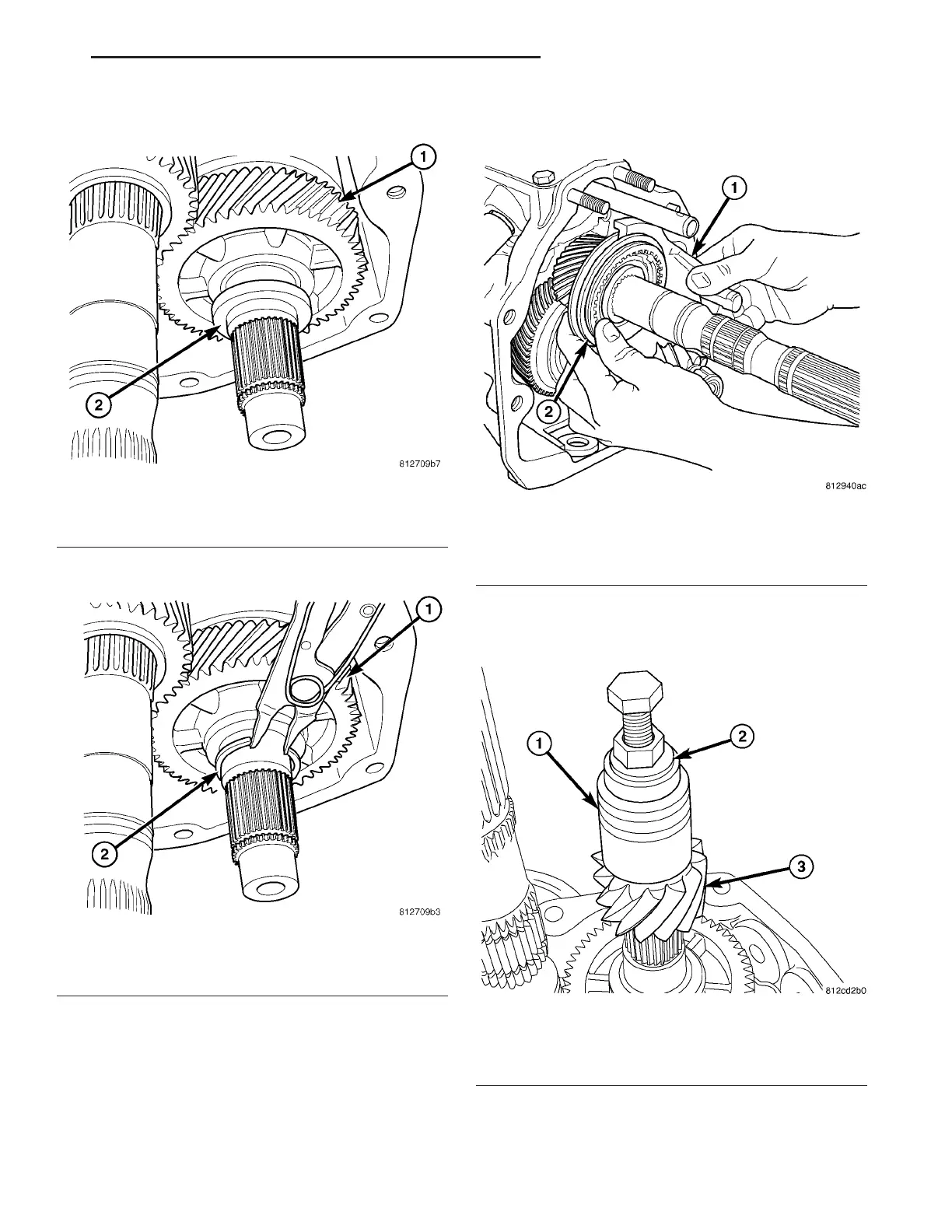

Fig. 98 FIFTH GEAR THRUST WASHER
1 - FIFTH GEAR
2 - THRUST WASHER
Fig. 99 FIFTH GEAR SNAP RING
1 - FIFTH GEAR
2 - SNAP RING
Fig. 100 REVERSE SHIFT FORK AND
SYNCHRONIZER
1 - SHIFT FORK
2 - SYNCHRONIZER
Fig. 101 REVERSE COUNTERSHAFT GEAR
1 - SOCKET
2 - INSTALLER
3 - REVERSE GEAR
