(29) Install reverse gear snap ring on countershaft.
(30) Install reverse synchronizer snap ring (Fig.
102).
(31) Install new reverse shift fork snap ring with
the flat side facing rearward (Fig. 103).
(32) Install reverse gear, bearing, wave washer
and brass synchronizer ring (Fig. 104).
(33) Install reverse gear thrust washer and snap
ring (Fig. 105).

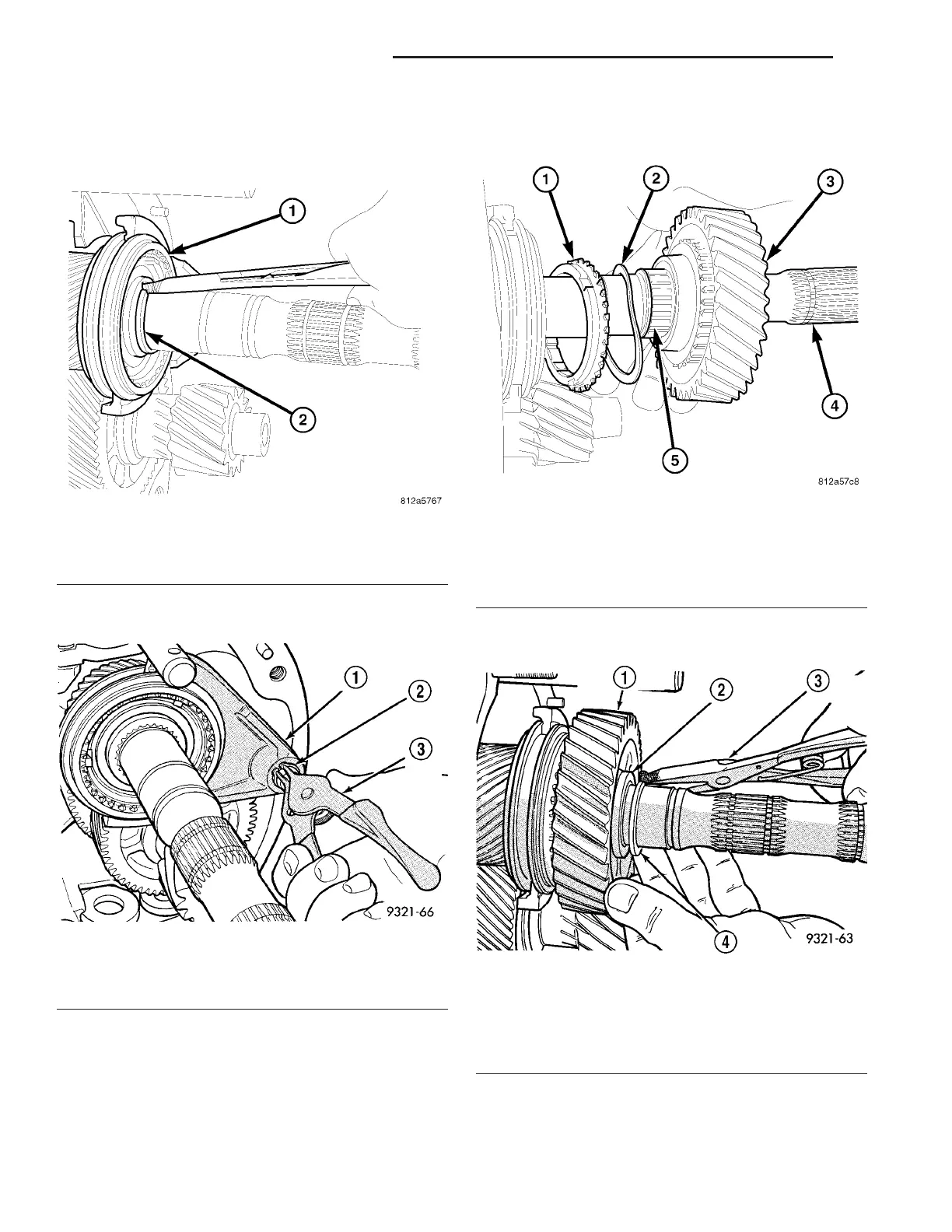

Fig. 102 SYNCHRONIZER SNAP RING
1 - SYNCHRONIZER
2 - SNAP RING
Fig. 103 SHIFT FORK SNAP RING
1 - REVERSE SHIFT FORK
2 - SNAP RING
3 - SNAP RING PLIERS
Fig. 104 REVERSE GEAR AND BEARING
1 - BLOCKER RING
2 - WAVE WASHER
3 - REVERSE GEAR
4 - MAINSHAFT
5 - BEARING
Fig. 105 REVERSE GEAR SNAP RING AND THRUST
WASHER
1 - REVERSE GEAR
2 - THRUST WASHER
3 - SNAP RING PLIERS
4 - SNAP RING
