(34) Install main shaft roller bearing, spacers and
snap ring (Fig. 106).
(35) Apply Mopart Gasket Maker to tail housing
sealing surface.
(36) Install the six tail housing to case bolts (Fig.
107) and tighten bolts to 41 N·m (30 ft. lbs.).
(37) Install two tail housing nuts on top of trans-
mission tail housing (Fig. 108).
(38) Slide offset lever onto shaft (Fig. 109).

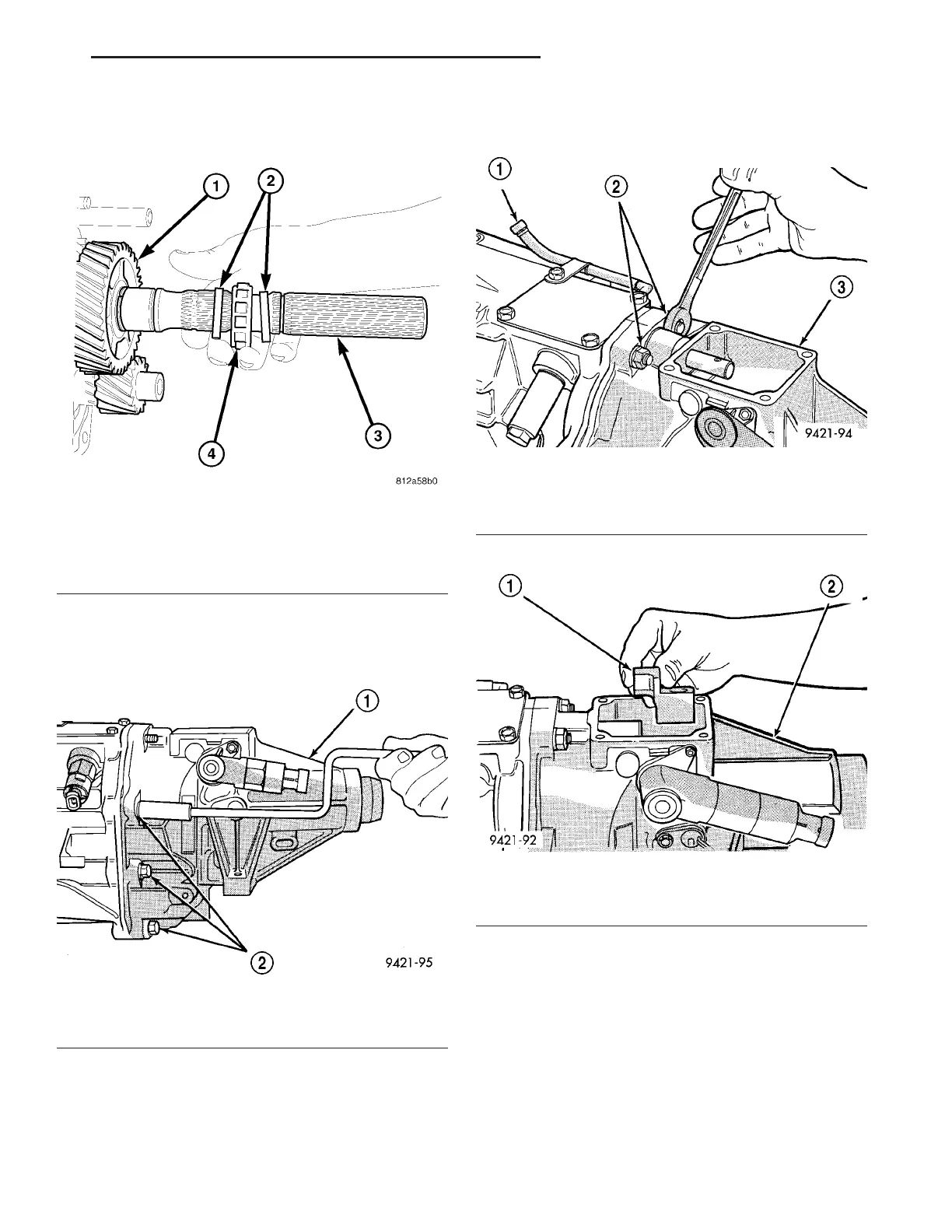

Fig. 106 MAINSHAFT BEARING AND SPACERS
1 - REVERSE GEAR
2 - SPACERS
3 - MAINSHAFT
4 - BEARING
Fig. 107 TAIL HOUSING BOLT
1 - TAIL HOUSING
2 - TAIL HOUSING BOLTS
Fig. 108 TAIL HOUSING NUT
1 - VENT
2 - TAIL HOUSING NUTS
3 - TAIL HOUSING
Fig. 109 OFFSET LEVER
1 - OFFSET LEVER
2 - TAIL HOUSING
