(8) Install front and rear Suspension Height Gages
on vehicle (Fig. 9) (Fig. 10). Ensure that gages are
correctly attached to inner rim flange at very base of
each wheel.

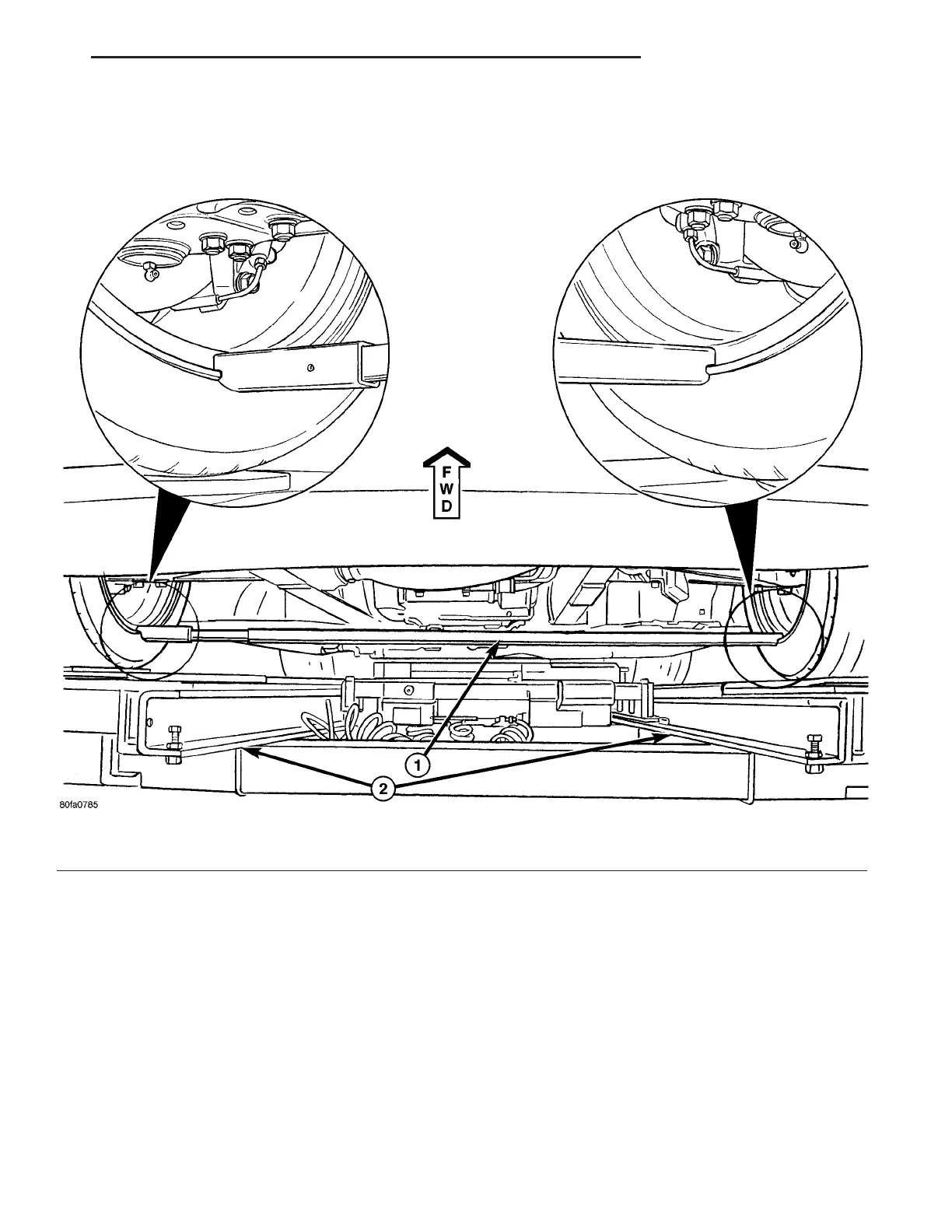

Fig. 9 Height Gage Installed - Front Suspension
1 - HEIGHT GAGE 6914 WITH EXTENSION 8997
2 - WHEEL ALIGNMENT RACK
