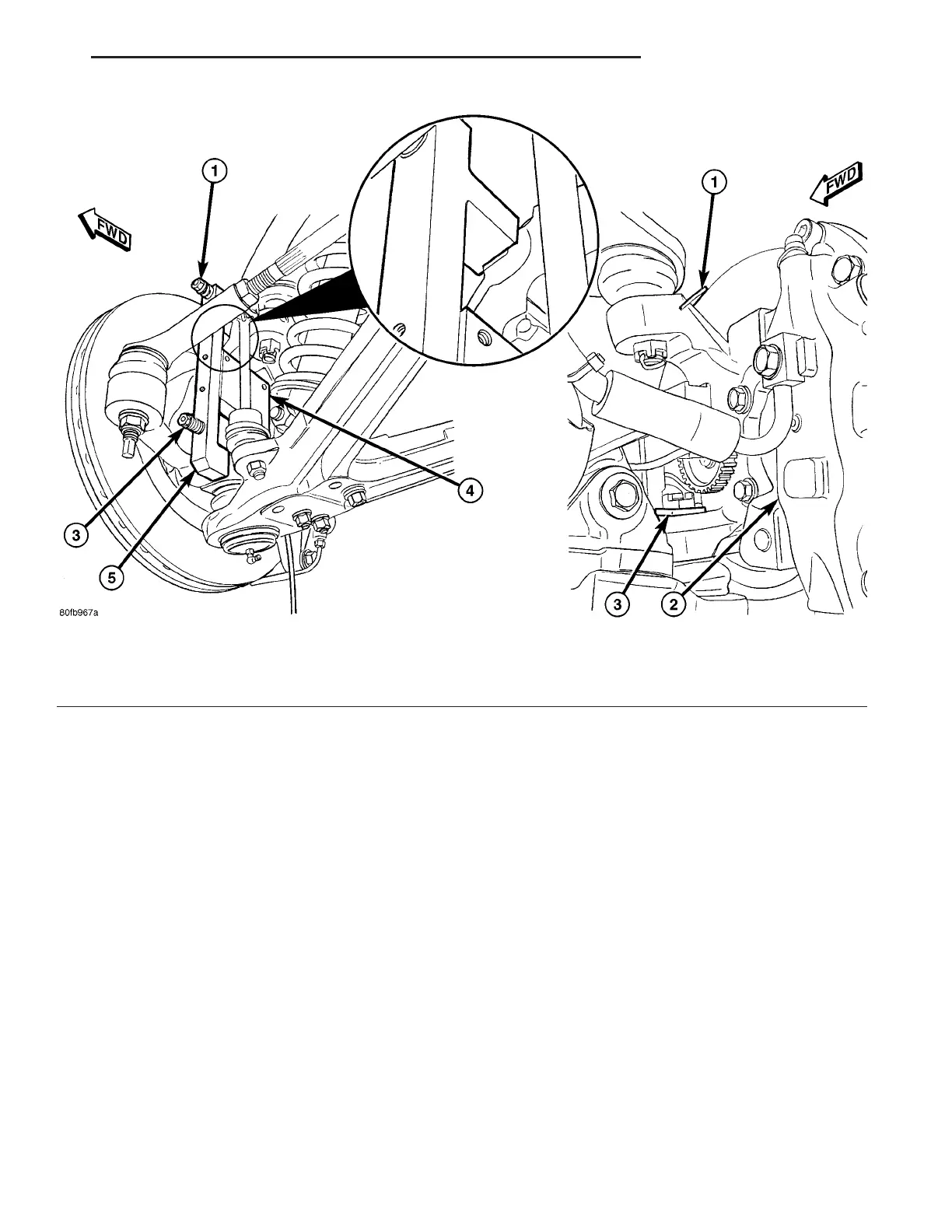

Fig. 19 Inclinometer Installed On Right Front Knuckle (Left Side Typical)
1 - UPPER SPRING-LOADED HOOK
2 - BRAKE CALIPER
3 - LOWER SPRING-LOADED HOOK
4 - INCLINOMETER 6989
5 - ADAPTER 8995
ZB WHEEL ALIGNMENT 2 - 69
WHEEL ALIGNMENT (Continued)
