If necessary remove the cover from the assembly profile as described from
page 234 onwards.
Ensure that the lever handle on the inside handle is aligned correctly (see
page 58).
When using adapter sleeves, make sure that these are attached correctly
(see page 66).

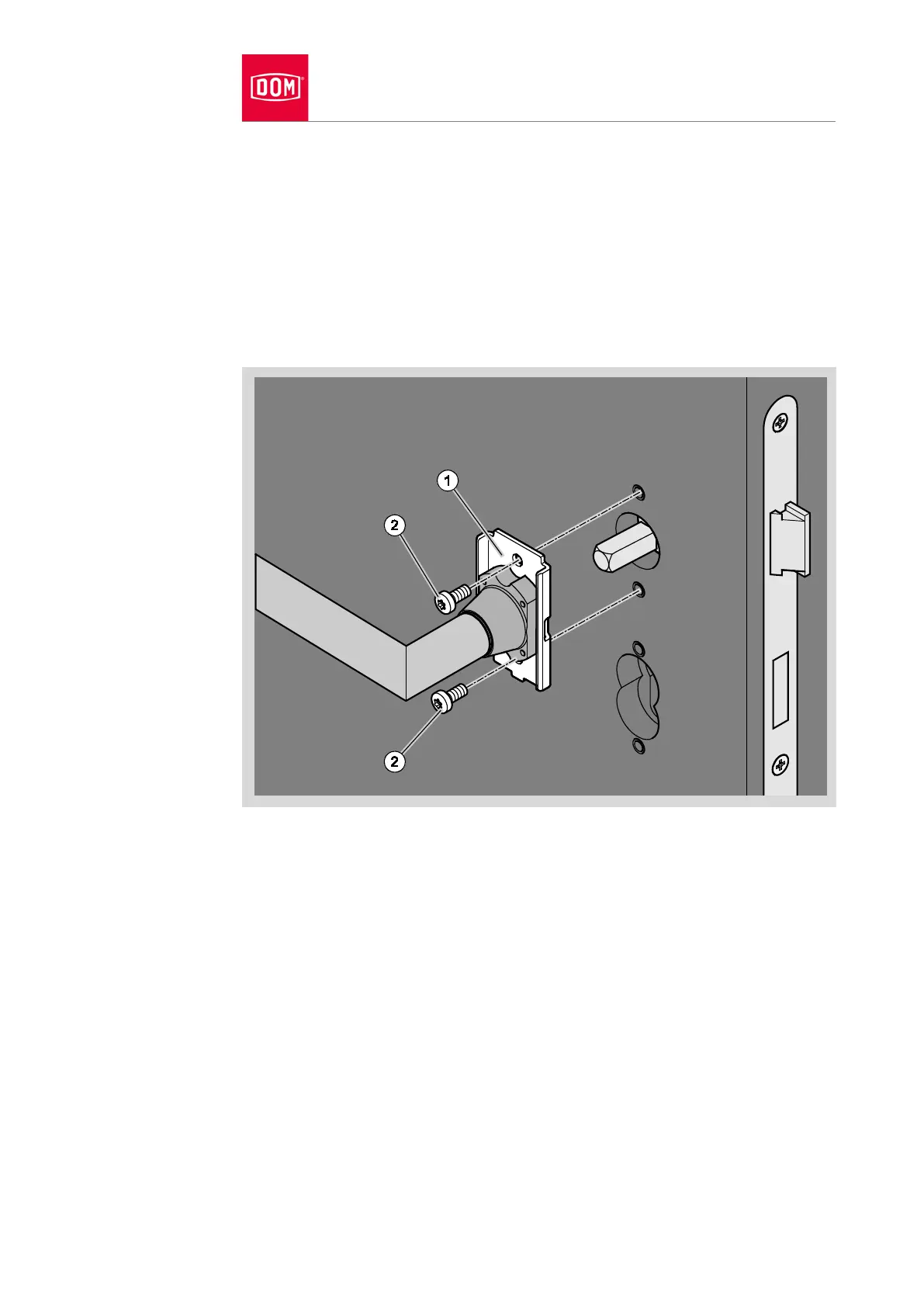

Screw the assembly profile (1) of the lever handle rosette on the inside onto
the door leaf with two short screws (2).
