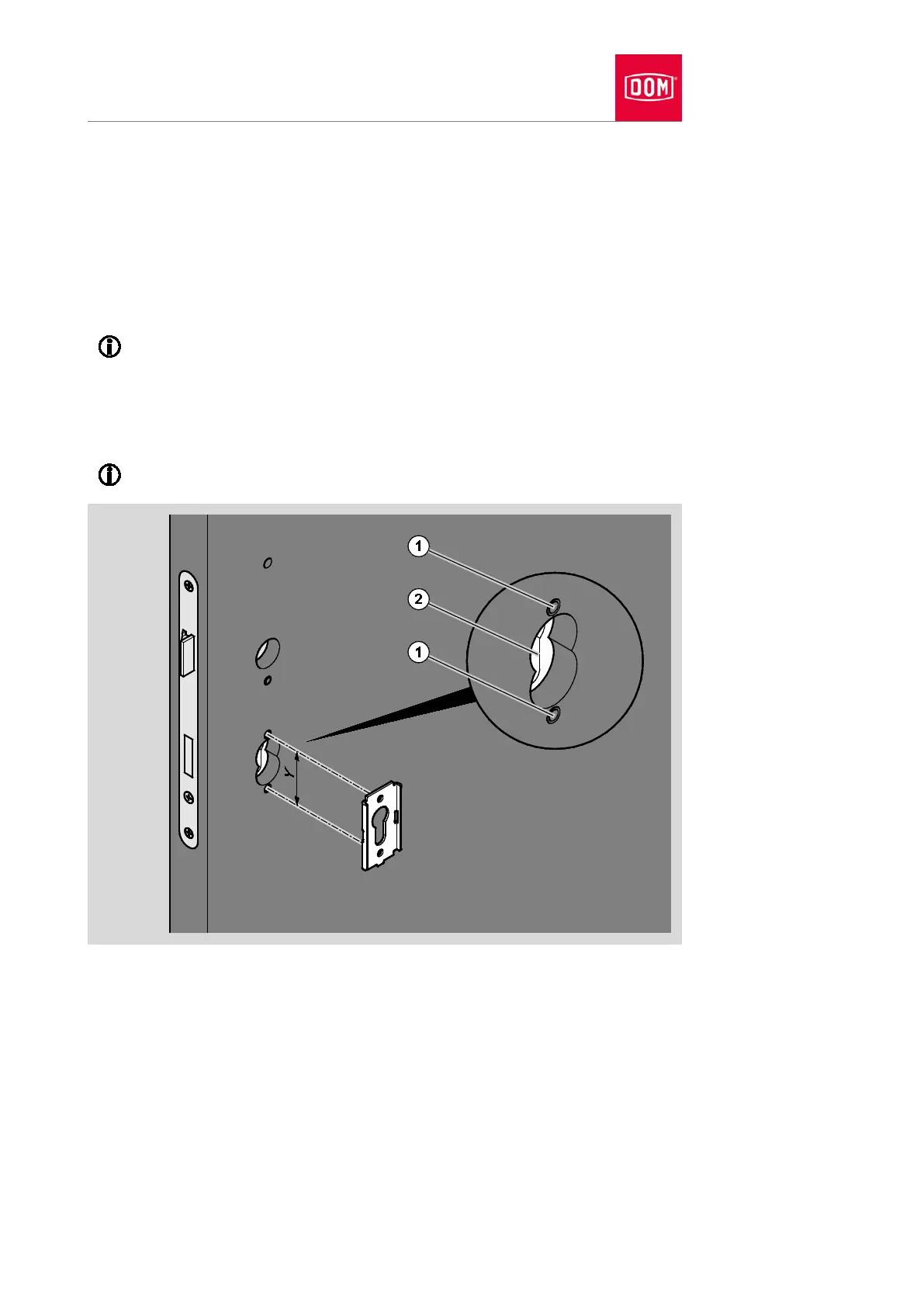

The assembly profiles for the cylinder rosette are screwed in place on both
sides of the door with two short screws each.
Make sure that both screw attachment points (1) on the door leaf have the
correct distance of 50 mm.
Make sure that the screw attachment points are positioned correctly in
relation to the lock cylinder (2).
The lock cylinder should be inserted in order to simplify the alignment.
Screw the assembly profile on the outside onto the door leaf with two short
screws on the screw attachment points.
Tighten the short screws so they are hand tight.
The lever handle rosette is not shown in the section which follows.
