Using adapter sleeve on a mechanical handle outside
A GUARD Slimline long plate is presented in the section which follows.
The procedure for other handles is no different from the one described
here.
Proceed as follows to install a spindle with an edge length less than 9 mm on
a mechanical handle on the outside:

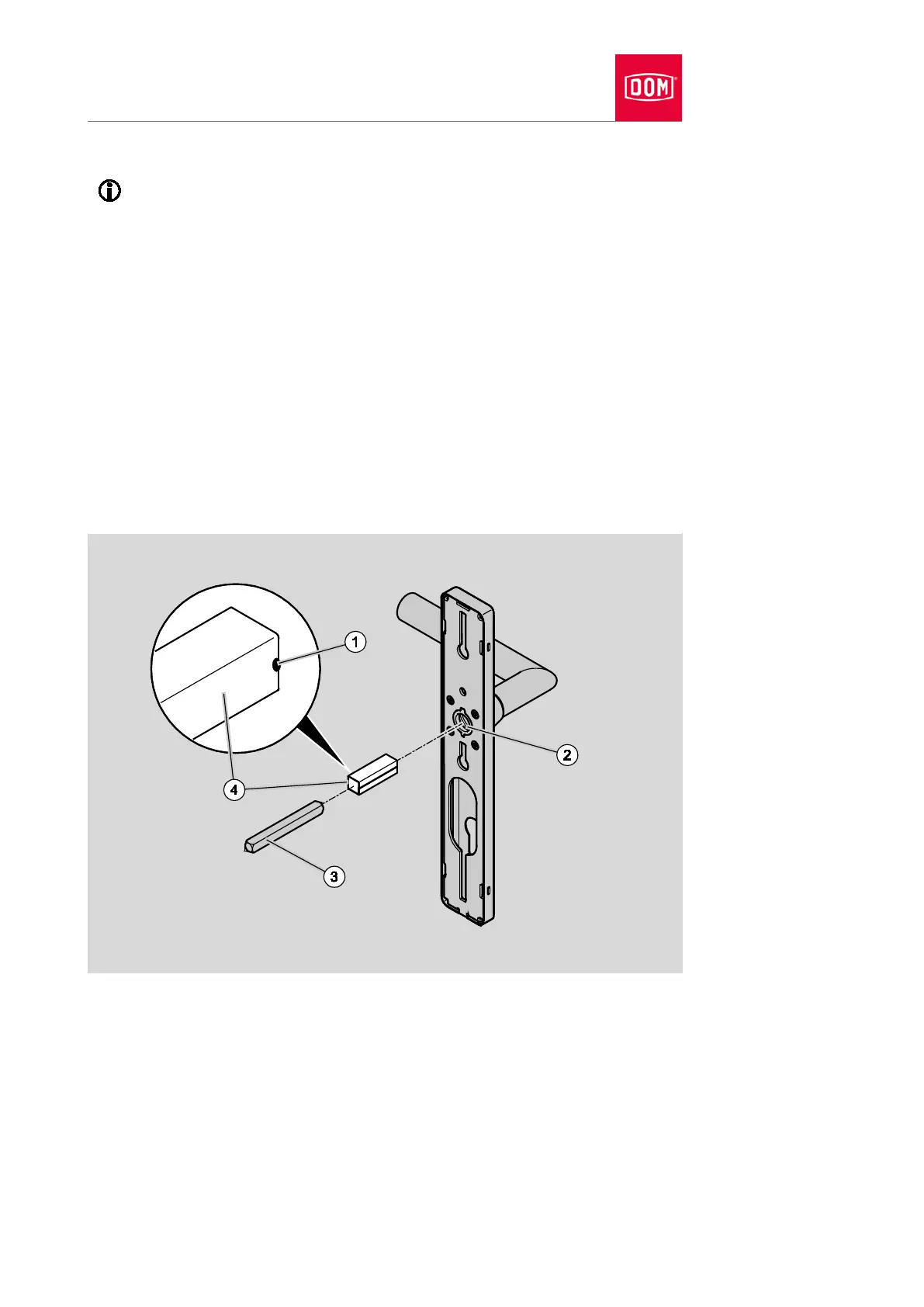

Align the larger adapter sleeve (4) in such a way that the end stopper
(inside) (1) is aligned with the drill hole in the spindle (3).
Push the larger adapter sleeve with the end stopper backwards onto the
spindle until it comes to a stop.
Insert the spindle with adapter sleeve into the lever handle (2).
There is no grub screw present for attachment of the spindle in the adapter
with mechanical handles.
Do not tilt the handle so that the spindle is released from the lever handle.
