Using adapter sleeve on an electronic handle outside
A GUARD Slimline long plate is presented in the section which follows.
The procedure for other handles is no different from the one described
here.
Proceed as follows to install a spindle with an edge length less than 9 mm on
an electronic handle on the outside:
Make sure that the spindle is of the correct length as described from
page 64 onwards.

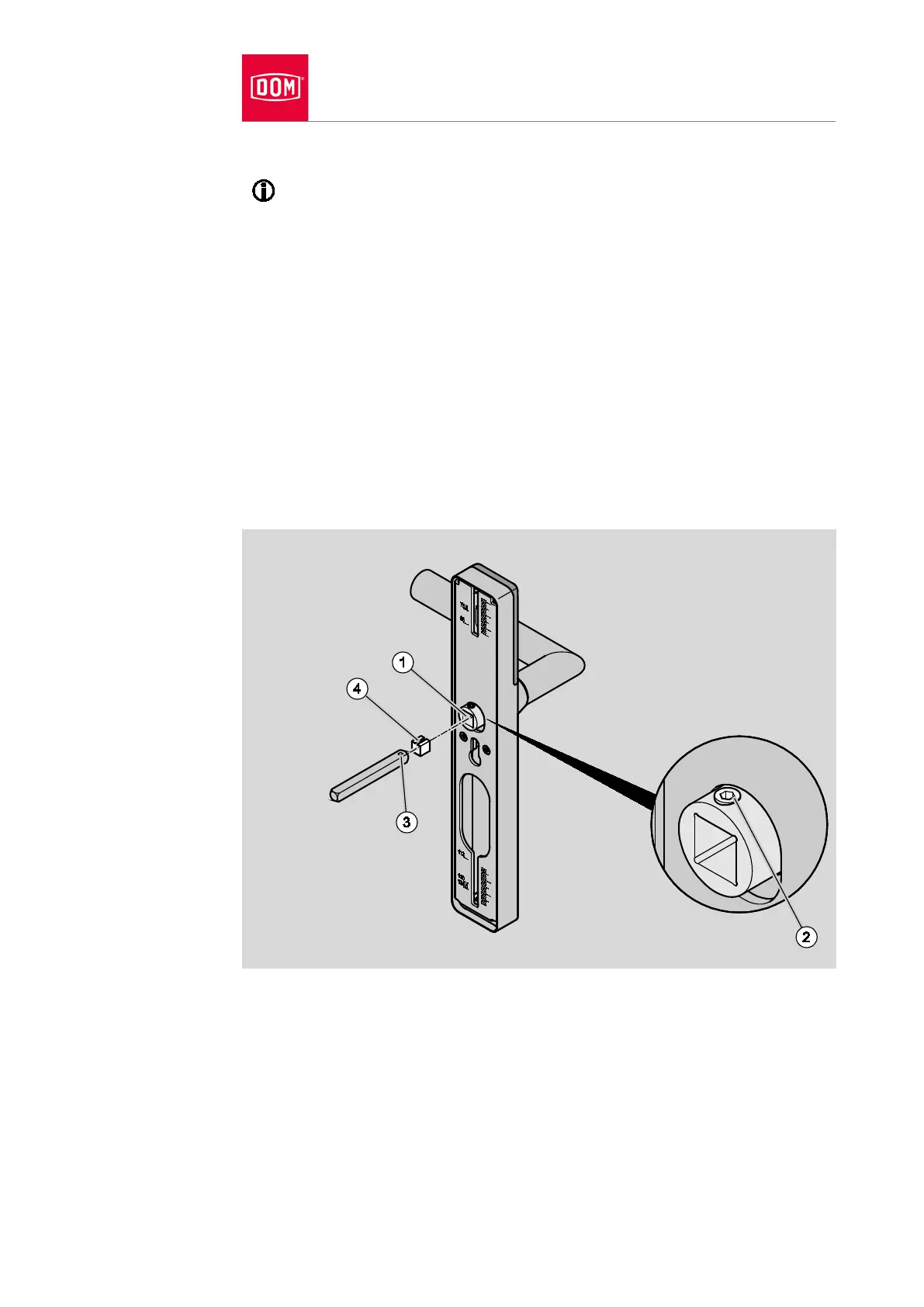

Push the smaller adapter sleeve (4) into the coupling nut (1) in such a way
that the slot in the adapter sleeve is aligned with the grub screw (2).
Insert the spindle into the adapter sleeve in such a way that the drill hole (3)
in the spindle is aligned with the grub screw.
Tighten the grub screw until it comes to a stop.
Loosen the grub screw half a turn.
Proceed as follows to prepare the handle for the inside:
Attach the second adapter sleeve in line with the type of inner handle.
The attachment of the adapter sleeve to the mechanical handle on the inside
is described from page 69 onwards. The attachment of the adapter sleeve to
the electronic handle on the inside is described from page 70 onwards.
For further assembly please ensure that the adapter sleeve does not fall out
of the prepared inner handle.
