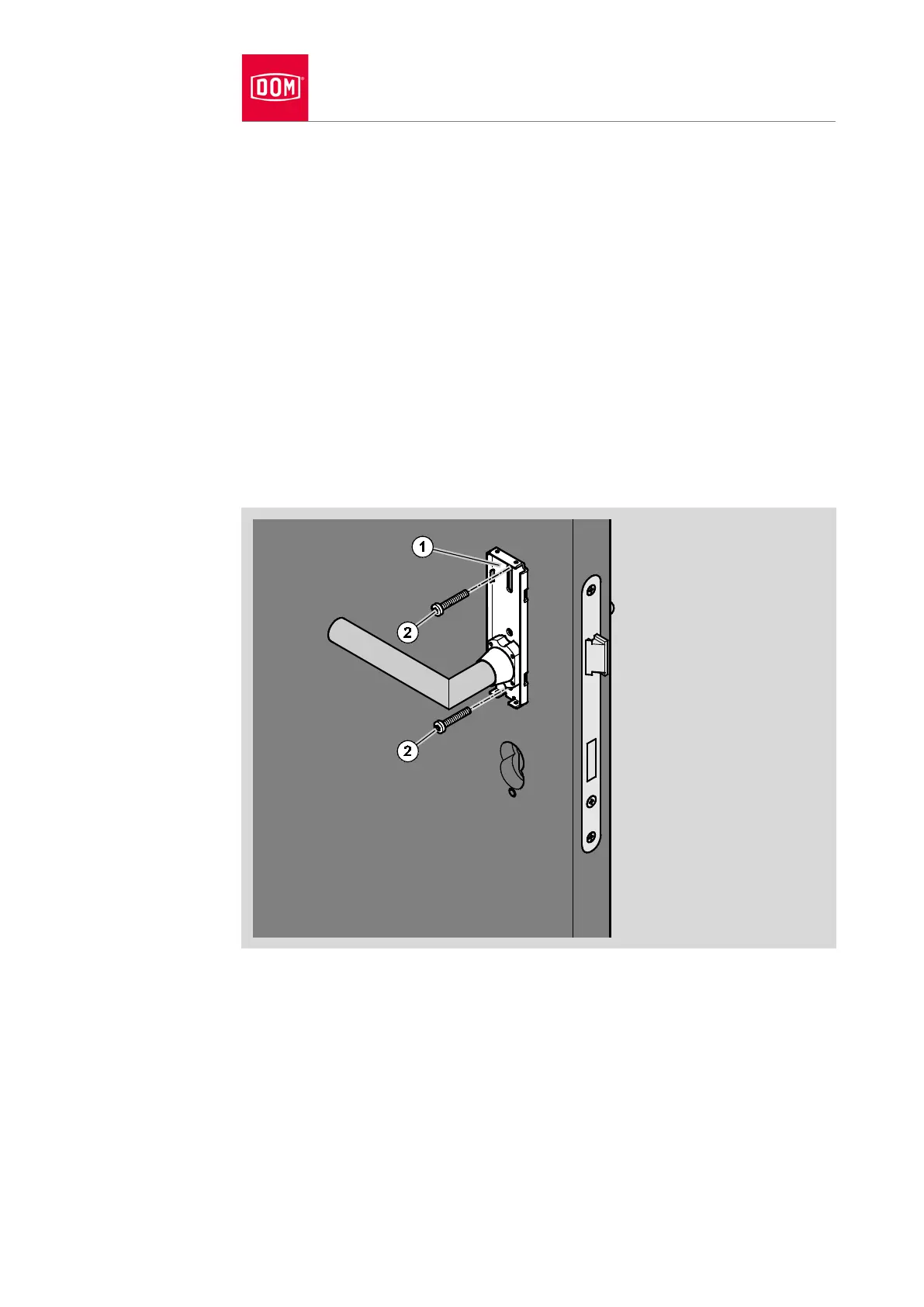

Proceed as follows to attach the inner handle (short plate) with the installed
and aligned lever handle:
Place the lever handle on the spindle protruding on the inside of the door.
Press the assembly profile (1) onto the door leaf.
Insert the long screws (2) at the top of the assembly profile and under the
lever handle through the guide slot into the attachment points as shown.
If necessary, move the long screws until they can be inserted easily into the
drill hole and screwed into the threaded bushes.
Screw the long screws into the threaded bushes so they are hand tight.
Check the lever handle for ease of movement.
Release the long screw on the lever handle a little if the lever handle does
not move easily.
Check the lever handle for ease of movement once again.
