The lever handle rosette is not shown in the section which follows.
Then attach the cylinder rosette as follows:
Insert a long screw (2) into the lower drill hole of the assembly profile (1).
If necessary, move the long screw until it can be inserted easily into the drill
hole and screwed into the threaded bush.
Press the assembly profile onto the door leaf.
Screw the assembly profile through the upper drill hole of the assembly
profile onto the door leaf with a short screw (3) so it is hand tight.
Screw the long screw below into the threaded bush so it is hand tight.

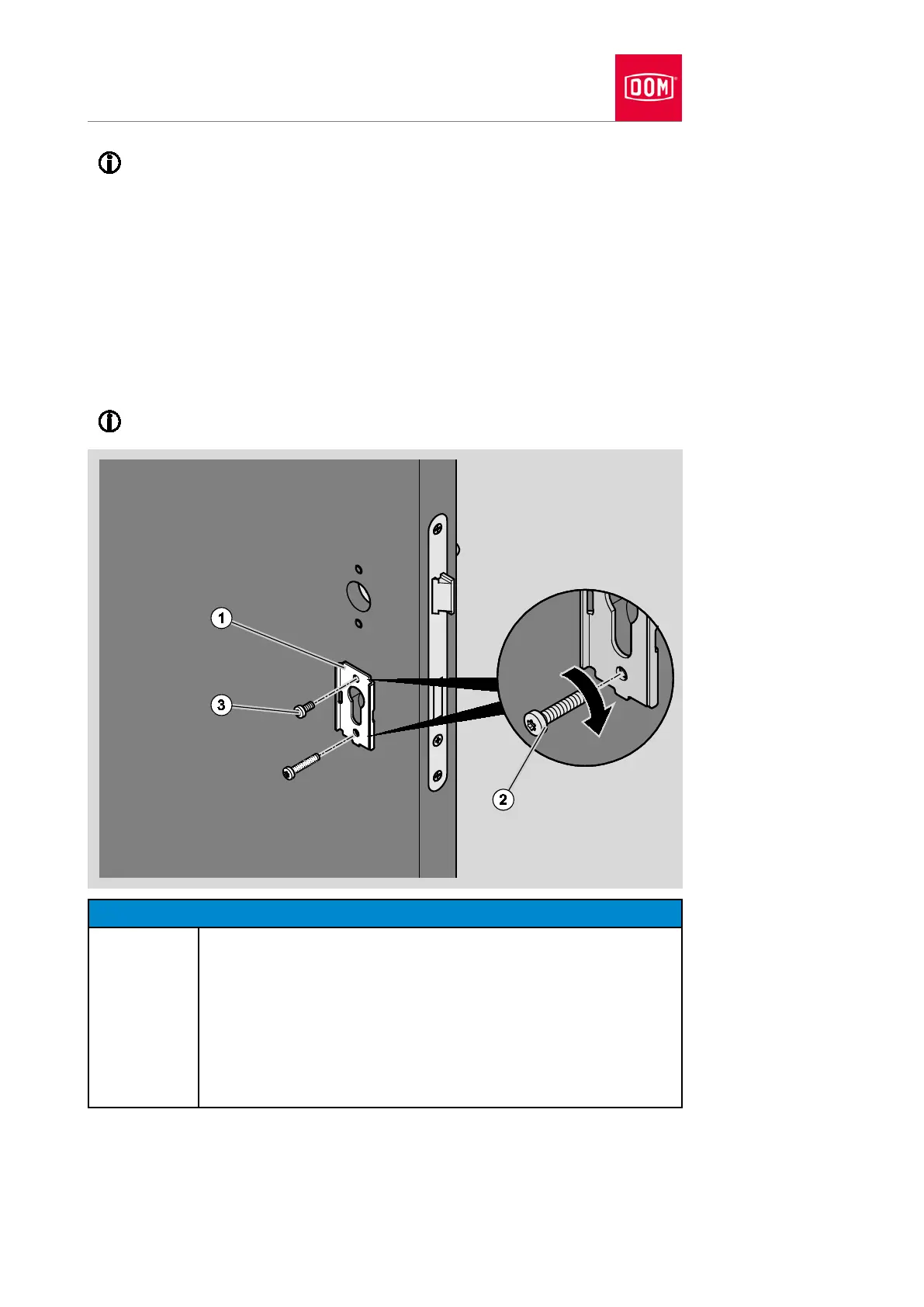

The diagram which follows shows an example of the attachment.
It is possible to damage the surface of the lever handle when
fitting the cover.
Do not use any force when installing the covers of handles.
Twist the cover round the lever handle while fitting in order
to avoid contact.
Ensure that the cover and the lever handle do not touch
when fitting the cover.
The cover of the mechanical handle is only put loosely in place on delivery.
You must press the cover onto the assembly profile until it clicks audibly into
place.
