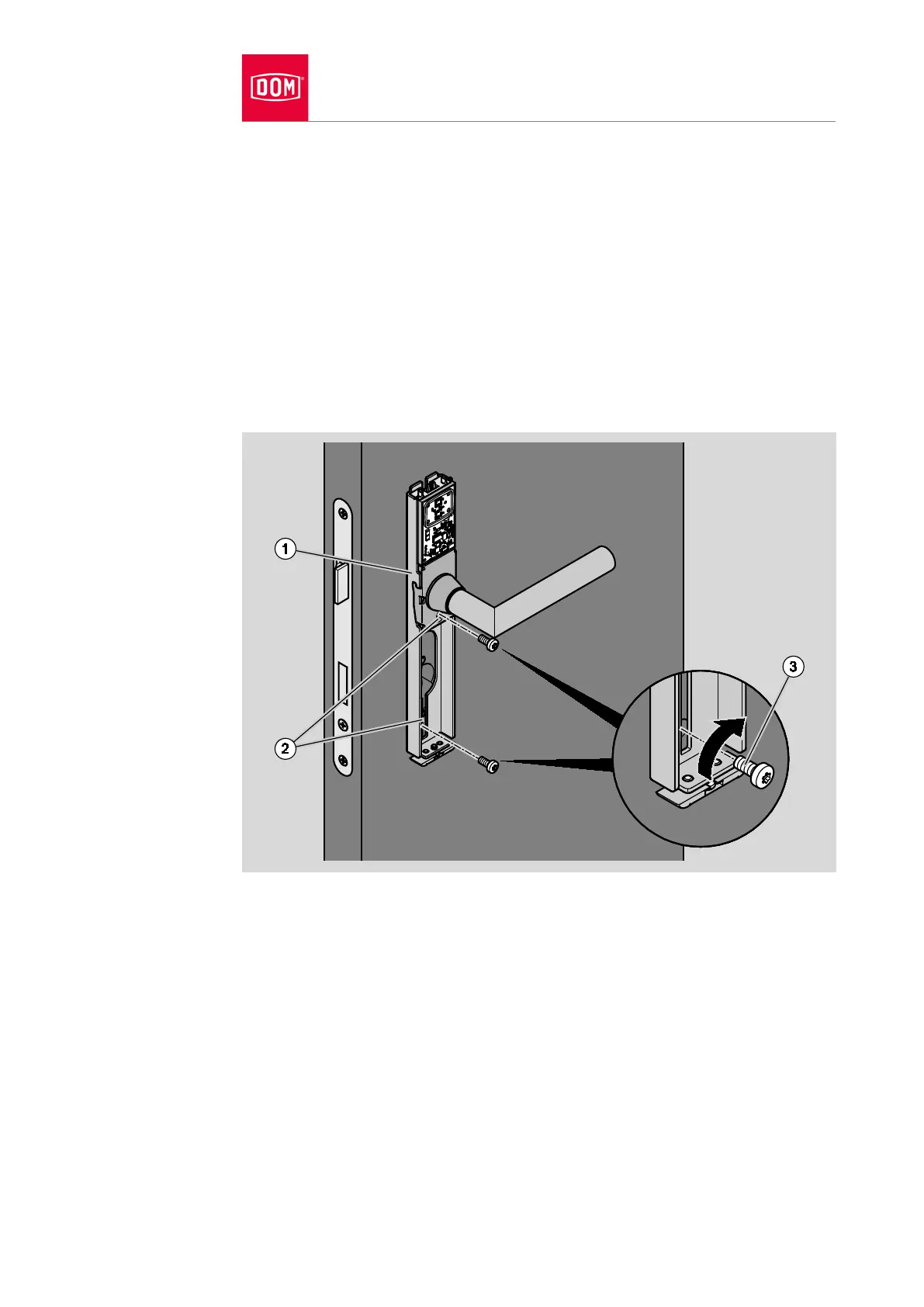

Insert the spindle in the electronic assembly profile (1) on the outside into
the spindle hub.
Press the assembly profile on the door leaf until it comes to a stop.
Insert two suitable short screws (3) into the centre and lower drill hole (2).
Tighten the centre short screw so it is hand tight.
Tighten the lower short screw so it is hand tight.
Check the lever handle for ease of movement.
Release the centre short screw a little if the lever handle does not move
easily.
Check the lever handle for ease of movement once again.
Ensure that the lever handle on the inside handle is aligned correctly (see
page 58).
When using adapter sleeves, make sure that these are attached correctly
(see page 66).
Proceed as follows to attach the inner handle with the installed and aligned
lever handle:
Place the lever handle on the spindle protruding on the inside of the door.
