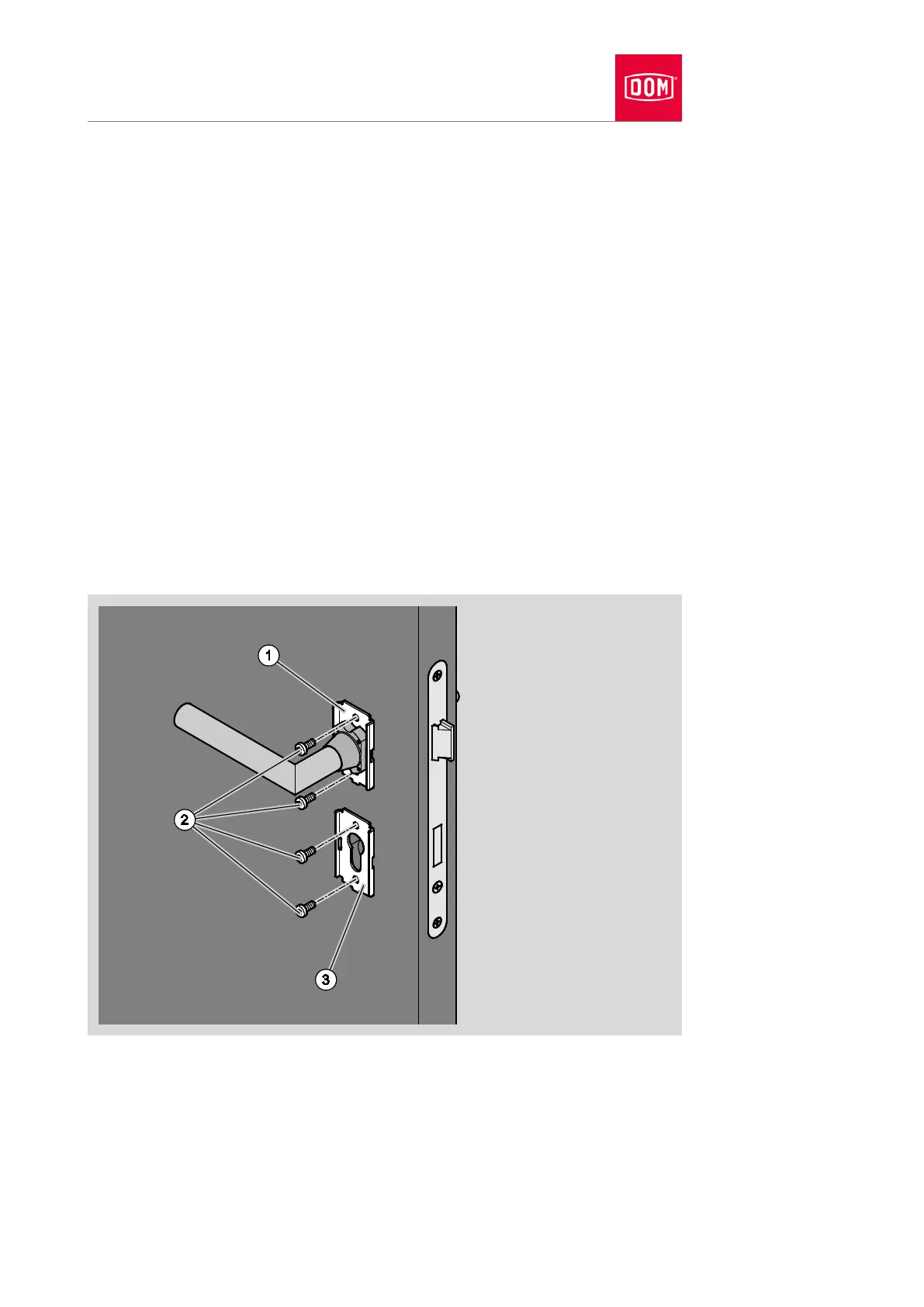

Press the assembly profile (1) onto the door leaf.
Insert two short screws (2) into the assembly profile at the top and bottom
as shown as an example.
Screw both short screws into the door leaf so they are hand tight.
Check the lever handle for ease of movement.
Release the short screw below the lever handle a little if the lever handle
does not move easily.
Check the lever handle for ease of movement once again.
Then attach the cylinder rosette as follows:
If necessary remove the cover from the assembly profile as described from
page 234 onwards.
Insert a short screw (2) into the upper and lower drill hole of the assembly
profile (3).
Press the assembly profile onto the door leaf.
Screw the assembly profile onto the door leaf with the short screws so it is
hand tight.
