6. Machine Accuracy Measurement and Adjustment

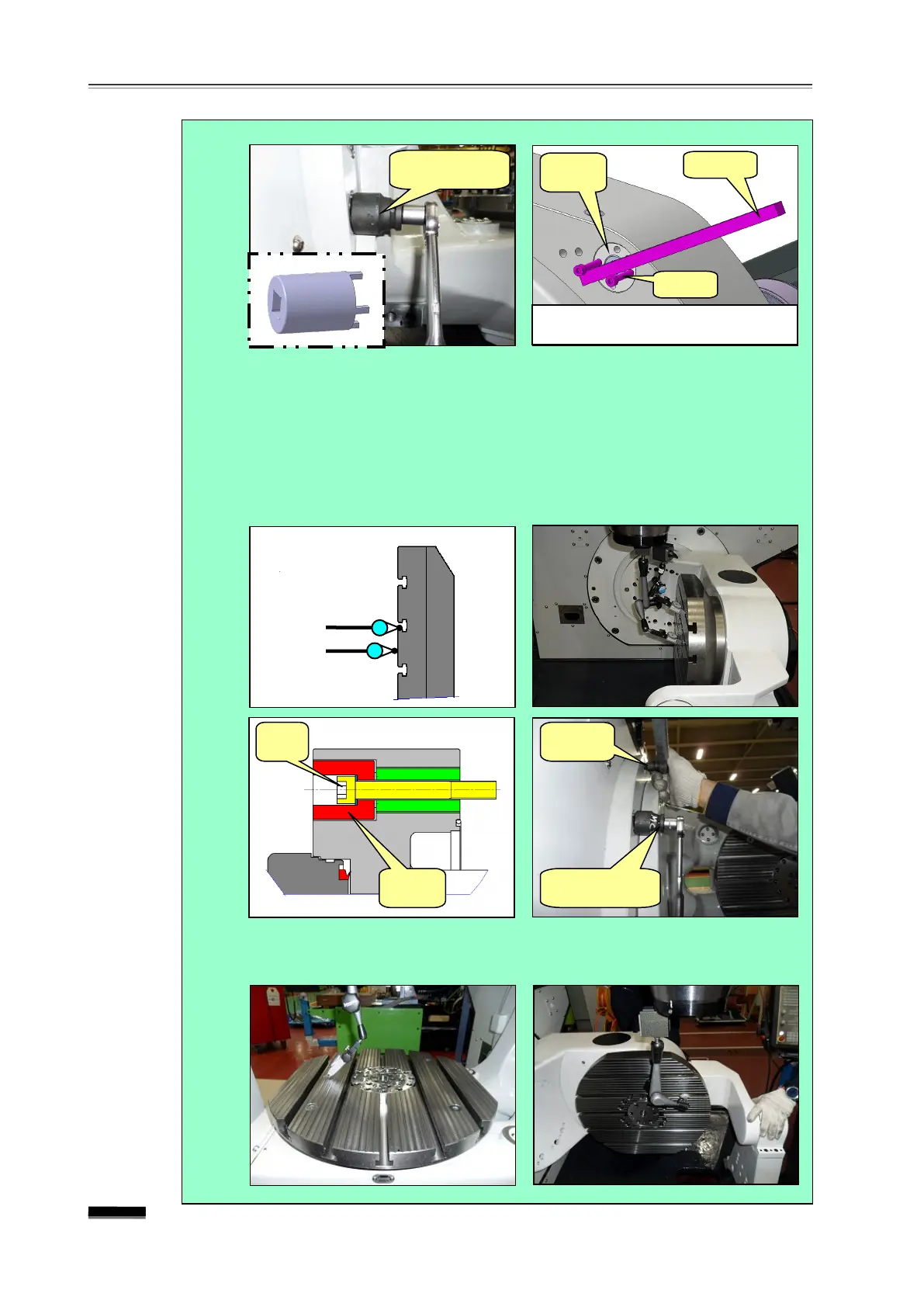

(4) Turn the B-axis to position B90 and measure the
erected table with the Y-axis by moving the Y-axis with
placed against the erected table top. In the event of
two indicators as shown above, adjust the accuracy by using the adjust
block with the fixing bolts loosened as shown above, and then tighten all
the fixing bolts as firmly as possible.
(5) Once again, check the B-axis by measuring the table top and Y-axis
parallelism at B0. and B90.
If the hook wrench was not
prepared, use a bolt and rod.
