34
ED100LE 02-2021DL4616-001
dormakaba ED100LE operator – Fine cover
Installation Instructions
Chapter 10
. Install track assembly

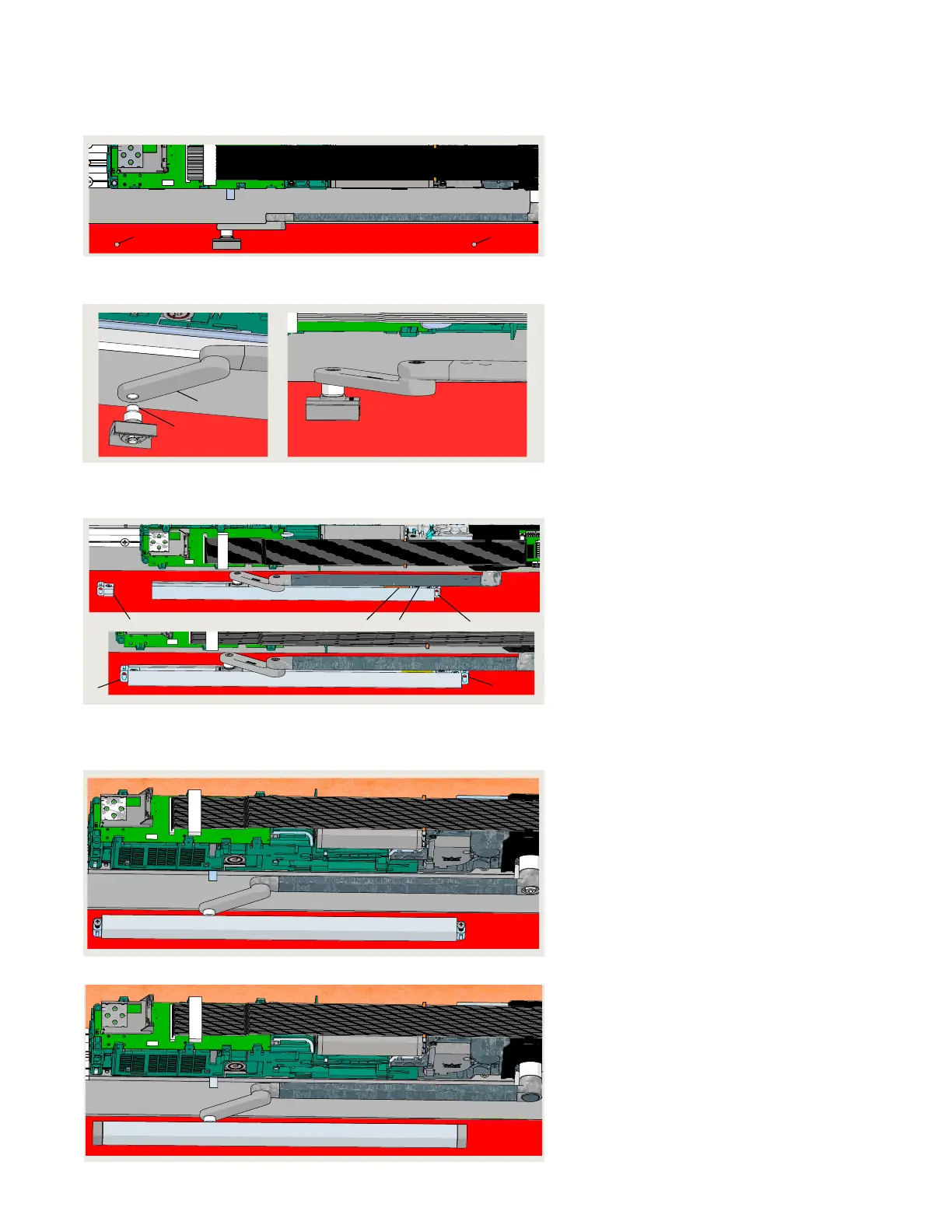

Fig. 10.8.2 Slide shoe installation on CPD lever
.. Locate and drill track mounting
holes.
. Using applicable template, locate and
drill mounting holes for track.
.. Install slide shoe assembly onto
CPD lever.
. Thread pivot pin M SHCS into CPD
lever mounting hole.
. Use mm hex key to tighten.
.. Slide track assembly onto slide shoe.
. Insure track components and CPD lever
are assembled based on hand of door
(Para. .).
. With fixing piece removed from track on
opposite end from bumper, slide track
assembly onto shoe (Fig. ..).
. Install second fixing piece onto track.
.. Secure track assembly to door.
. Attach track fixing pieces to door using
selected fasteners.
• Insure track is level as fasteners are
tightened.
.. Install end caps and spindle caps.
. Install two end caps on track and spindle
cap.
1 Pivot pin M8 SHCS 2 CPD lever
Fig. 10.8.3 Track assembly installed onto slide shoe
3 Shoe
4 Bumper stop
5 Bumper
6 Fixing piece
Fig. 10.8.1 Track mounting holes in door
1 Track mounting holes
Fig. 10.8.4 Track assembly secured to door
Fig. 10.8.5 End caps and spindle cap installed
1
1
1
2
6
6
5
4
6
6
