Dormakaba ED100LE - Single Door Configuration Examples; Double Door Configuration Examples

4
ED100LE 02-2021DL4616-001
dormakaba ED100LE operator – Fine cover
Installation Instructions
Chapter 1

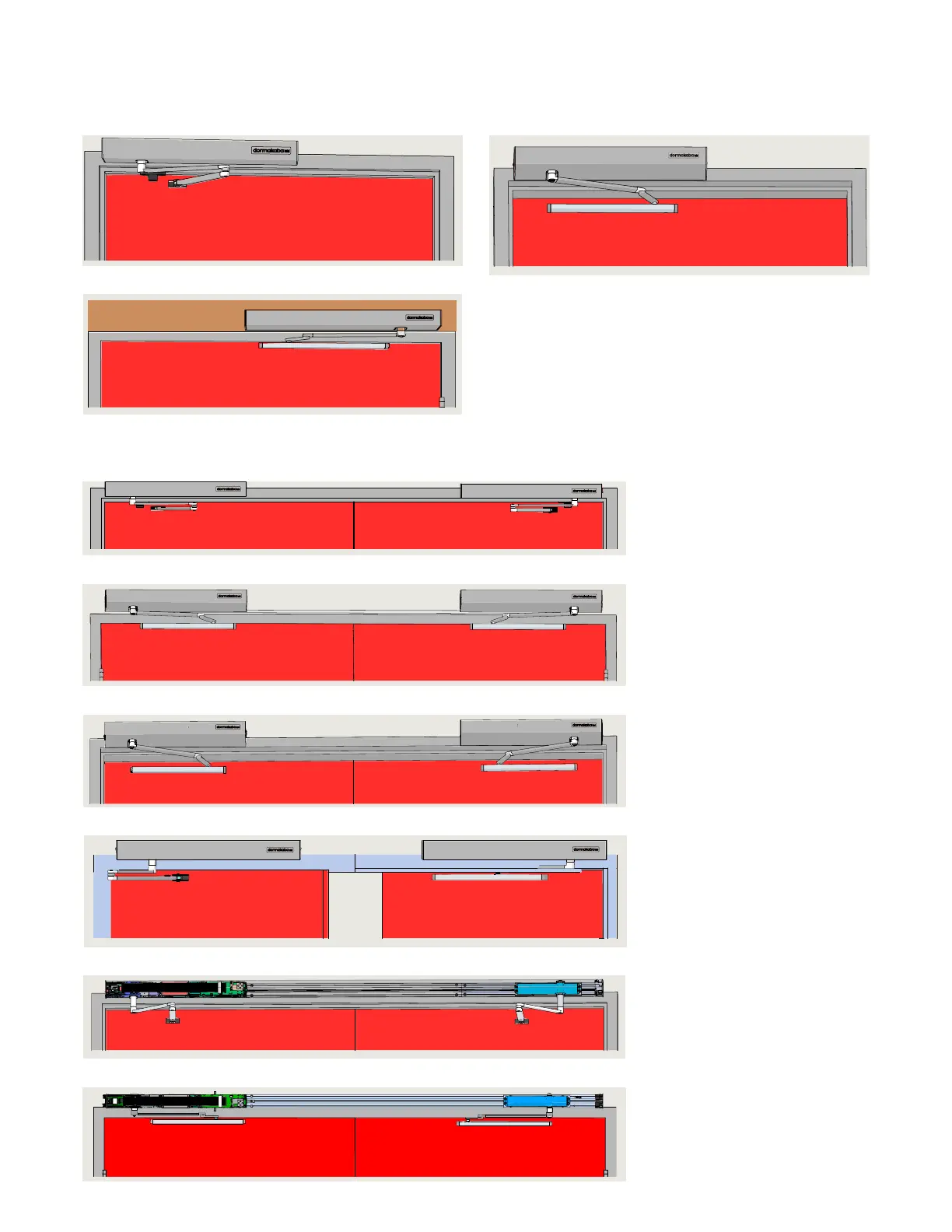

Fig. 1.2.1 LH push
Fig. 1.2.2 LH pull
Fig. 1.2.3 LH pull as a push
. Single door configuration examples
Fig. 1.3.1 Push
. Double door configuration examples
Fig. 1.3.2 Pull
Fig. 1.3.3 Pull as push – track mount installation
Fig. 1.3.4 Double egress
Fig. 1.3.5 Companion door; push without cover
Fig. 1.3.6 Companion door; pull without cover
