Dormakaba ED100LE - Push Arm Kits; Deep Pull Arm Kit; Arm Screw Kits; Optional Key Switch Panels

8
ED100LE 02-2021DL4616-001
dormakaba ED100LE operator – Fine cover
Installation Instructions
Chapter 2

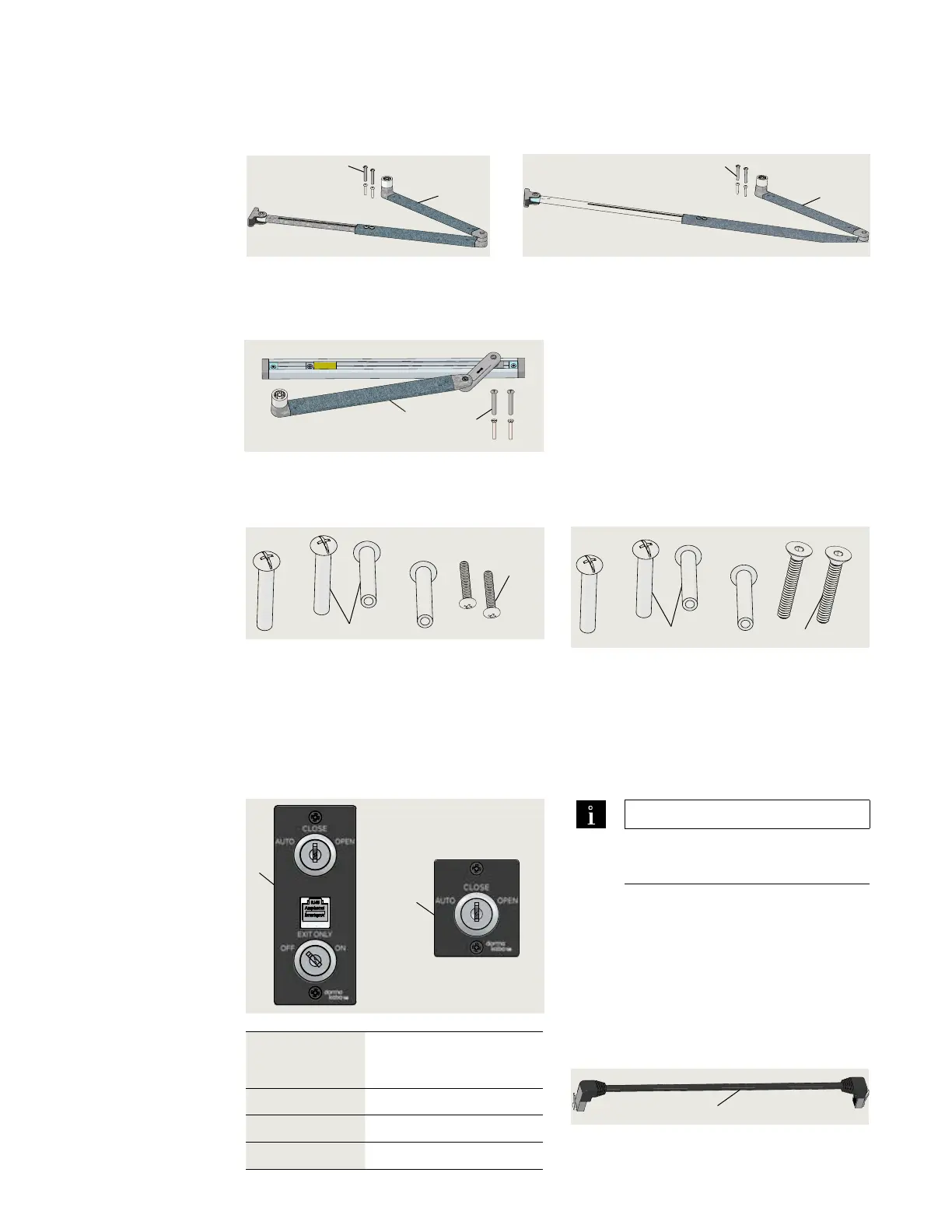

. Push arm kits
Fig. 2.10.2 Communication cable,
90 degree RJ45
1 Standard push
arm, 8.75" reveal
DC4677-01X
2 Deep push arm,
19.5" reveal
DC4677-02X
3 Screw kit,
HK2719-010
2
3
Fig. 2.7.1 Push arm kit, 8.75" reveal
HK4709-01X
1
3
Fig. 2.7.2 Push arm kit, 19.5" reveal
HK4709-02X
Fig. 2.9.1 Push arm screw kit HK2719-010
Fig. 2.9.2 Pull arm screw kit HK2719-020
10.1
10.2
9.1
9.2
. Deep pull arm kit
. Arm screw kits
Fig. 2.8.1 Deep pull arm kit, HK4709-12X
1 Deep pull arm
DC4678-02X
3 Screw kit,
HK2719-020
1
3
3
2 Key switch panel,
RJ45, HX4604-21C
3 Key switch panel
HX4604-11C
Fig. 2.10.1 Key switch panels
2
. Optional key switch panels
9.1 10-24 x 1 1/2"
barrel nut
DF2718-01Z
9.2 10-24 x 1/2"
PPHMS
DF3278-01Z
10.1 10-24 x 1 1/2"
barrel nut
DF2718-01Z
10.2 10-24 x 1 1/4"
FHSCS
DF2717-01Z
Communication
cable
 degree RJ
Length Item #
HX- ' [ mm] 
HX- ' [ mm] 
HX- ' [ mm] 
TIPS AND RECOMMENDATIONS
• Wiring diagrams; reference
Appendix B.
