Dormakaba ED100LE - Pull Arm Installation

50
ED100LE 02-2021DL4616-001
dormakaba ED100LE operator – Fine cover
Installation Instructions
Chapter 18
. Pull arm installation

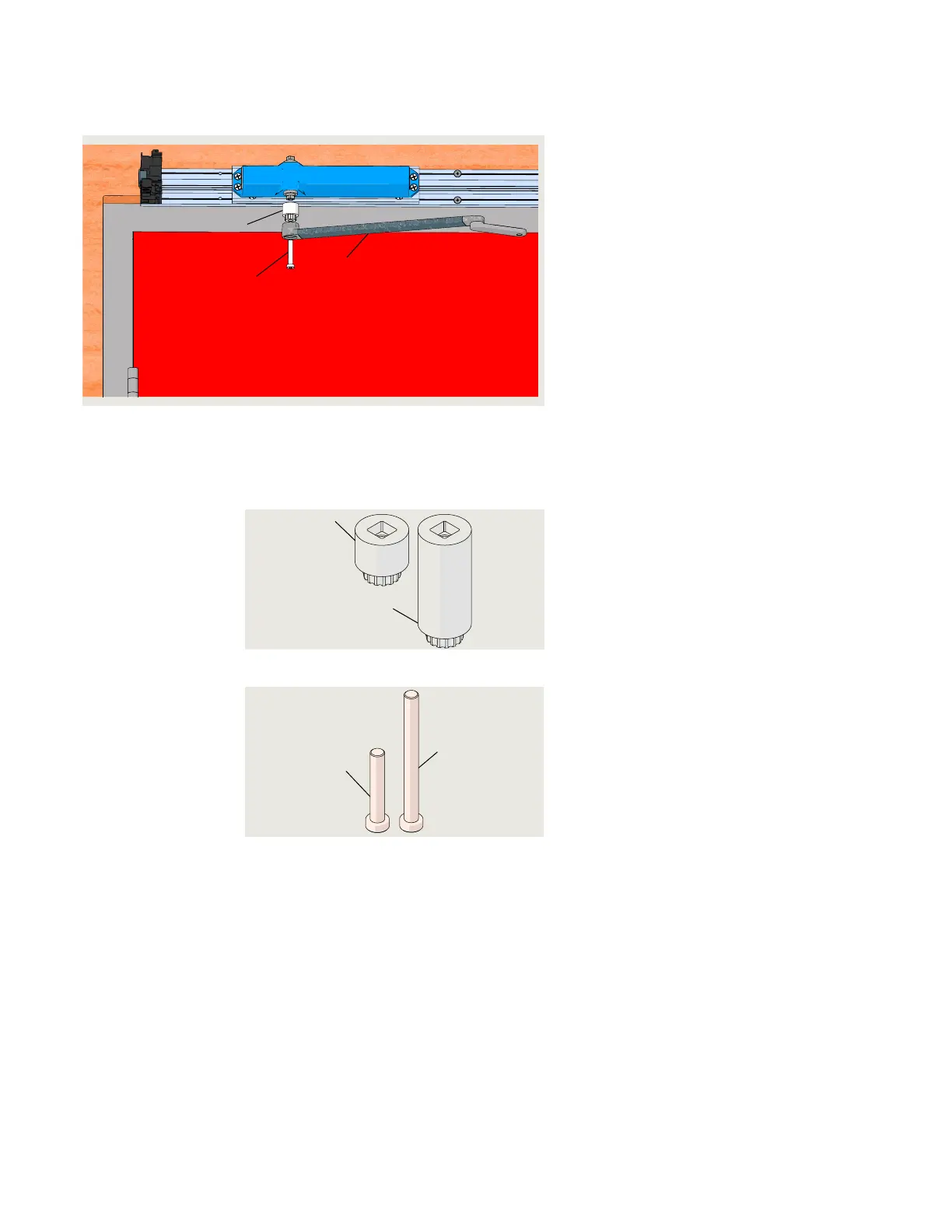

Fig. 18.3.1 Drive arm with CPD lever installation
1 Drive arm with
CPD lever
assembly
2 20 mm axle
extension
HC4680-001
.. Assemble track hardware.
. Reference Chapter , Para. . and
assemble hardware into track based on
RH or LH pull arm installation.
.. Assemble CPD lever to drive arm.
. Reference Chapter , Para. ..
Assemble CPD lever to drive arm based
on RH or LH pull arm installation.
1
2
3
3 M8 x 40 mm SHCS
Fig. 18.3.2 Drive axle extensions
2 60 mm axle
extension, door
closer,
HC4680-002
1
2
1 20 mm axle
extension, door
closer,
HC4680-001
Fig. 18.3.3 Bolt, axle extensions
2 60 mm bolt axle
extension
HF3465-040
1
2
1 20 mm bolt,axle
extension
HF3465-020
