dormakaba ED100LE operator – Fine cover
Installation Instructions
Chapter 18

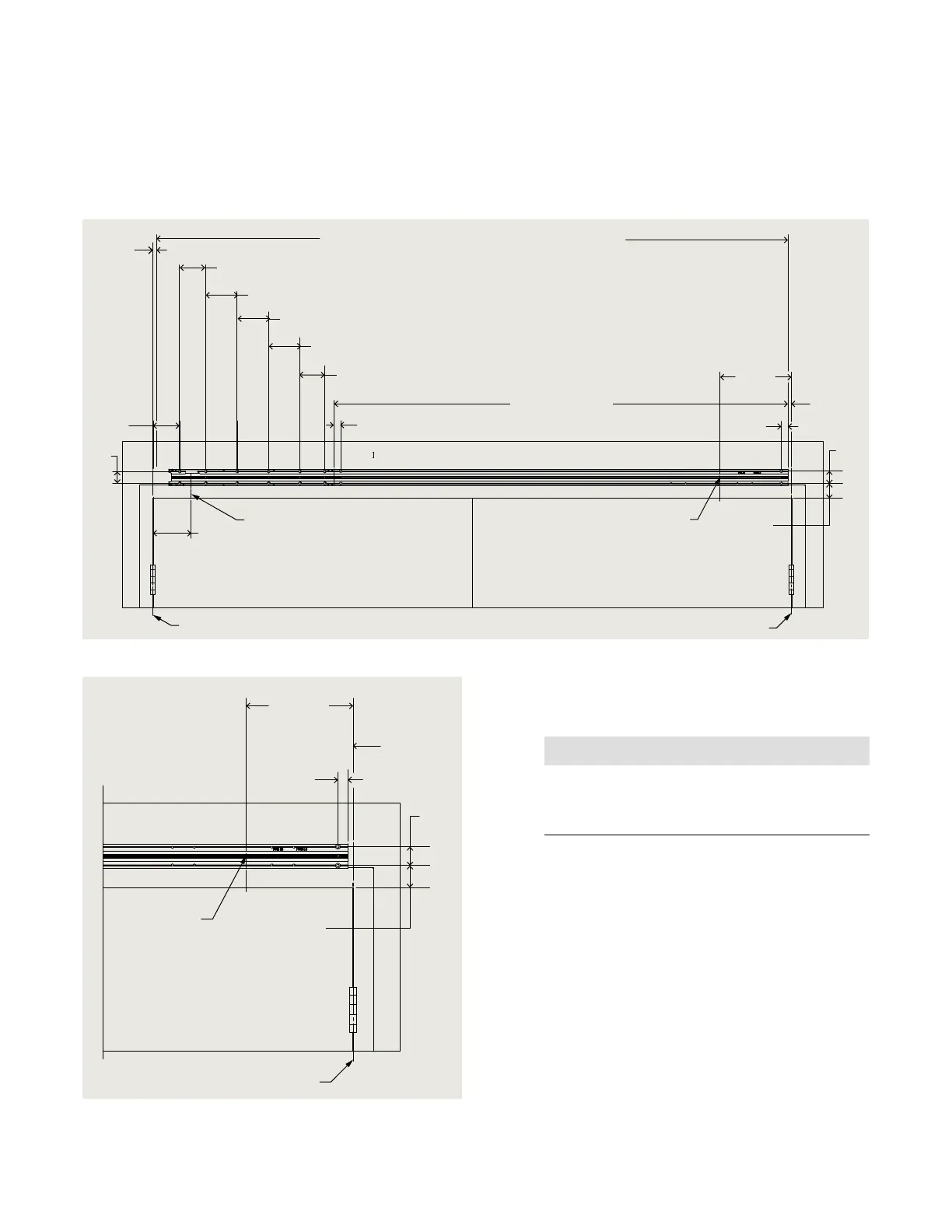

Fig. 18.1.2 Pull arm backplate mounting
 Companion door, pull arm installation
. Mount backplate, pull arm application
Fig. 18.1.1 ED100LE Companion backplate template; RH pull version
ED100LE COMPANION PULL
9/16”
[13.5]
To edge
of cover
FIXED
1 3/4”
[45]
4”
[101.82]
5 3/4”
[146.3]
Axle centerline
3 15/16”
[100]
Cover length = centerline of hinge pin - 1 1/8” [28.5]
Cover and axle end are fixed and cannot be extended
4 3/4”
[120]
4 3/4”
[120]
4 3/4”
[120]
3 3/4”
[95]
1”
[25.4]
Closer backplate
10 3/4”
[272.5]
9/16”
[13.5]
FIXED
1”
[25.4]
Axle centerline
2 3/16”
[56.2]
1 7/8”
[48]
Centerline of hinge pin
Centerline of hinge pin
10 3/4”
[272.5]
9/16”
[13.5]
FIXED
1”
[25.4]
Axle centerline
2 3/16”
[56.2]
1 7/8”
[48]
Centerline of hinge pin
.. Install backplate, pull arm application.
. Using backplate template (Fig. .. and ..),
locate left hand and right hand backplate mounting
holes on door frame/wall.
NOTICE
Template documents a RH pull installation.
Template must be mirrored for a LH pull
installation.
. Place backplate on door frame/wall and align with
the mounting hole locations in step .
• Check hinge pin centerline to edge of backplate
distance.
. Check backplate for level; adjust if necessary.
. Mark backplate mounting hole locations.
. Remove backplate and drill holes based on fastener
selected for door frame/wall material.
• Reference Para. . for backplate mounting screw kit.
• Use appropriate wall anchors if required.
. Place backplate on door frame/wall and secure with
fasteners.
