ED100LE 02-2021DL4616-001
dormakaba ED100LE operator – Fine cover
Installation Instructions
Chapter 2
2 Fine cover, pair,
HC3459-03X
3 End cap set,
HC3466-01X
4 Spindle cap set,
HC3466-02X
5 Backplate, ED
operator FC Ext
HC3468-010
7 Mounting extr
connector
HC3491-010
9 dormakaba
logoplate
HD4613-020
10 M6 x 10 mm SHS
with washer
HF3495-01Z
11 M6 x 10 mm PFHS,
HF3496-01Z
13 Logo placement

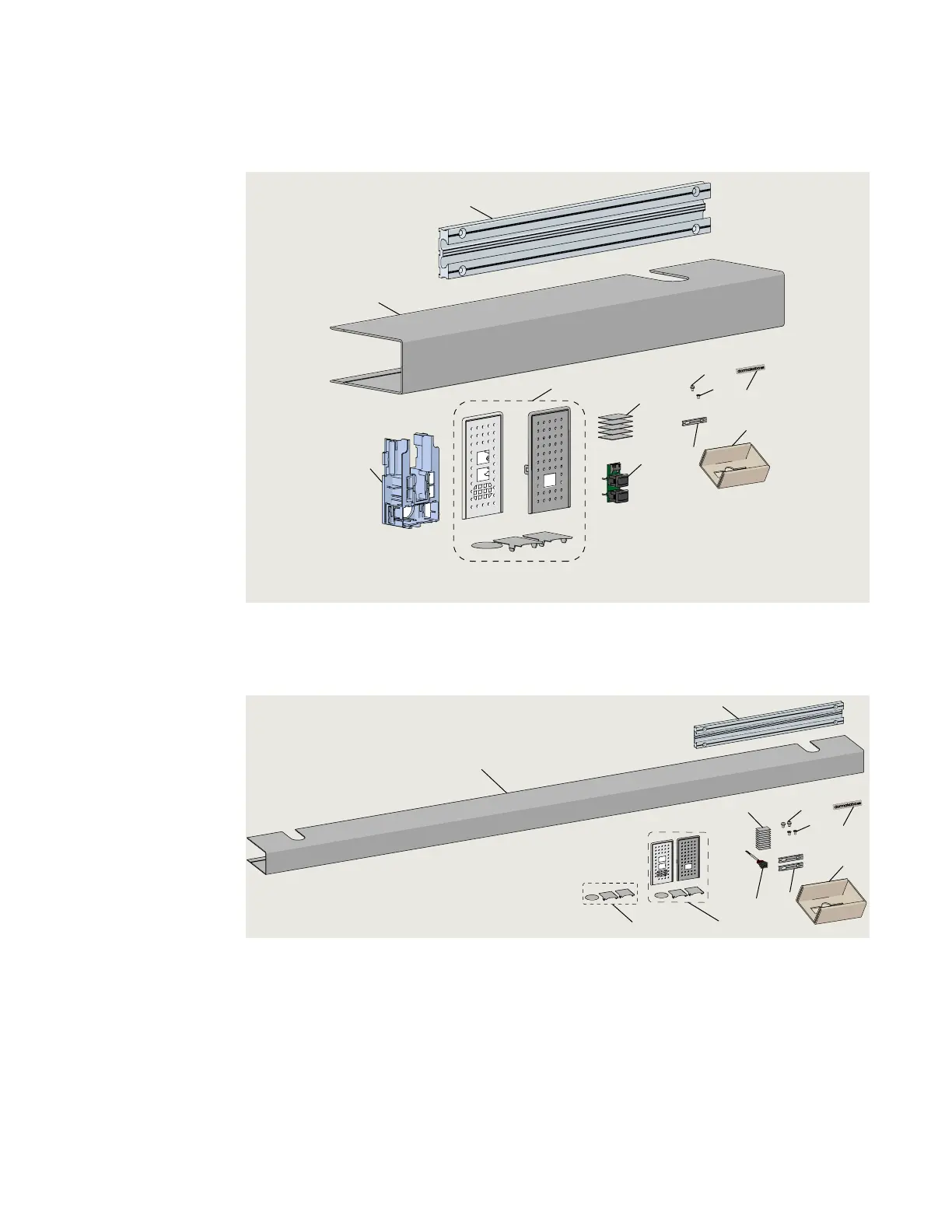

Fig. 2.6.2 Fine cover kit, professional pair HK3401-07X
.. Fine cover kit, professional pair,
HK-X.
. Fine cover professional cover kits – option
Fig. 2.6.1 Fine cover kit professional single HK3401-05X
1 Fine cover single
HC3459-01X
3 End cap set
HC3466-01X
4 Backplate,
ED oper FC Ext,
HC3468-010
6 Cover bracket
HC3481-010
7 Mtg, extr
connector
HC3491-010
9 dormakaba logo
plate HD4613-010
10 M6 x 10 mm SHS
with washer
DF3495-01Z
11 M6 x 10 mm PFHS,
HF3496-01Z
13 Logo placement
template
HP4613-001
14 Mode switches
with cable
HX3482-010
15 Wire retainer
HX3493-010
.. Fine cover kit professional single,
HK-X.
1
6
15
14
3
4
7
10
11
9
13
template
HP4613-001
17 Program switch,
3340 mm cable,
HX3486-030
18 Wire retainer
HX3493-010
2
4
17
7
10
11
9
5
18
13
3
