Dormakaba ED100LE - Axle Extensions, ED100 LE; Push Arm Door Stop - Option; Fine Cover Kit - Basic

6
ED100LE 02-2021DL4616-001
dormakaba ED100LE operator – Fine cover
Installation Instructions
Chapter 2
. Axle extensions, EDLE

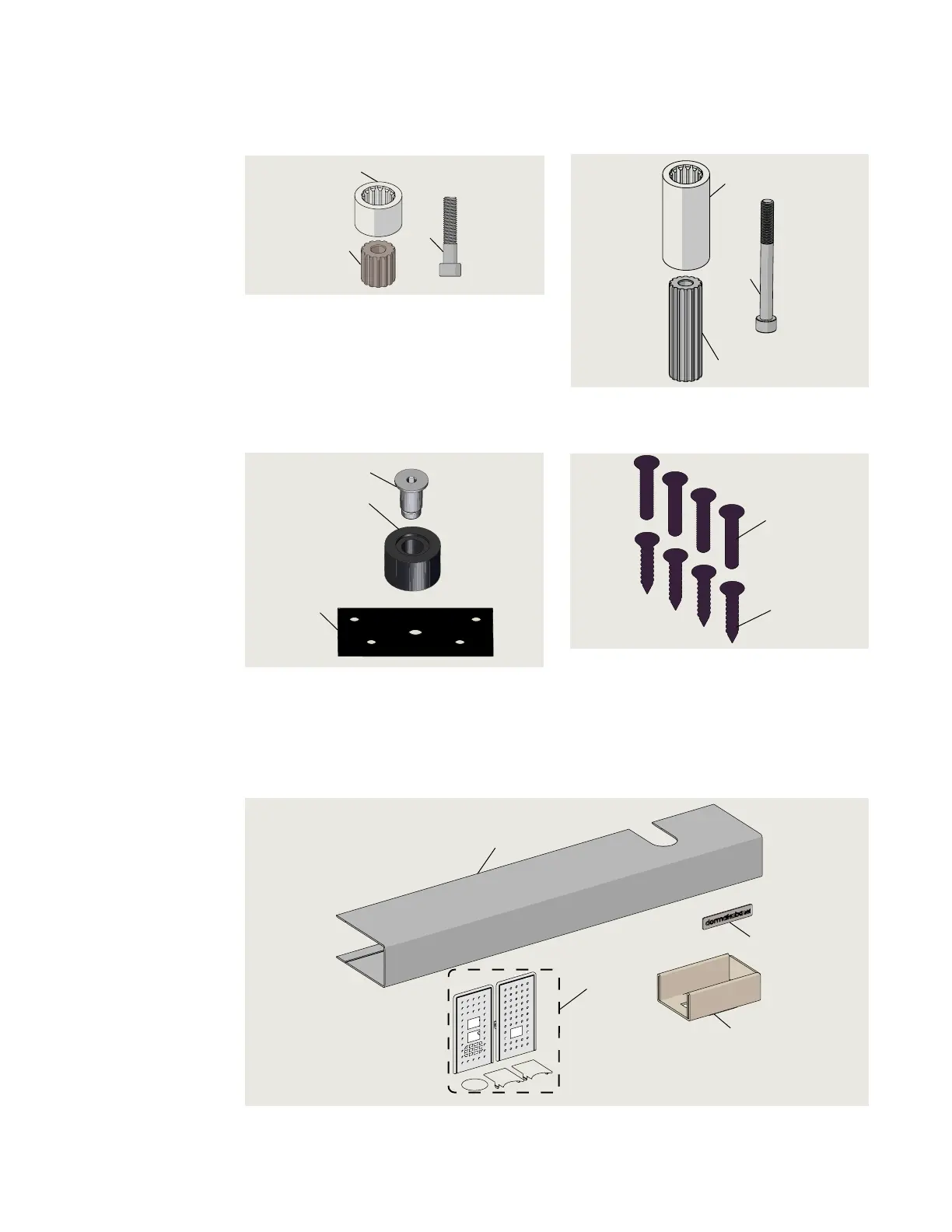

Fig. 2.3.1 20 mm axle extension kit
HC4679-001
Fig. 2.3.3 60 mm axle extension kit
HC4679-003
1 20 mm axle
extension sleeve
2 20 mm axle
extension
3 M8 -1.25 x 40
SHCS
7 60 mm axle
extension sleeve
8 60 mm axle
extension
9 M8 -1.25 x 80
SHCS
. Push arm door stop - option
Fig. 2.4.1 Door stop assembly HS4633-001
2 1/4" thick base
plate
DC4633-001
3 Rubber bumper
DC4633-003
4 Shoulder screw
DC4633-004
5.1 1/4 x 1 1/4" Phillips
FHS, black oxide,
SS
5.2 No. 14 x 1 1/4"
Phillips FHS for
sheet metal, zinc
plated steel
Fig. 2.4.2 Mounting screw kit HC4633-005
2
3
4
5.1
5.2
. Fine cover kit – basic
.. Fine cover kit, basic HK-X.
4
3
11
15
3 Fine cover single,
26.75"
HC3459-01X
4 End cap set
HC3466-01X
11 dormakaba logo
plate HD4613-010
15 Logo placement
template
HP4613-001
Fig. 2.5.1 Fine cover kit, basic HK3401-01X
7
8
9
1
3
2
