dormakaba ED100LE operator – Fine cover
Installation Instructions
Chapter 16

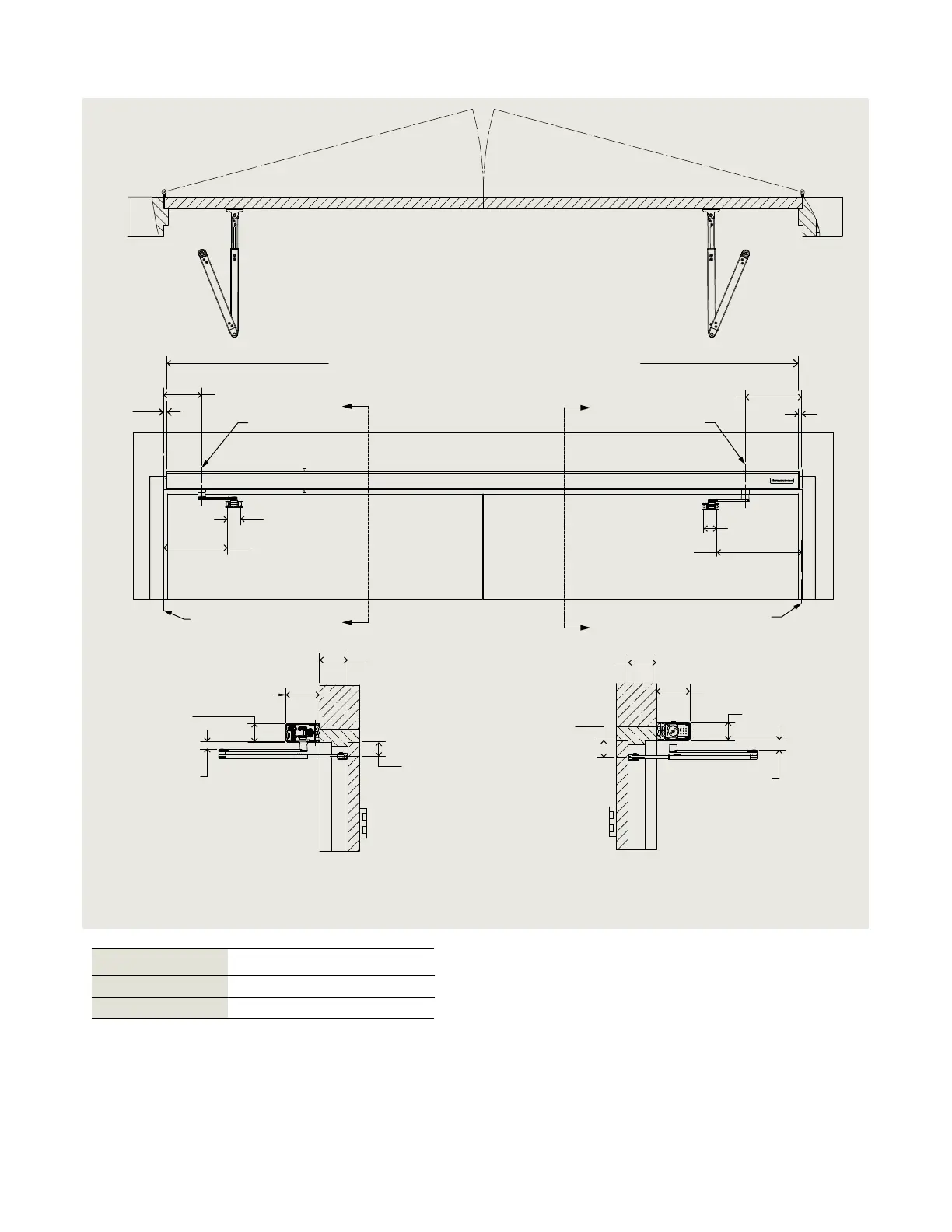

Fig. 16.1.2 ED100LE Companion push
ED100LE COMPANION PUSH
A
Cover length = centerline of hinge pin - 1 1/8” [28.5]
Cover and axle end are fixed and cannot be extended
Axle centerline
A
5 3/4”
[146.3]
9/16”
[13.50]
FIXED
9 5/8”
[245.25]
From edge of door
1 15/16”
[50]
Centerline of hinge pin
B
B
Axle centerline
8 9/16”
[216.70
9/16”
[13.50]
FIXED
12 3/4”
[324.64]
From edge of door
1 15/16”
[50]
Centerline of hinge pin
Arm clearance
(bottom of operator)
2 3/4”
[70]
5 1/16”
[129]
Shoe height
(bottom of operator)
Reveal
0 - 8 3/4”
[222]
Section B-B
Closer side
Reveal
0 - 8 3/4”
[222]
5 1/16”
[129]
Arm clearance
(bottom of operator)
2 3/4”
[70]
Shoe height
(bottom of operator)
Section A-A
Operator side
Axle extension
Push shoe height
13/16” [20] 2 1/2” [63.5]
2 3/8” [60]
4” [103]
Push arm
clearance
1 3/8” [36]
3” [76]
