134 10099206-AA

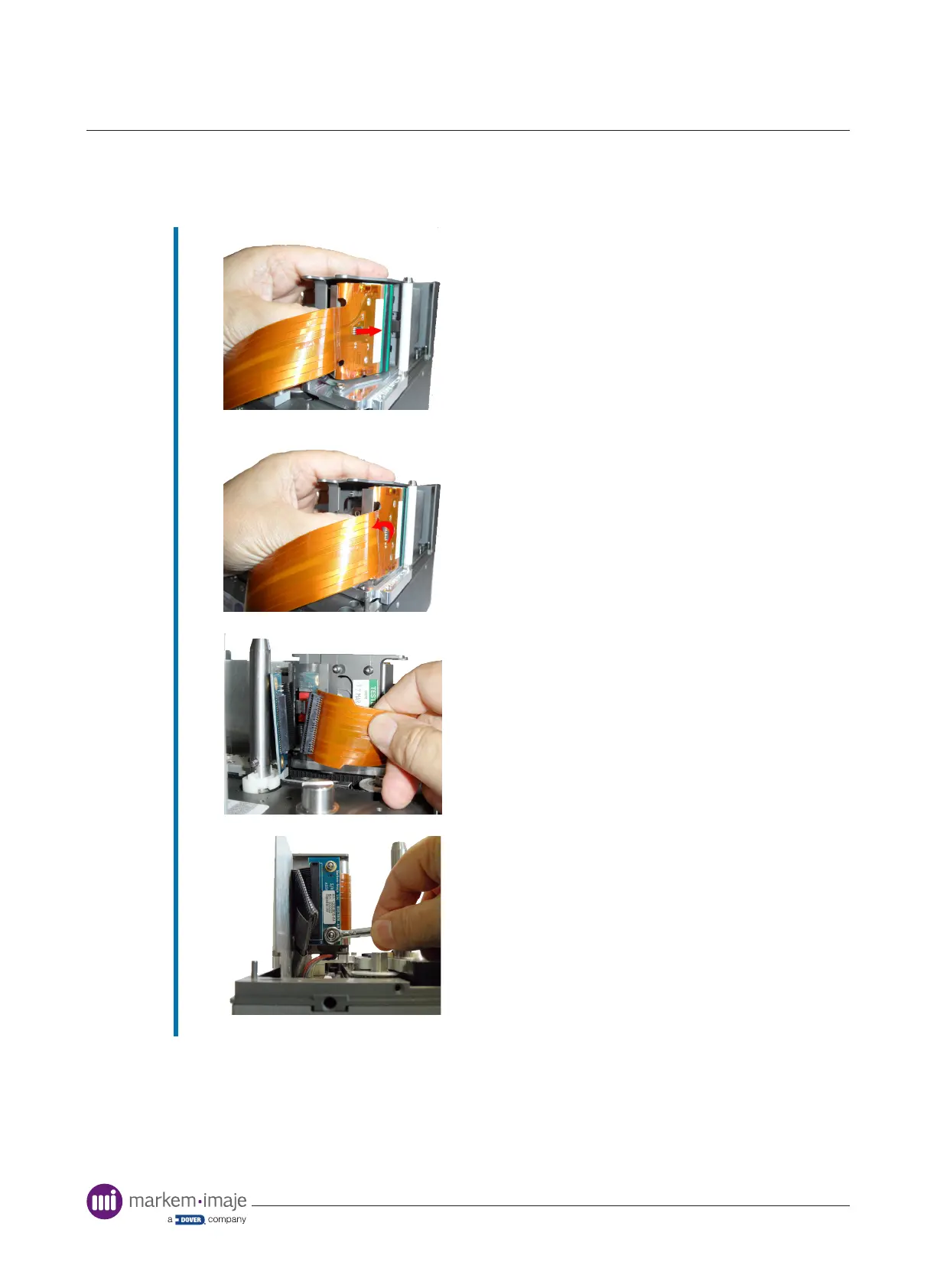

 Fitting the New Printhead (Shuttled Printer)
1
Push the printhead forward towards the
peel roller
2
Rotate the rear of the printhead towards the
print module
3
Connect the printhead cable to the print
module interface pcb
4
Fasten the print module interface pcb
Maintenance
