28
Instructions for use
|
Atlan A300, A300 XL, A3
50, A350 XL SW 1.0n
Overview
3.1.1
1

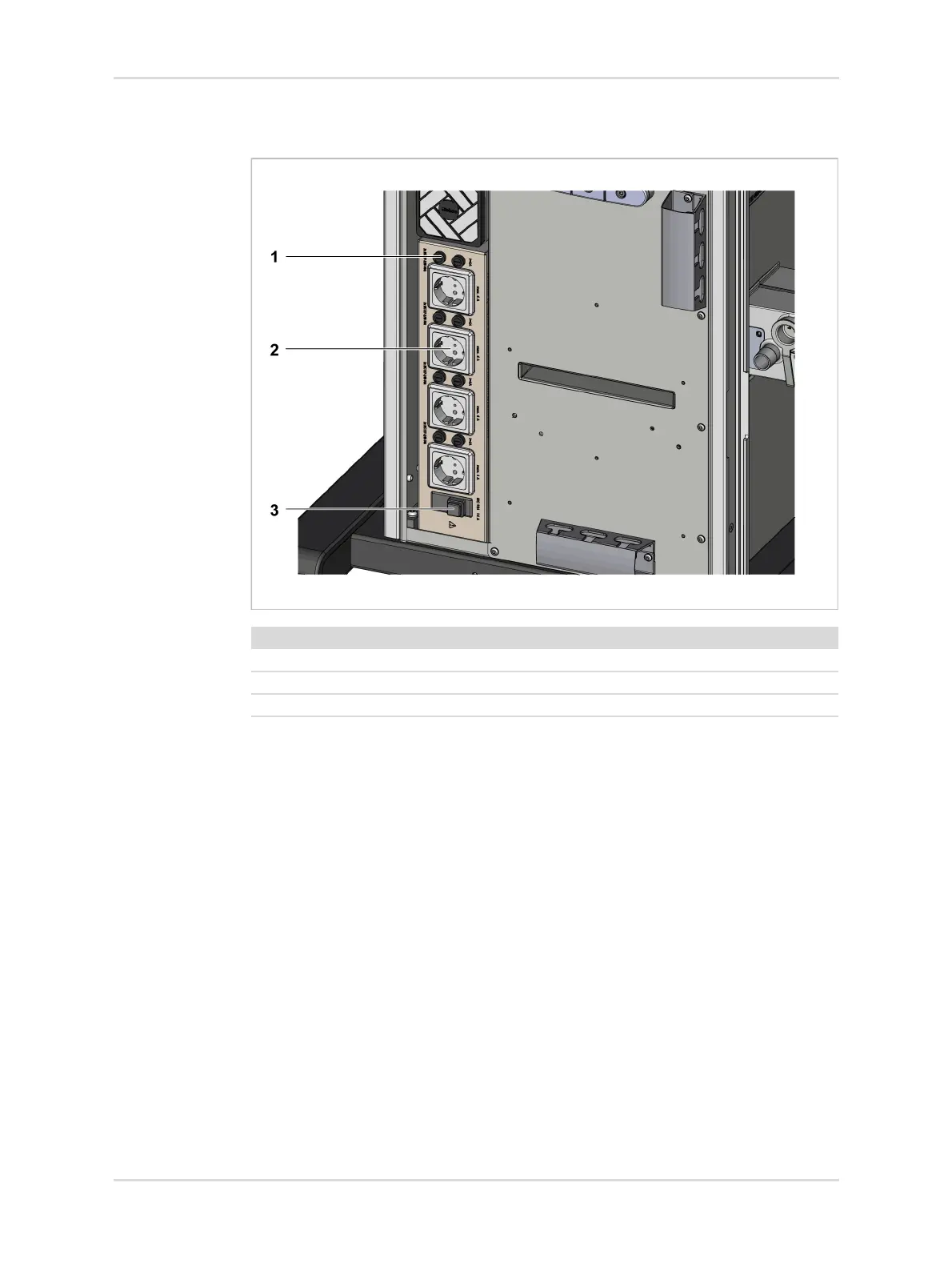

Auxiliary power sockets (option)
36477
No.
Designation
1
Fuses, 2
e
ach per po
wer socke
t
2
Auxiliary power sockets, 4
pcs.
3M
a
i
n
f
u
s
e
27
29
Table of Contents
Default Chapter
3
Table of Contents
3
1 Information about this Document
7
Typographical Conventions
7
Use of Terms
7
Illustrations
7
Trademarks
7
2 Safety-Related Information
9
Intended Use
9
Indications
9
Contraindications
9
Environments of Use
10
Essential Performance Features
10
User Group Requirements
11
Information on Safety Instructions and Precautionary Statements
11
Safety Instructions
12
Additional Information
14
3 Overview
15
Hardware
15
Functional Scope
31
Gas Flow Diagram
42
4 Assembly and Preparation
45
Safety Instructions
45
Mounting of Accessories
52
Before First Operation
55
Intrahospital Transport
59
Gas Supply
59
Connecting to the Gas Scavenging System
65
Preparation for an Operation Day / after Cleaning and Sterilization
67
Selecting and Connecting Patient-Specific Accessories
67
Connecting and Replacing Consumables
75
5 Operating Concept
79
Screen
79
Color Concept
83
Selecting and Setting
84
6 Getting Started
86
Safety Instructions
86
Turning on the Device
86
Checking the Device Configuration
86
Checking the Operational Readiness
87
Emergency Start-Up
88
7 Operation
89
Safety Instructions
89
Starting the Therapy
93
Adjusting the Therapy
96
Special Forms of Therapy
100
Using Fields with Special Functions
103
Customizing the Screen Display
107
Displaying Additional Data
113
Setting the Volume
115
Adjusting the Alarms
116
Changing the Patient Data
119
Exporting Data
119
Other Settings
120
Ending the Therapy
122
Change of Patient
124
8 Tests
126
Status of the Device Functions
126
Available Test Types
127
Performing the Tests
127
Checklist in the Walk-Through Mode
136
9 Ending Operation
151
At the End of the or Day
151
Storing the Device
151
Disconnecting the Mains Power Supply
151
10 Alarms
152
Safety Instructions
152
Displaying Alarms
152
Response to Alarms
154
Adopting Alarm Settings When Changing the Ventilation Mode
159
Alarm Delay and Alarm Escalation
160
Activation of Alarms after Breath Detection
163
Intelligent Alarm Behavior
164
11 Configuration
165
Device Settings
165
Setting the Date and Time
165
Specifying the Start Settings
166
Transferring Device Configurations
181
Activating Software Options
182
Overview of Configurable Screen Contents
184
12 Troubleshooting
190
Leakage
190
Power Supply Failure
191
Failure of the Gas Supply
192
Failure of Fresh-Gas Delivery (Electronically Controlled Gas Mixture)
194
Failure of the Piston Ventilator
195
Failure of the O 2 Sensor
195
Flow Measurement Failure
198
Screen Fault or Failure of the Graphical User Interface
198
Complete Failure
198
Problems with the Active Anesthetic Gas Receiving System (AGS)
199
Cylinder Pressure Reducer
201
Support Request
201
Alarm - Cause - Remedy
201
13 Reprocessing
222
Safety Instructions
222
Information on Reprocessing
223
Classifications for Reprocessing
224
Reprocessing List
225
Reprocessing Procedures
225
Preparation
227
Surface Disinfection with Cleaning
229
Disassembly
230
Disassembling the Breathing System
238
Machine Reprocessing
242
Fitting and Assembly
249
Preparation before the Next Use
258
Brief Instructions for Reprocessing
260
14 Service
262
Safety Instructions
262
Definition of Service Terminology
262
Inspection
262
Maintenance
265
Repair
265
15 Disposal
266
Safety Instructions
266
Disposing of the Device
266
Disposing of Accessories
266
16 Technical Data
267
Safety Instructions
267
General Information
268
Ambient Conditions
268
Fresh-Gas Delivery
269
Fresh-Gas Delivery with Electronically Controlled Gas Mixer
269
Fresh-Gas Delivery with Mechanically Controlled Gas Mixer
270
Ventilator
270
Breathing System
272
External Fresh-Gas Outlet
274
Anesthetic Gas Receiving System (AGS)
274
Active AGS
274
Passive AGS
275
Measuring Systems and Displays
275
Gas Measurement
279
Gas Measurement with
279
Gas Measurement with O
281
Sensor
281
Operating Characteristics
283
Interfaces and Ports
287
Relevant Standards
289
Diagrams
290
EMC Declaration
291
Device Combinations
293
Emission of High-Frequency Energy
293
Connections to IT Networks
294
Open-Source Software
297
17 Principles of Operation
297
Safety Instructions
297
Description of the Ventilation Modes
298
Description of the Ventilation Drive
307
Improving the CO 2 Measurement by Means of an HME Filter
308
Minimum O 2 Delivery
310
Influence of Patient Category, Weight, and Age on Device Behavior
311
Support of Infinity ID Accessories
312
Schematic Illustration of the Acoustic Signals
313
18 Annex
314
Abbreviations
314
Symbols
317
Product Labels
322
Overview of the Menu Structure
323
19 Password
325
Configuration Password for Atlan A300, A300 XL, A350, A350 XL Software 1.0N
325
Index
327
