Instructions for use | Atlan A300, A300 XL, A350, A350 XL SW 1.0n 29
Overview
3.1.12 Gas mixing unit
3.1.12.1 Gas mixing unit (electronically controlled)

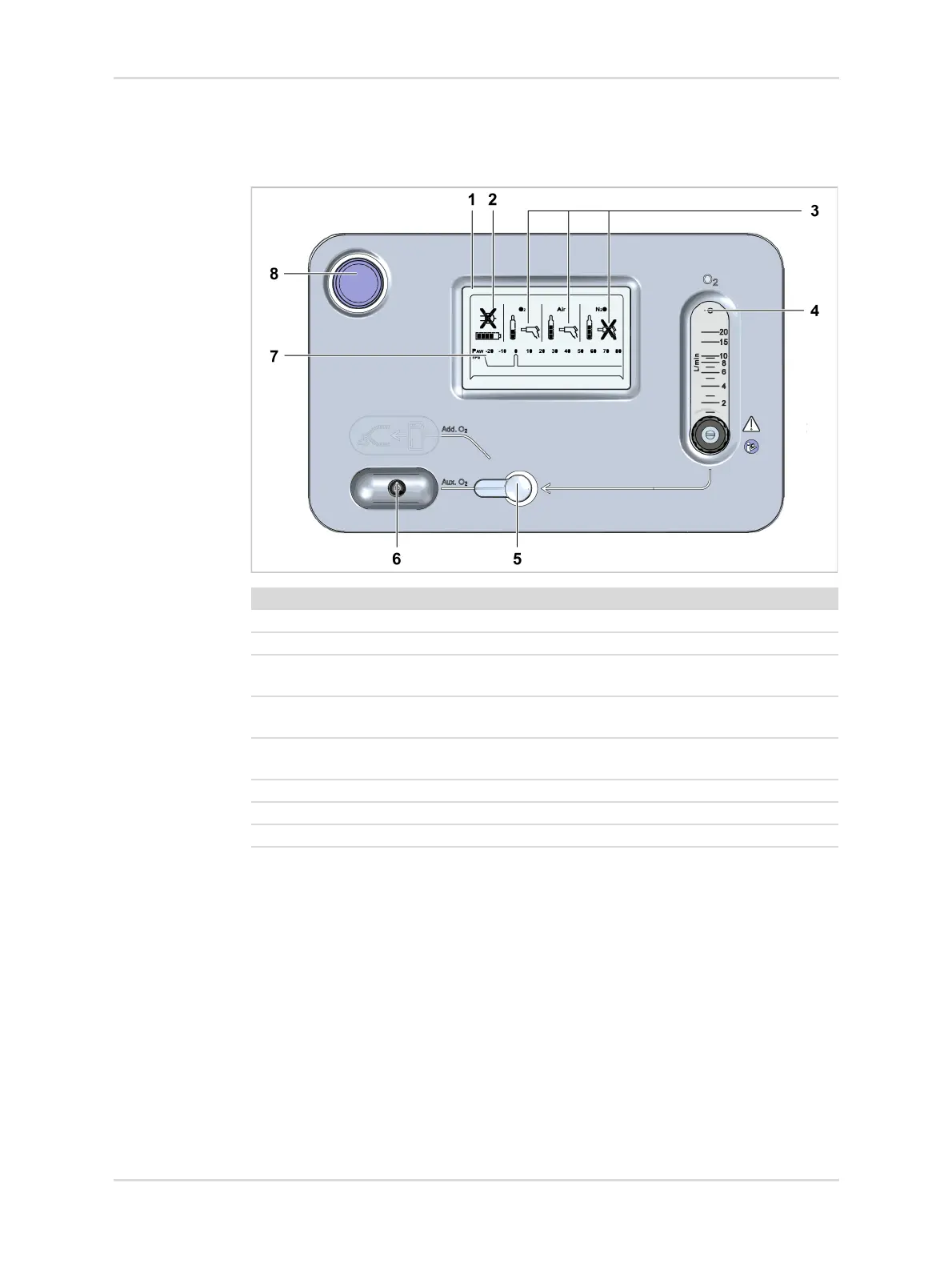

The explanation of the symbols can be found on page 317.
36479
No. Designation
1 Status display
2 Symbols for mains power supply and power supply from internal battery
3 Symbols for gas supply (O
2, Air, N2O or O2, Air) from central supply and gas
cylinders
4O
2 flowmeter (for O2 insufflation Aux. O2 and emergency O2 delivery
Add. O
2)
5O
2 switch (for switching between O2 insufflation Aux. O2 and emergency
O
2 delivery Add. O2)
6 Outlet for O
2 insufflation, e.g., for nasal cannula
7 Display of pressure in the internal breathing system, see page 18
8 O
2+ key (O2 flush)
