30 Instructions for use | Atlan A300, A300 XL, A350, A350 XL SW 1.0n
Overview

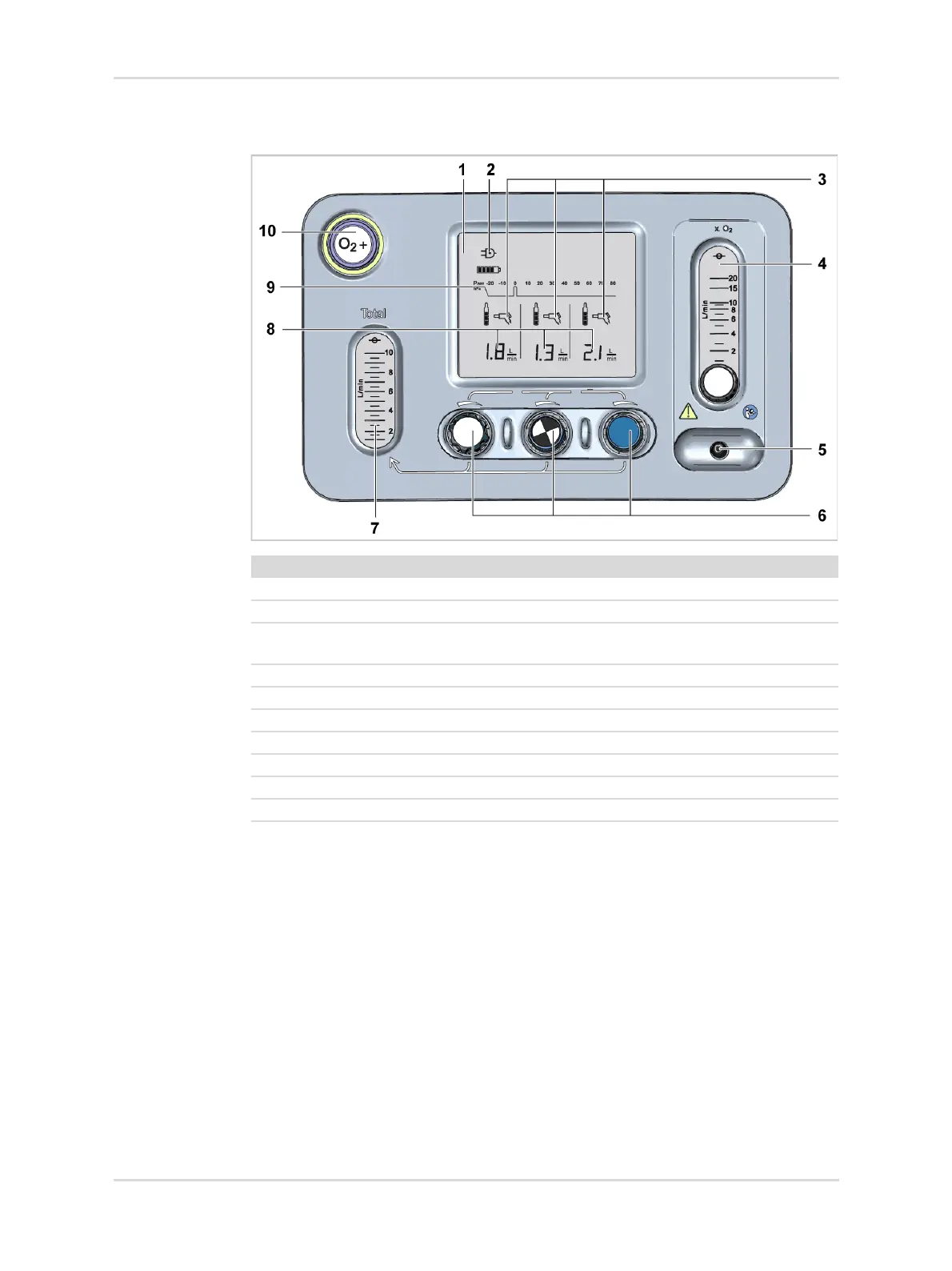

3.1.12.2 Gas mixing unit (mechanically controlled)
The explanation of the symbols can be found on page 317.
36480
No. Designation
1 Status display
2 Symbols for mains power supply and power supply from internal battery
3 Symbols for gas supply (O
2, Air, N2O or O2, Air) from central supply and gas
cylinders
4O
2 flowmeter (for O2 insufflation Aux. O2) (option)
5 Outlet for O
2 insufflation, e.g., for nasal cannula (option)
6 Flow control valves (O
2, Air, N2O or O2, Air)
7 Total flow tube
8 Display of the set fresh-gas flows
9 Display of pressure in the internal breathing system, see page 18
10 O
2+ key (O2 flush)
