Assembly and preparation
3. Connect the compressed gas hoses to the terminal units.
4. Check if all hoses are correctly connected. Using the symbols on the status
display, check that the gas supply is established (see page 29).
4.5.2 Connecting the gas cylinders
The connectors on the gas cylinders and pressure reducers must be undamaged
and free from dust, particles, and grease. Otherwise, there is risk of fire.
When handling pressure reducers, follow the relevant national laws and
regulations.
4.5.2.1 Connecting gas cylinders with screw connections
1. WARNING
Danger to the patient and user
If the strain relief for the compressed gas hoses is not used, the device may be
damaged.
► Use the strain relief for the compressed gas hoses.
WARNING
Risk of fire
Ignition sources together with oxygen can cause fires.
► Do not position oxygen sources in the vicinity of ignition sources, e.g.,
electrical connectors.
► Always fit the oxygen cylinder in the right-hand fixing position on the rear.

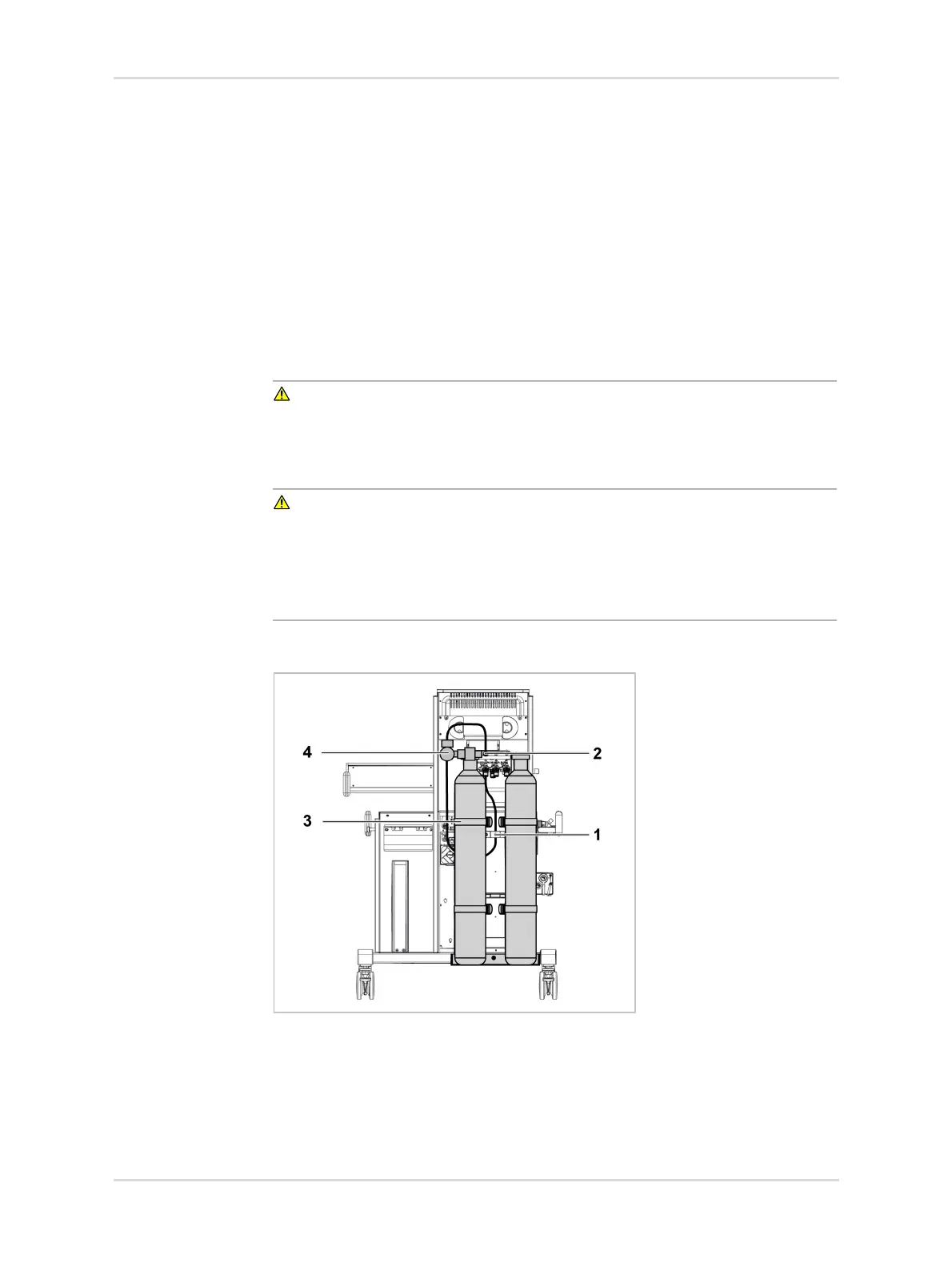

Insert the compressed gas hoses into the strain relief (1). Tighten the strain
relief.
2. Check that the pressure measuring lines above the gas inlets are correctly
connected (2).
3. Place the gas cylinders (3) in the gas cylinder holders. Secure with hook-and-
loop straps.
36490
