62 Instructions for use | Atlan A300, A300 XL, A350, A350 XL SW 1.0n
Assembly and preparation

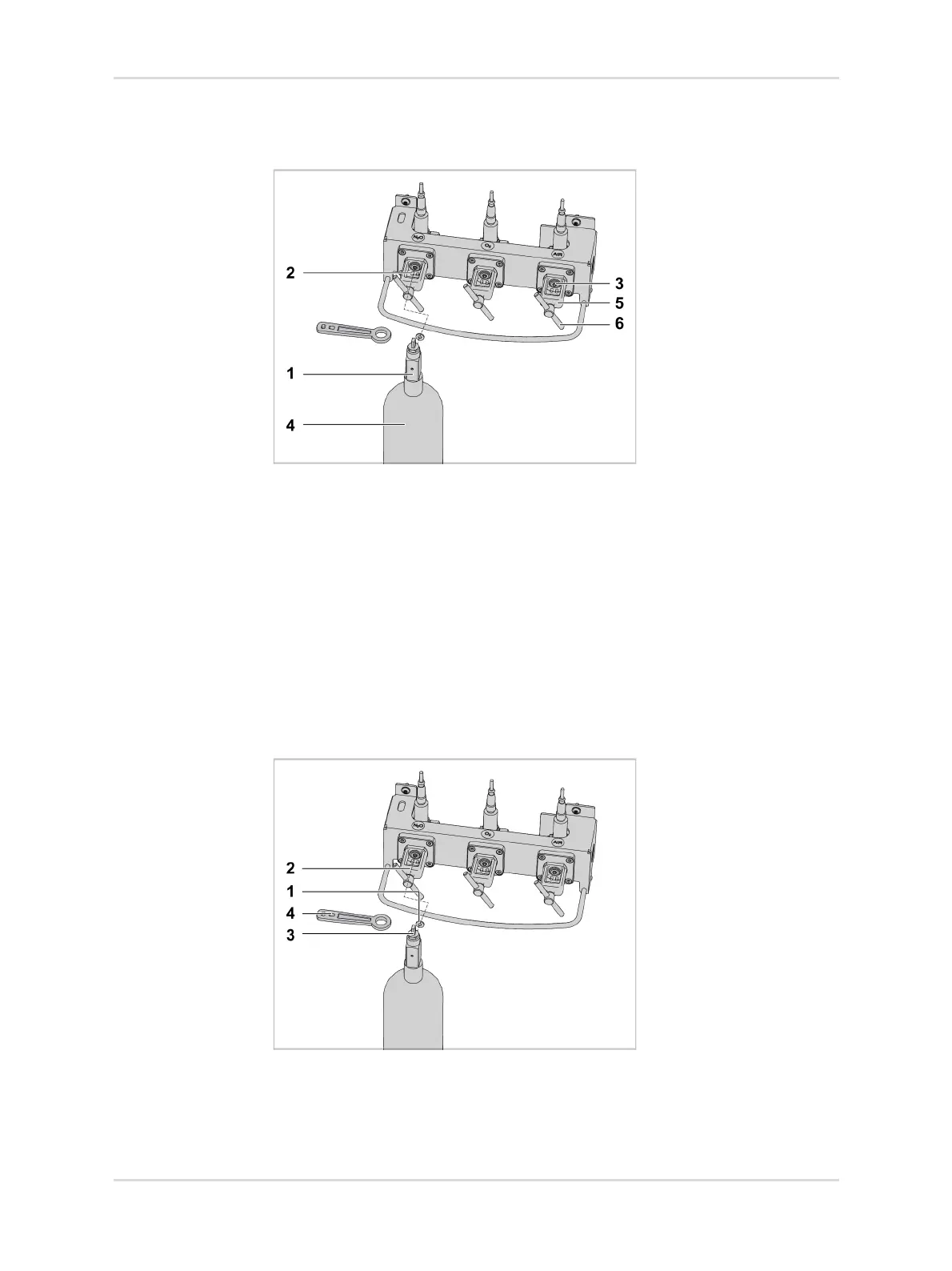

Fitting the gas cylinders
1. Remove the protection cap from the head of the cylinder (1).
2. Make sure that both pin-index pins (2) are present below the gas inlet (3).
3. Align the gas cylinder (4) so that the pin-index holes on the head of the
cylinder (1) are pointing towards the pin-index pins (2).
4. Insert the head of the cylinder (1) into the cylinder holder (5) from below.
5. Allow the pin-index pins (2) to engage in the pin-index holes.
6. Turn the handle (6) clockwise until the threaded stud is slightly screwed into the
visible recess on the head of the cylinder.
Align the gas cylinder (4) so that it is hanging vertically.
7. Tighten the handle (6).
8. Secure the gas cylinders (4) with hook-and-loop straps (not shown here).
Replacing the gas cylinder
1. Remove the old sealing washer (1).
2. Insert a new sealing washer (1) on the cylinder holder (2).
3. Continue with fitting the gas cylinders, see "Fitting the gas cylinders".
If required, the gas cylinder valve (3) can be opened with the supplied wrench (4).
3649140163
