Dräger Infinity Gamma Series

Multigas
VF4 Infinity Gamma Series Page 14-3
Connections

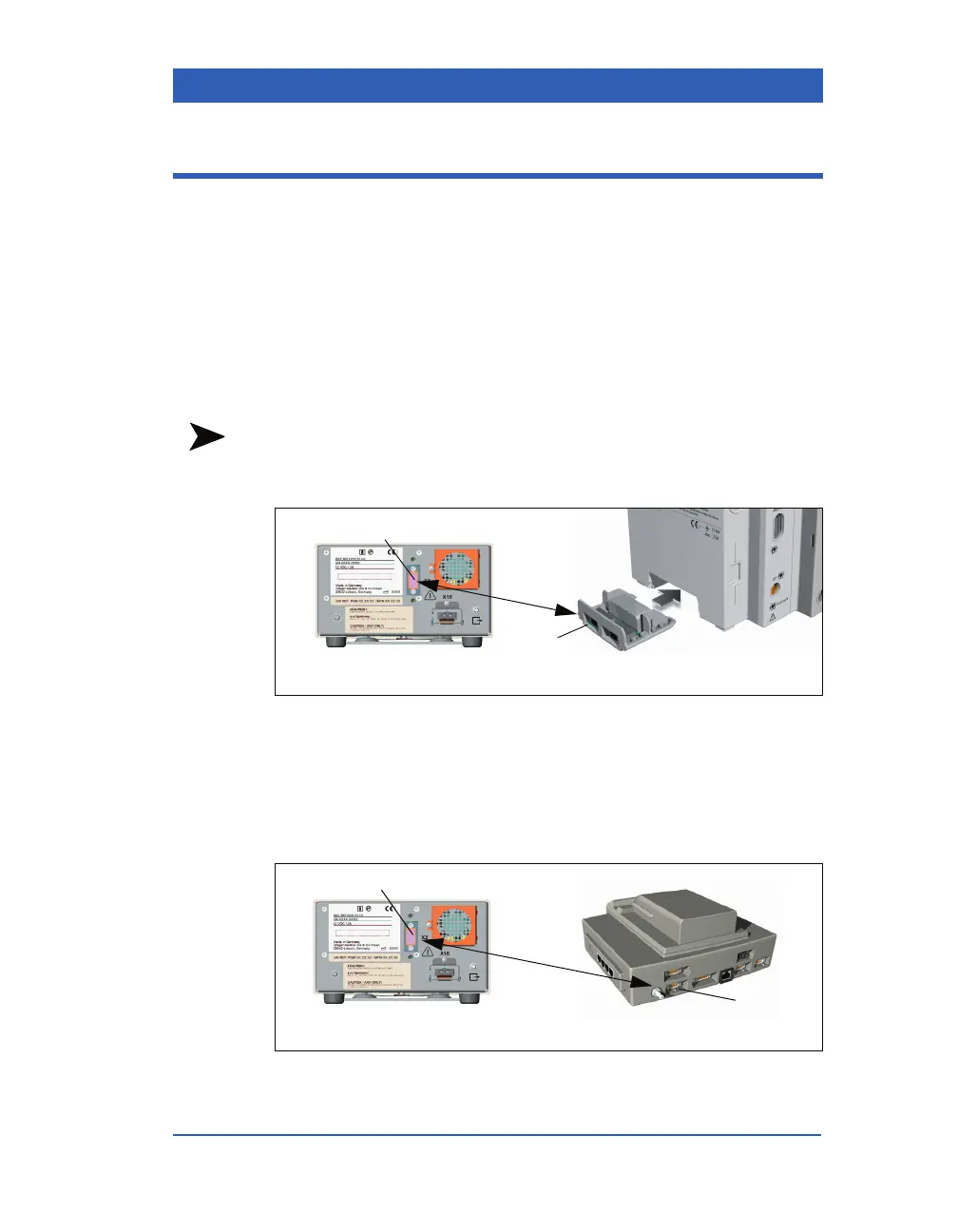

Gamma XL with Scio
Standalone Monitor
Connect the intermediate cable’s 15-pin serial connector to con-
nector X2 on the back of the Scio module. Connect the cable’s
other end to connector X5 on the monitor’s rear-panel interface
plate.
NOTE: When the Scio module is connected to the monitor’s inter-
face plate, data collection via the export protocol is not available.
Networked Monitor
Connect the intermediate cable’s 15-pin serial connector to con-
nector X2 on the back of the Scio module. Connect the cable’s
other end to connector X5 on the Infinity Docking Station (IDS).
X2 (15 pin)
X5
Scio Module (back panel) Gamma XL Interface Plate
X2 (15 pin)
X5
Scio Module (back panel) IDS (back panel)
