The cable used in the system shall comply with the following parameters:
- loop resistance R
C
15 Ohms/km to 150 Ohms/km,
- loop inductance L
C
0,4 mH/km to 1 mH/km,
- capacitance C
C
45 nF/km to 200 nF/km,
- maximum length of each spur cable 60 m in IIC and IIB,
- maximum length of each trunk cable, including the length of all spurs,
1 km in IIC and 5 km in IIB
All intrinsically safe wiring shall be kept separate from non-
intrinsically safe wiring. Refer to Article 504 of the National Electrical Code.
Notes
1. FISCO power supply must be installed as instructed by the
Manufacturer´s Control Drawing.
2. Selected FISCO power supply shall be intrinsically safe outputs for
Class I, Div. 1, Groups A-D, Class II, Div. 1, Groups E-G.
3. The circuits are limited to overvoltage category I/II/III (non mains/mains circuits)
as defined in IEC 60664-1.
4. This apparatus is suitable for use in a FISCO system in accordance to IEC 60079-25.

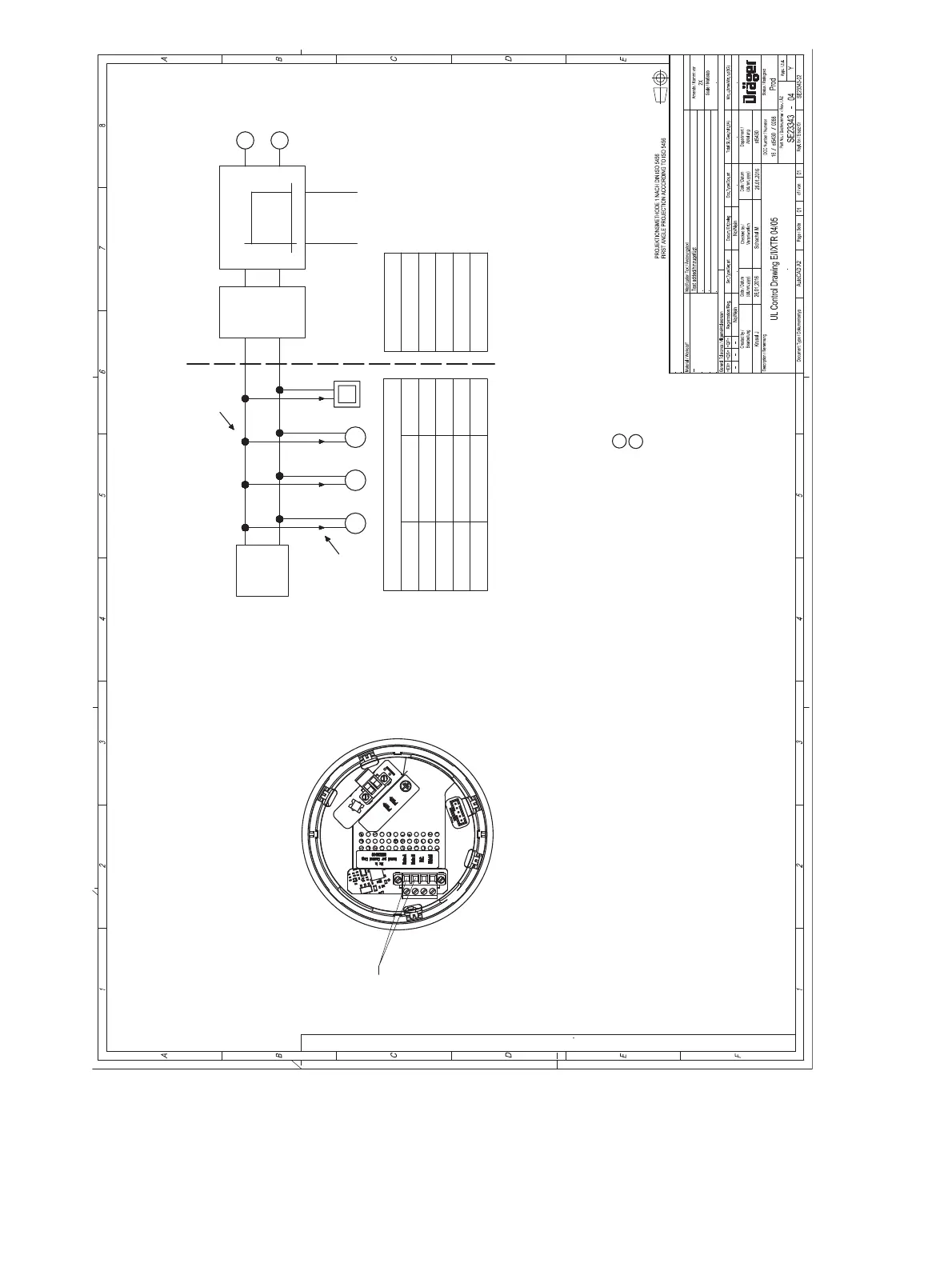

Key
1 Terminator
2 Power supply
3 Data
4 Hand held terminal
5 Field devices
6 Trunk
7 Spur
1
5
5
5
4
1
U
2
i
U
3
7
6
NON-HAZARDOUS AREAHAZARDOUS AREA
Class I, Div. 1, Groups A, B, C, D
Class II, Div. 1, Groups E, F, G
Ui
Ii
Pi
Ci
Li
17,5V
0.380A
5.32W
5nF
10H
Uo
Ui
Io
Ii
Po
Pi
Co
Ci + Cc
Lo
Li + Lc
+Cc
+Lc
Intrinsically Safe Apparatus
Associated Apparatus
E/I/XTR 04/05
5
04
04
