Dräger Polytron 8000 Series Technical Manual

20 Technical Manual | Dräger Polytron
®
8000 Series
Installation
5 Installation
5.1 Mechanical installation
The instrument can be mounted for measuring gases in ambient air or inside of a
duct/pipe.
1. Use M6 (1/4’’) bolts with hex socket caps to mount the enclosure to one of the
following options.
5.1.1 Pole Mount Kit
The enclosure is mounted to the Pole Mount Kit with the included 4 screws,
washers, and hexagon nuts.
The clamping rings for fastening the kit to a pole are not included.

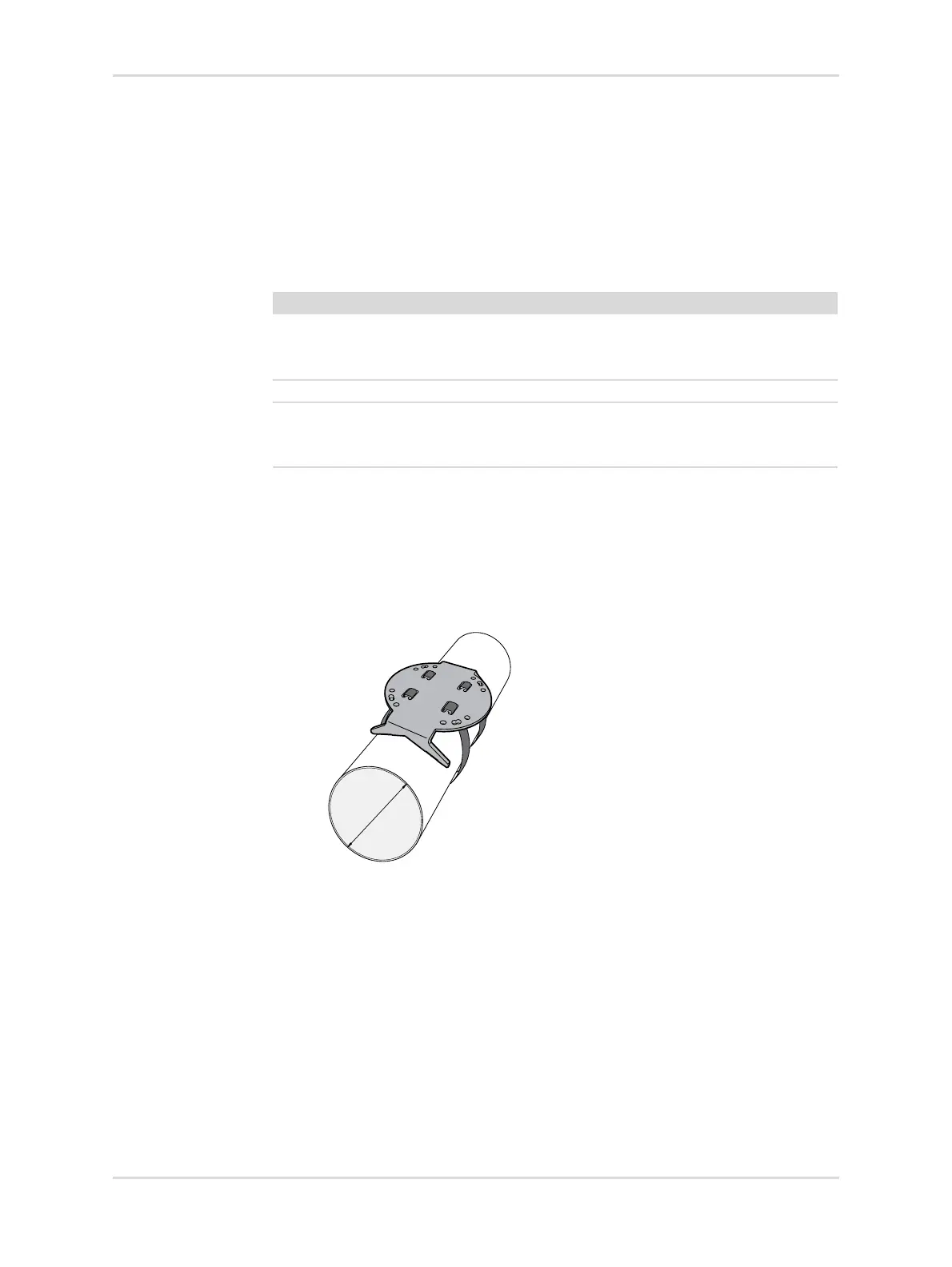

5.1.2 Duct Mount Kit
The enclosure is mounted to the Duct Mount Kit with the included 4 screws,
washers, and hexagon nuts.
The Duct Mount Kit can be fitted lengthwise or crosswise to the duct.
The clamping rings for fastening the Duct Mount Kit are not included.
5.1.2.1 Duct Mount Kit Polytron
®
8xx0 except Polytron
®
87x0 IR
For installation instructions refer to 9033235.
Option Accessory
Mounting on a flat surface Drilling template: 4544299
Additionally for Polytron
®
87x0 IR:
Spacer 6812617
Mounting on a pole Pole mount kit: 4544198
Mounting on a duct/pipe Duct mount kit: 6812725
For Polytron
®
87x0 IR::
6812300
44819
a
a 50 ... 155 mm
2‘‘ ... 6‘‘

Dräger Polytron 8000 Series Specifications

General

Ingress Protection	IP66/67
Detection Principle	Electrochemical, Infrared, Catalytic Bead
Gases Detected	Combustible gases, toxic gases, and oxygen
Display	LCD with backlight
Humidity Range	0 to 99% RH (non-condensing)
Housing Material	Stainless steel
Output Signal	4-20 mA, HART, RS-485 Modbus
Power Supply	10 to 30 V DC
Certifications	ATEX, IECEx, CSA
Temperature Range	-40 °C to +65 °C (depending on sensor)
