Dräger Polytron 8000 Series

Technical Manual | Dräger Polytron
®
8000 Series 35
Remote sensors

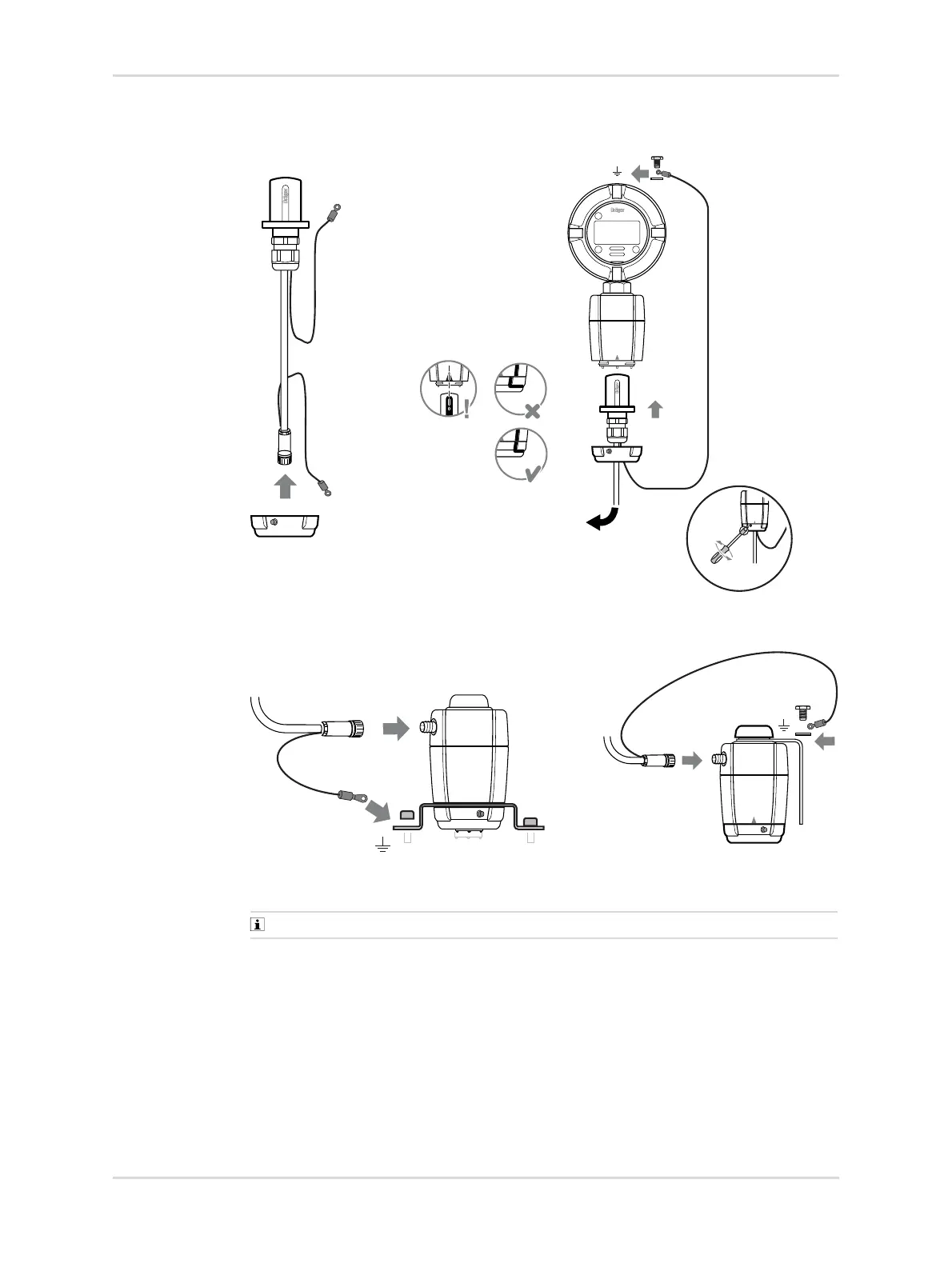

6.2.2 Connecting the EC sensing head to the transmitter
Fig. 11 Connection of EC sensing head remote cable
Fig. 12 Grounding of EC sensing head remote
Observe control drawing included in annex.
6.3 Installation of remote sensors (except EC sensors)
A remote wiring kit connects the Junction Box Ex d with the transmitter. The remote
wiring kit contains 2 wiring harnesses. 1 harness is already installed in the Junction
Box Ex d. The other kit must be installed in the transmitter.
Both harnesses have marks on the terminals (1b, 1a, 2, 3a, 3b).
 Connect the terminals to their related counterparts (e. g. 1a<->1a,...).
4104641041
1.
2.
1
AB
AB
