Dräger Polytron 8000 Series

34 Technical Manual | Dräger Polytron
®
8000 Series
Remote sensors
Bolts are not included. Use M6 (1/4’’) bolts to mount the duct adapter.

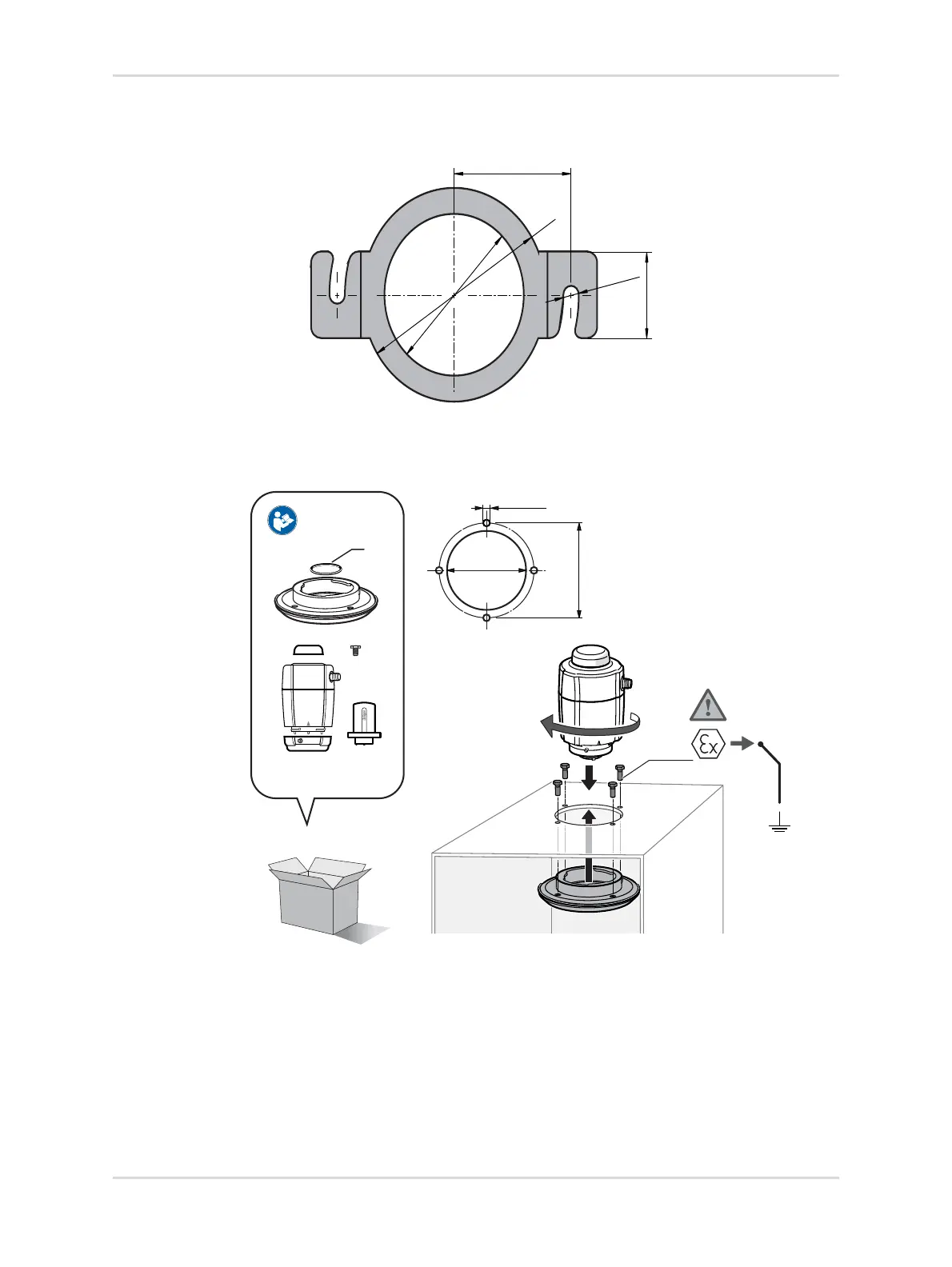

Fig. 9 Dimensions of the duct adapter
Process Adapter
Fig. 10 Overview of Process Adapter assembly
4481841044
a 47 mm / 1.85‘‘
b 74 mm / 2.91‘‘
c 56 mm / 2.2‘‘
d 6,2 mm / 0.25‘‘
e 30 mm / 1.18‘‘
a
b
c
d
e
x 4
90 33 340
A
Ø 70.5 mm
Ø 5.5 mm
Ø 84 mm
