Draytek Vigor2860 Series User Manual

Vigor2860 Series User’s Guide
15
1
1
.
.
3
3
H
H
a
a
r
r
d
d
w
w
a
a
r
r
e
e
I
I
n
n
s
s
t
t
a
a
l
l
l
l
a
a
t
t
i
i
o
o
n
n

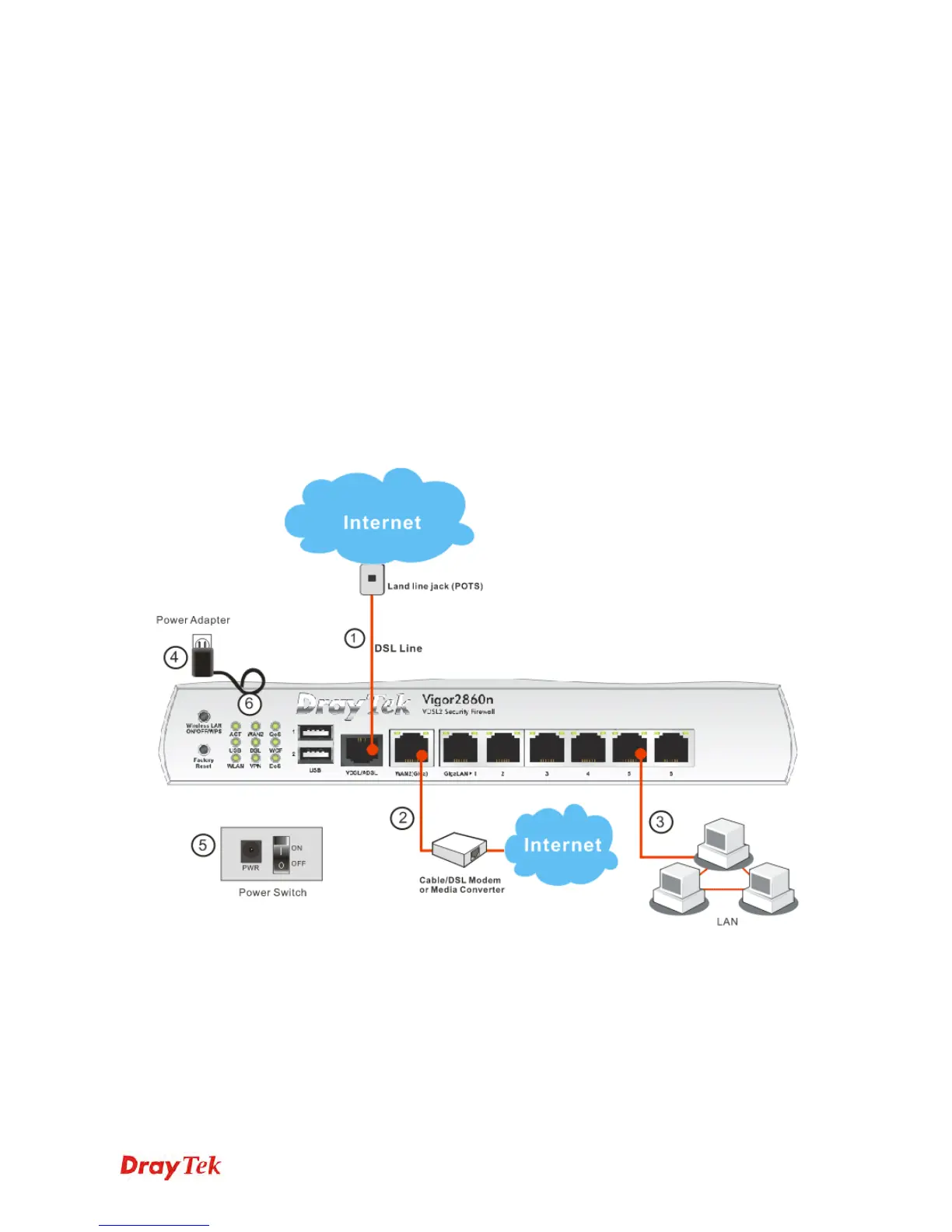

Before starting to configure the router, you have to connect your devices correctly.
1. Connect the DSL interface to the land line jack with a DSL line cable.
2. Connect the cable Modem/DSL Modem/Media Converter to the WAN port of router
with Ethernet cable (RJ-45).
3. Connect one end of an Ethernet cable (RJ-45) to one of the LAN ports of the router and
the other end of the cable (RJ-45) into the Ethernet port on your computer.
4. Connect one end of the power adapter to the router’s power port on the rear panel, and
the other side into a wall outlet.
5. Power on the device by pressing down the power switch on the rear panel.
6. The system starts to initiate. After completing the system test, the ACT LED will light
up and start blinking.
(For the hardware connection, we take “n” model as an example.)

Draytek Vigor2860 Series Specifications

General

Firewall Type	Stateful Packet Inspection (SPI)
VPN Support	IPSec, PPTP, L2TP, SSL VPN
DoS Protection	Yes
Intrusion Prevention System (IPS)	Yes
LAN Interfaces	4 x Gigabit Ethernet
User Authentication	Local, RADIUS, LDAP
VPN Tunnels	32
Management Interface	Web-based, CLI
Concurrent Sessions	50, 000
Content Filtering	URL Keyword Filtering, Web Content Filtering
