Draytek Vigor2860 Series User Manual

Vigor2860 Series User’s Guide
382
3
3
.
.
1
1
6
6
.
.
6
6
W
W
D
D
S
S
WDS means Wireless Distribution System. It is a protocol for connecting two access points
(AP) wirelessly. Usually, it can be used for the following application:
 Provide bridge traffic between two LANs through the air.
 Extend the coverage range of a WLAN.

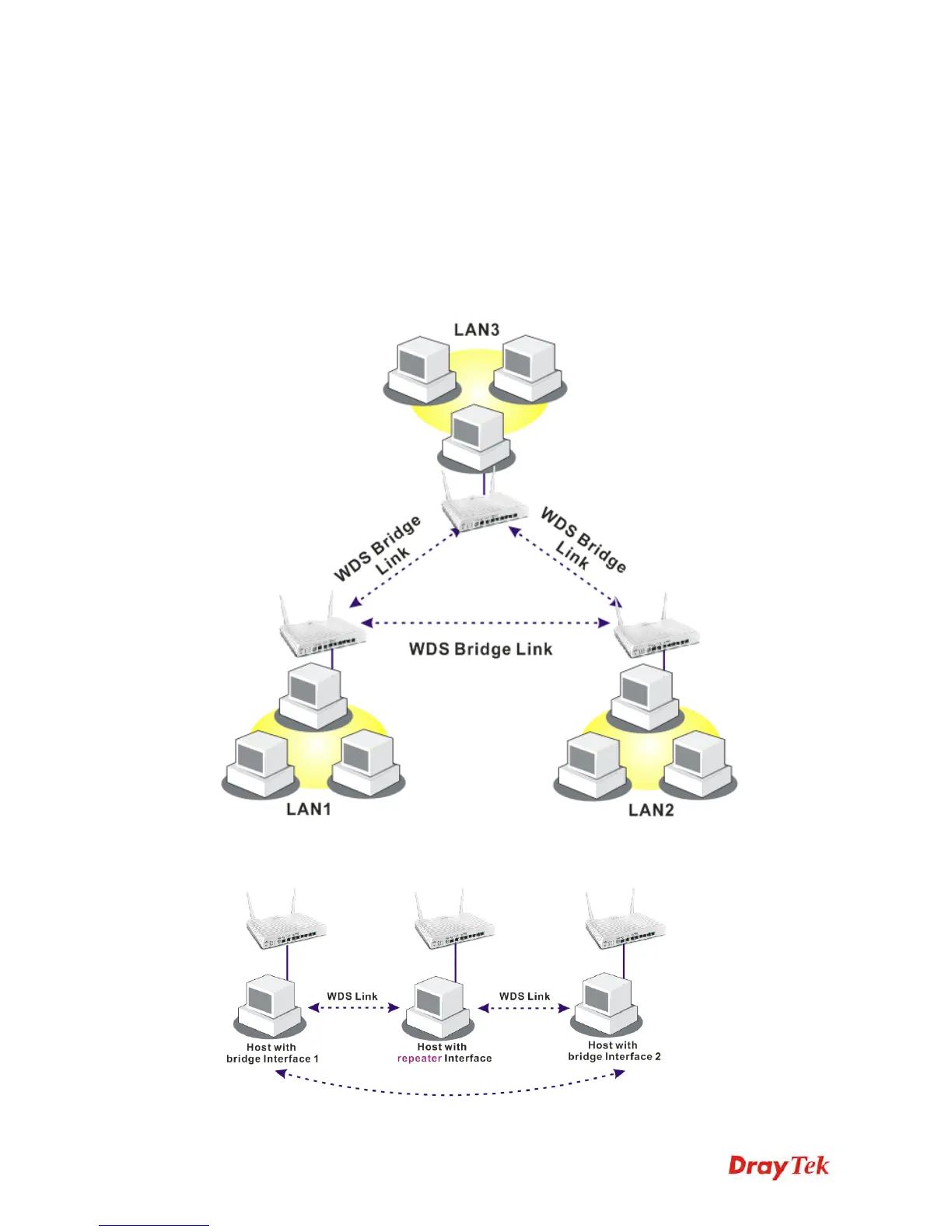

To meet the above requirement, two WDS modes are implemented in Vigor router. One is
Bridge, the other is Repeater. Below shows the function of WDS-bridge interface:
The application for the WDS-Repeater mode is depicted as below:

Draytek Vigor2860 Series Specifications

General

Firewall Type	Stateful Packet Inspection (SPI)
VPN Support	IPSec, PPTP, L2TP, SSL VPN
DoS Protection	Yes
Intrusion Prevention System (IPS)	Yes
LAN Interfaces	4 x Gigabit Ethernet
User Authentication	Local, RADIUS, LDAP
VPN Tunnels	32
Management Interface	Web-based, CLI
Concurrent Sessions	50, 000
Content Filtering	URL Keyword Filtering, Web Content Filtering
