Draytek Vigor2860 Series User Manual

Vigor2860 Series User’s Guide
383
The major difference between these two modes is that: while in Repeater mode, the packets
received from one peer AP can be repeated to another peer AP through WDS links. Yet in
Bridge mode, packets received from a WDS link will only be forwarded to local wired or
wireless hosts. In other words, only Repeater mode can do WDS-to-WDS packet forwarding.

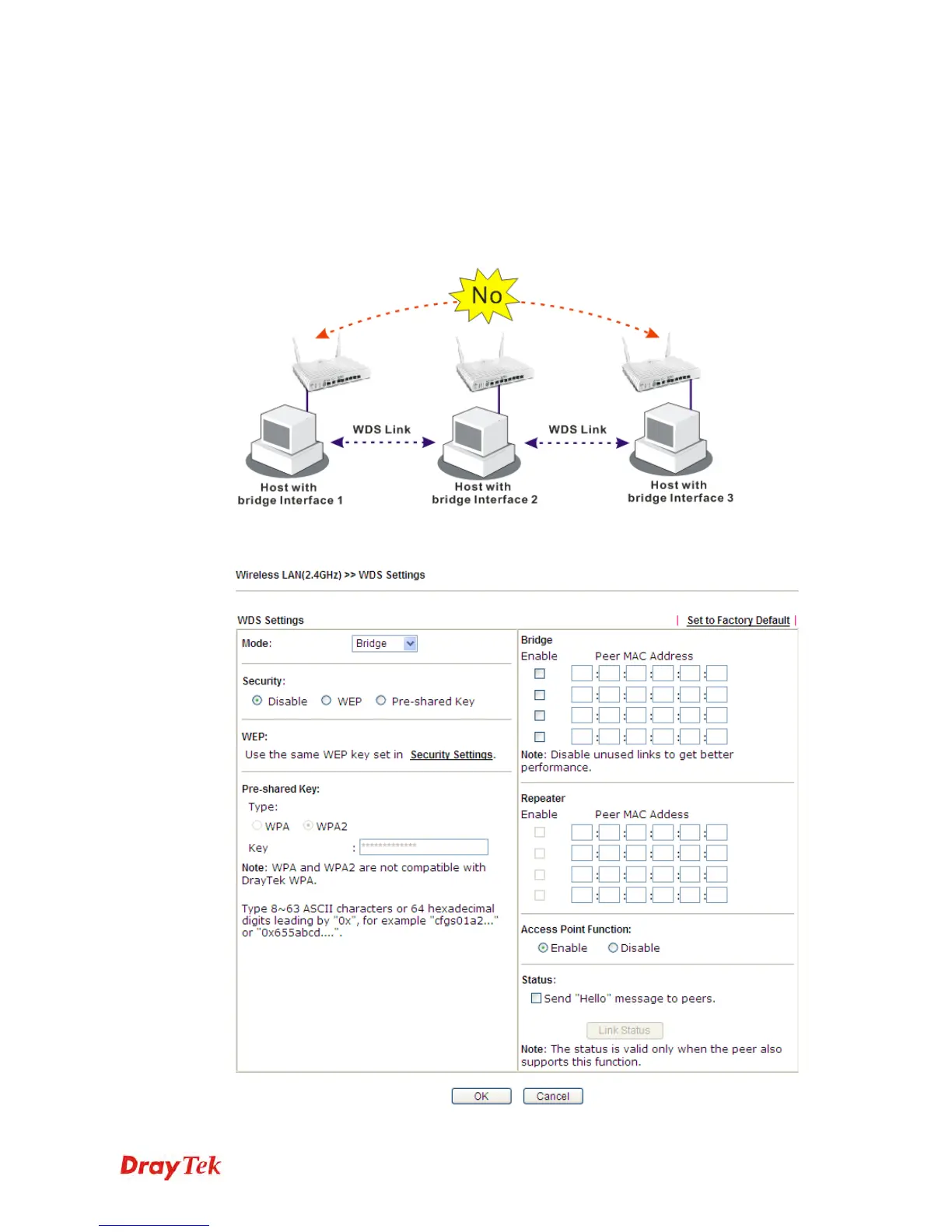

In the following examples, hosts connected to Bridge 1 or 3 can communicate with hosts
connected to Bridge 2 through WDS links. However, hosts connected to Bridge 1 CANNOT
communicate with hosts connected to Bridge 3 through Bridge 2.
Click WDS from Wireless LAN menu. The following page will be shown.

Draytek Vigor2860 Series Specifications

General

Firewall Type	Stateful Packet Inspection (SPI)
VPN Support	IPSec, PPTP, L2TP, SSL VPN
DoS Protection	Yes
Intrusion Prevention System (IPS)	Yes
LAN Interfaces	4 x Gigabit Ethernet
User Authentication	Local, RADIUS, LDAP
VPN Tunnels	32
Management Interface	Web-based, CLI
Concurrent Sessions	50, 000
Content Filtering	URL Keyword Filtering, Web Content Filtering
