This function is helpful to determine the best location for VigorAP in a room. A floor plan of a
room is required to be uploaded first. By dragging and dropping available VigorAP icon from
the list to the floor plan, the placement with the best wireless coverage will be clearly
indicated through simulated signal strengthen.

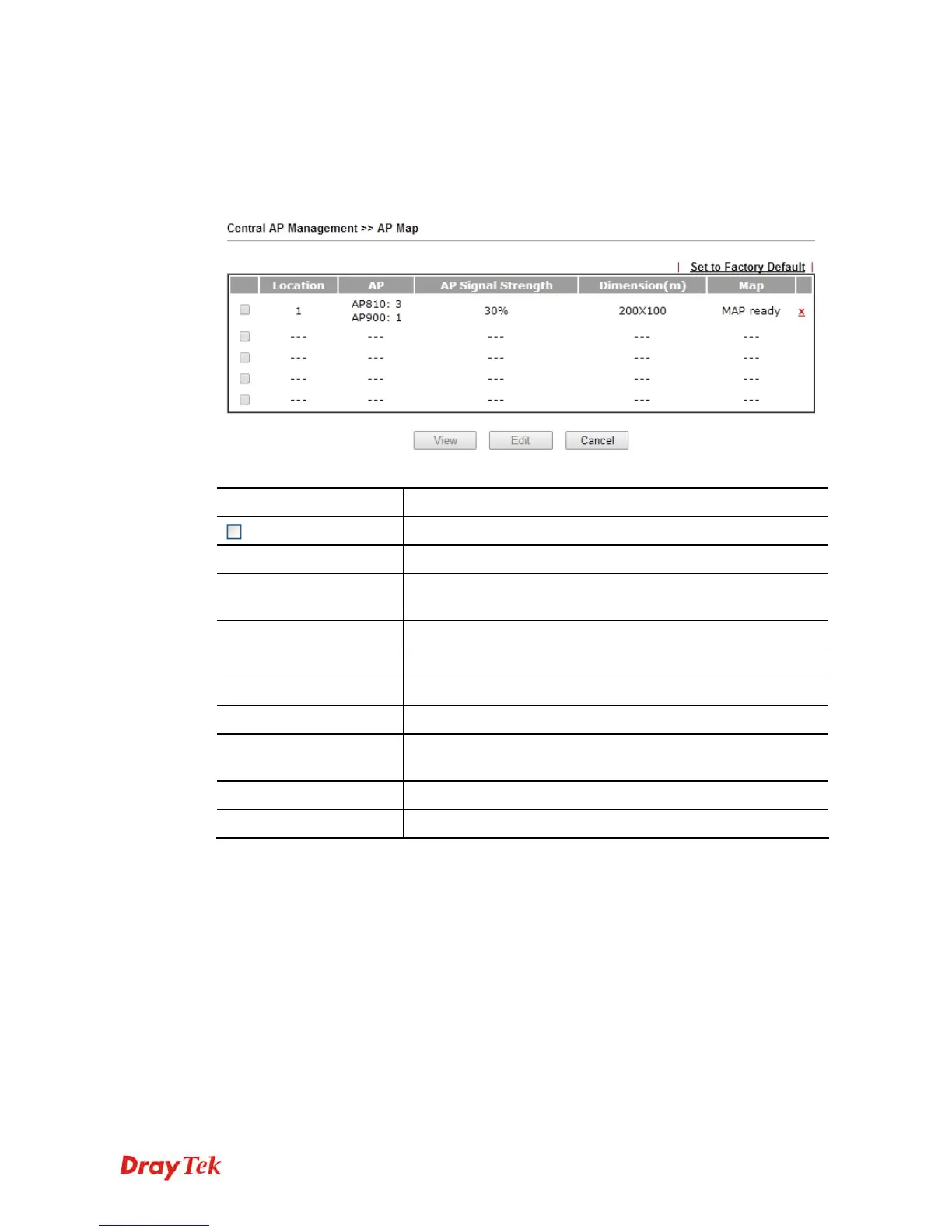

Available settings are explained as follows:
Item Description
Check the box to view or edit the AP Map.
Location
Display a brief description (e.g., ground, roof) of the AP Map.
AP
Display the model name and number of VigorAP located on
the AP map.
AP Signal Strength
Display the pre-defined signal strength of the AP map.
Dimension(m)
Display the width and length of the AP map.
Map
Display if the uploaded file for AP map is ready or not.
View
Click it to review the layout for the selected AP map.
Edit
Click it to modify the geographic settings for the selected AP
Map profile.
Cancel
Click it to cancel the configuration in such page.
Set to Factory Default
Click the link to clear current page configuration.
