Vigor2860 Series User’s Guide
329
Available parameters are listed as follows:
Item Description
VPN Management
Display Screen
Once the device is managed (controlled) by Vigor2860 series,
it will be displayed on such screen automatically. If not, refer
to sections “4.15 How to manage the CPE (router) through
Vigor2860?” for more detailed information.
PPTP
To build a quick VPN connection with PPTP, simply click the
managed CPE displayed on the Display Screen first and then
click such button. If the connection is built successfully,
related information will be displayed on CPE VPN Connection
List.
IPsec
To build a quick VPN connection with IPsec, simply click the
managed CPE displayed on the Display Screen first and then
click such button. If the connection is built successfully,
related information will be displayed on CPE VPN Connection
List.

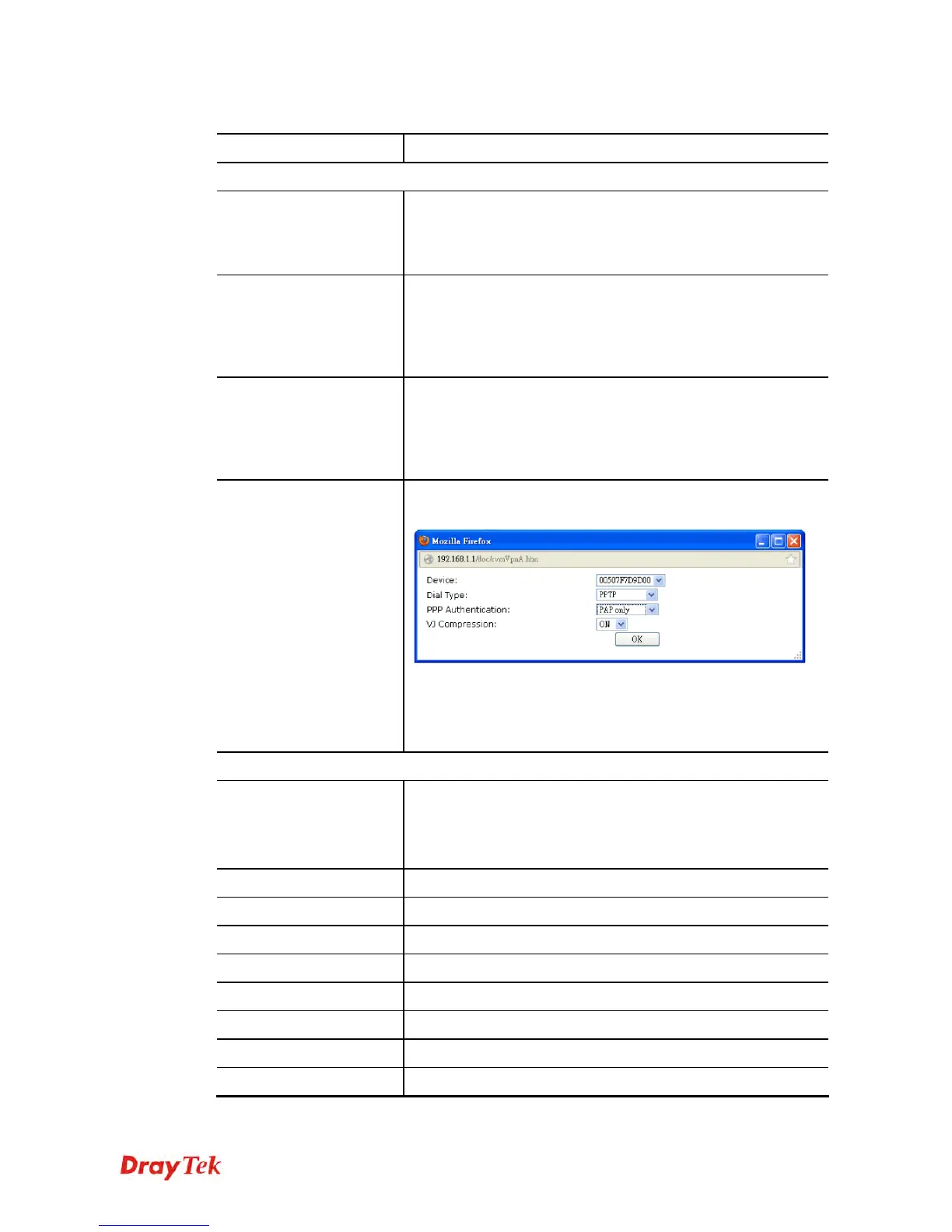

Advanced
To build a VPN connection with detailed configuration (such
as PPP authentication and VJ compression), click Advanced.
Specify the remote CPE from the Device drop down list; select
PPTP or IPsec as the Dial Type; choose PAP only or PAP or
CHAP as PPP authentication; enable (ON) or disable (OFF) VJ
Compression; then click OK to build the VPN connection
CPE VPN Connection List
VPN
Display the name of the LAN-to-LAN profile.
It is generated automatically when you click the
PPTP/IPsec/Advanced button to build the VPN connection
between Vigor2860 and remote CPE.
Type
Display the dial-in type and the authentication method.
Remote IP
Display the IP address of the remote CPE and the interface.
Virtual Network
Display the IP address and subnet mask of Vigor2860 series.
Tx Pkts
Display the number of the transmitted packets.
Tx Rate(Bps)
Display the number of the transmitted rate.
Rx Pkts
Display the number of the received packets.
Rx Rate(Bps)
Display the number of the received rate.
UP Time
Display the connection time of such VPN.
