Draytek Vigor2860 Series User Manual

Vigor2860 Series User’s Guide
520

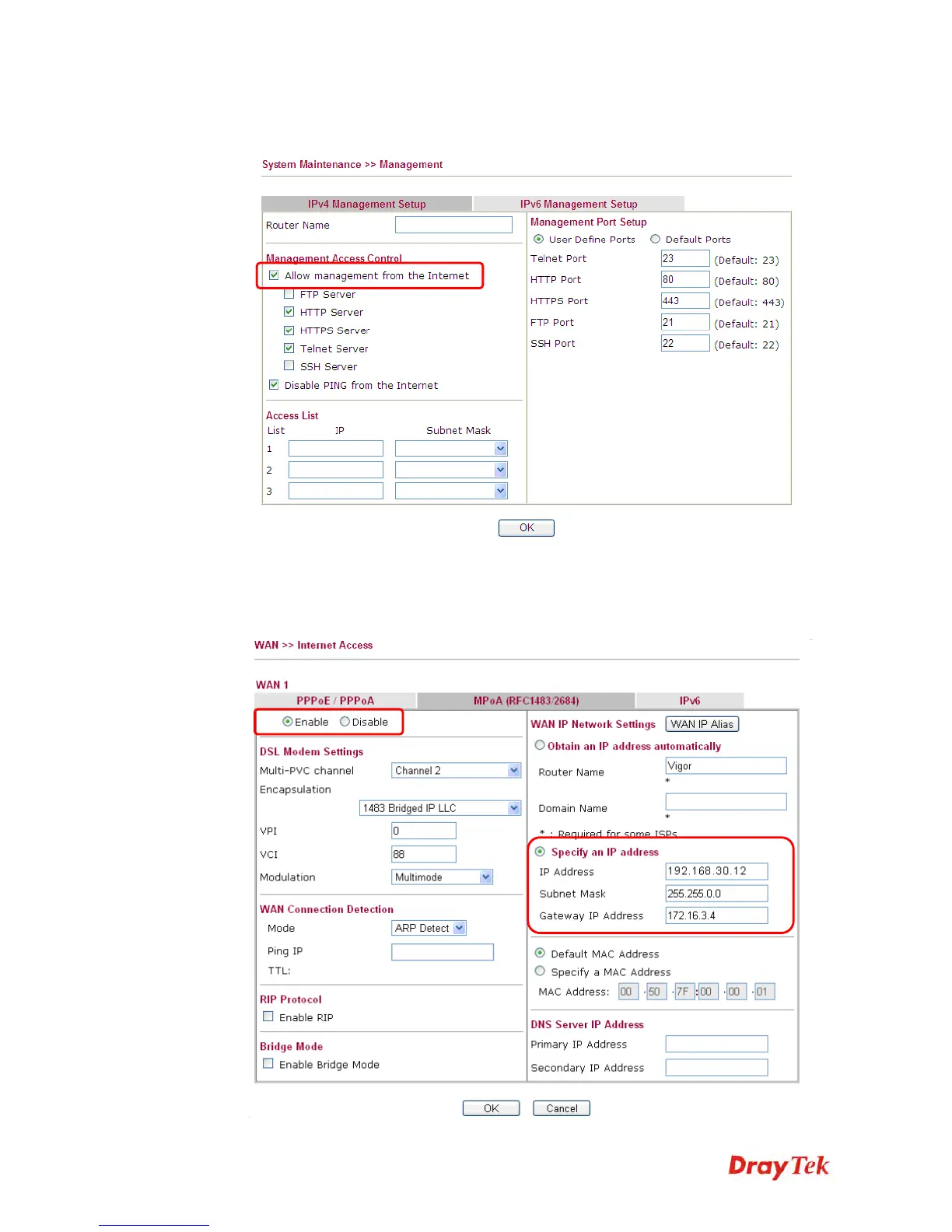

5. Check Allow management from the Internet to set management access control and
click OK.
6. Open WAN>>Internet Access. Use the drop down list of Access Mode on WAN1 to
select MPoA (RFC1483/2684). Then, click Details Page.
7. Click Specify an IP address. Type correct WAN IP address, subnet mask and gateway
IP address for your CPE. Then click OK.

Draytek Vigor2860 Series Specifications

General

Firewall Type	Stateful Packet Inspection (SPI)
VPN Support	IPSec, PPTP, L2TP, SSL VPN
DoS Protection	Yes
Intrusion Prevention System (IPS)	Yes
LAN Interfaces	4 x Gigabit Ethernet
User Authentication	Local, RADIUS, LDAP
VPN Tunnels	32
Management Interface	Web-based, CLI
Concurrent Sessions	50, 000
Content Filtering	URL Keyword Filtering, Web Content Filtering
