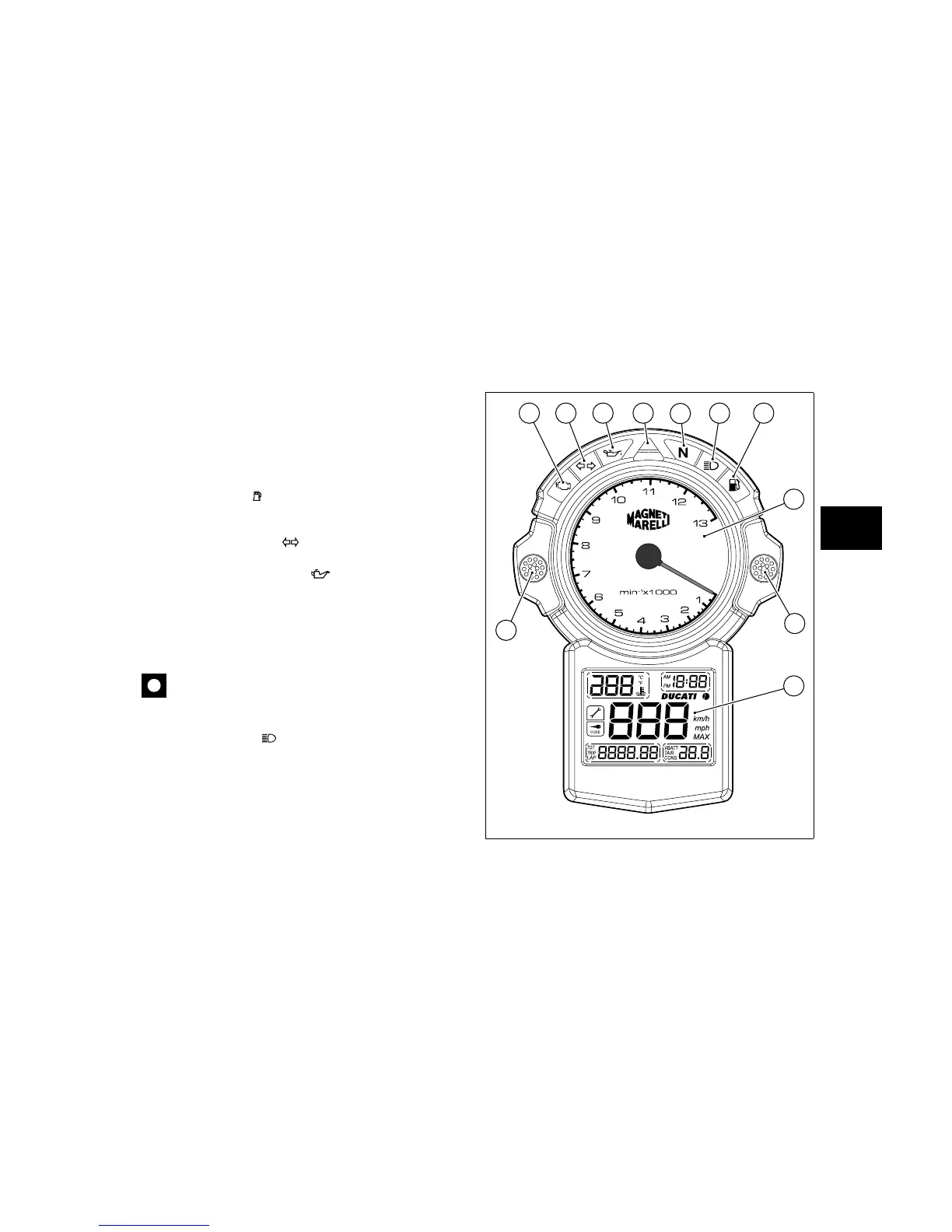

Instrument panel
1) LCD, (see page 12)
2) Engine revolution meter (min
-1
).
Indicates engine rpm.
3) Neutral light (green).
Comes on when gearbox is in neutral.
4) Low fuel light (yellow).
Comes on when there are about 3 liters fuel left in the
tank.
5) Turn indicator light (green).
Comes on and flashes when a turn indicator is on.
6) Engine oil pressure light (red).
Comes on when engine oil pressure is too low. It comes
on when the ignition is switched to ON and normally goes
out a few seconds after engine starts.
It may shortly come on when the engine is hot, however,
it should go out as the engine revs up.
Important
If this light (6) stays on, stop the engine or it may
suffer severe damage.
7) High beam light (blue).
Comes on when high beam is on.
8
5
6
9
3
7
4
2
1
10
10
fig. 4
