Ducati 749R User Manual

E
73

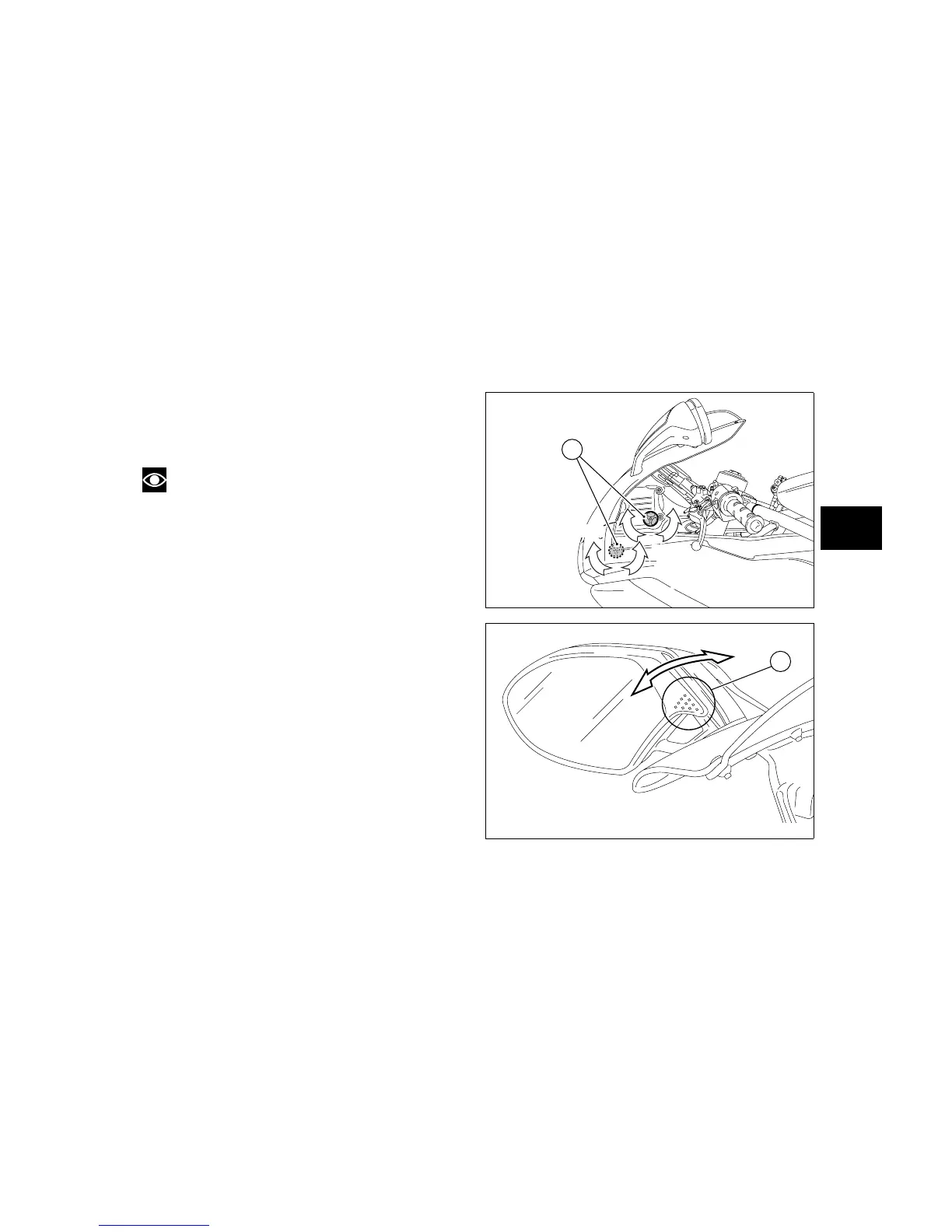

The vertical position of the headlamp is set by means of
the adjusting knobs (1, fig. 75) on the left side of the
headlamp. Rotate the knobs clockwise to lower the beam
or anti-clockwise to raise it.
Note
To gain access to the lower knob, you must first
remove the headlamp fairing as described on page 56.
Rear view mirror adjustment (fig. 76)
The rear view mirror is adjusted manually by pressing at
position (A).
DOWN
UP
1
fig. 75
A
fig. 76

Ducati 749R Specifications

General

Bore x Stroke	94 mm x 54 mm
Transmission	6-speed
Frame	Tubular steel trellis frame
Exhaust	2-1-2 system with catalytic converter and lambda probe
Final Drive	Chain; front sprocket 15; rear sprocket 39
Front Wheel Travel	120 mm
Front Brakes	2 x 320 mm semi-floating discs, 4-piston calipers
Rear Brakes	245 mm disc, 2-piston caliper
Front Tyre	120/70 ZR17
Rear Tyre	180/55 ZR17
Engine Type	L-Twin cylinder, 4 valve per cylinder desmodromic
Power	89 kW (121 hp) @ 10, 250 rpm
Torque	84 Nm (62 lb-ft) @ 8, 500 rpm
Fuel Injection	Electronic fuel injection, 54 mm throttle bodies
Front Suspension	43 mm upside-down fork
Rear Suspension	Fully adjustable monoshock
Rear Wheel Travel	128 mm
Wheelbase	1, 420 mm
Fuel Capacity	15.5 L (including 3.5 L reserve)
