Chapter 3 Advanced Operation
25 mm/
0.98 inch
Paper feed direction
Maximum paper
stacking height:25 mm/0.98 inch
4

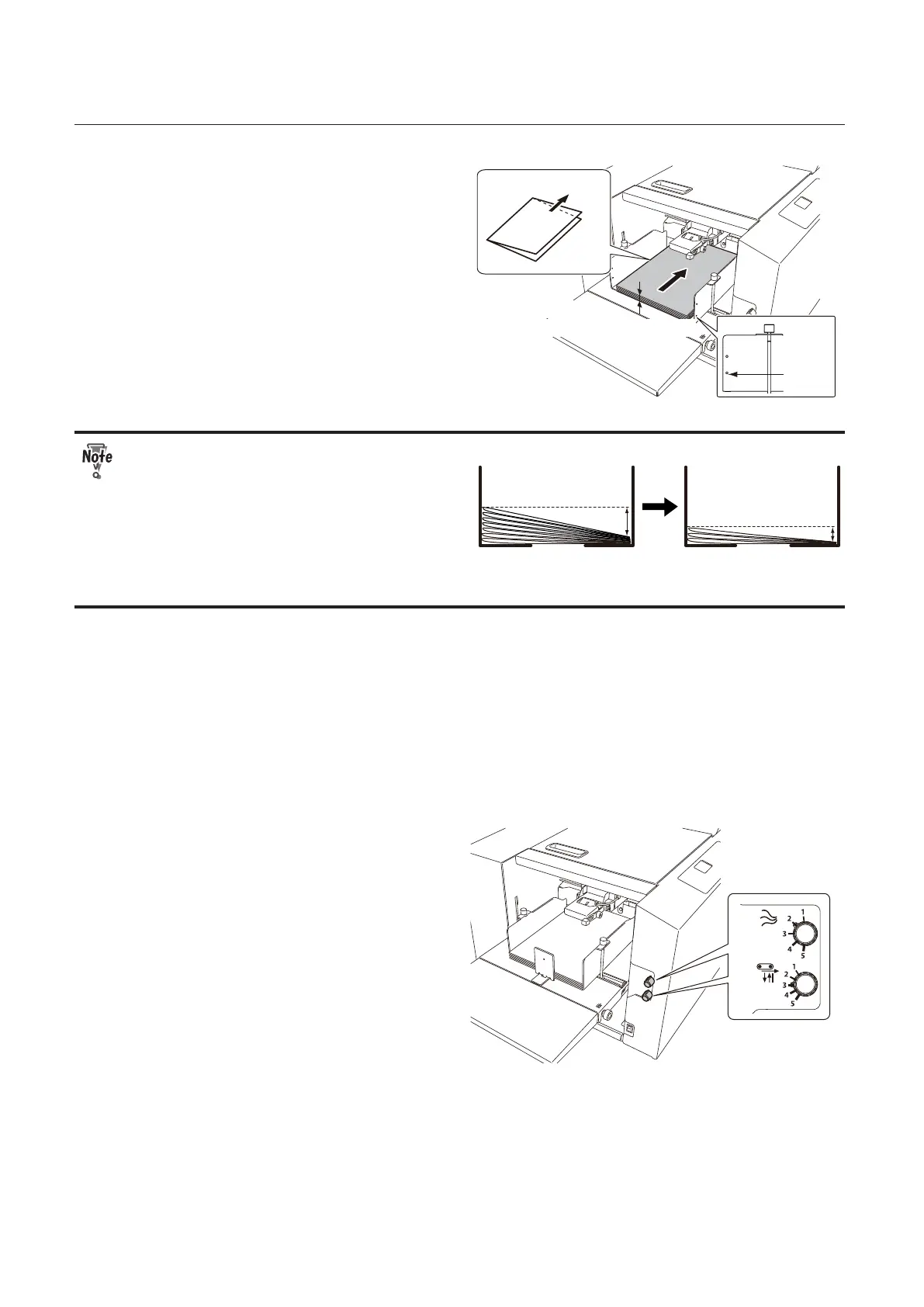

Stack the single-folded paper on the
paper feed tray with the folded line
toward the non-operator’s side.
The stacking amount is equivalent to about
half (25 mm/ 0.98 inch) of the height of the
paper feed guide on the folding side.
A feeding error may occur if the stacking
height of single-folded paper is largely
dierent on both sides even though the
stacking height of single-folded paper is
25 mm/0.98 inch or less. If so, decrease the
number of sheets stacked on the paper
feed tray to reduce the dierence on both
sides of paper.
5
Attach the paper feed guide lightly to the side of the paper and tighten the xing
screws.
6
Set the trail edge guide unit to the rear end of paper.
The trail edge guide unit must be set slightly apart from the paper.
7
Set the air volume of [Sep. Air] or [Pickup Air].
Set the air volume referring to ”Air Adjustment Table” (p.2-7) to the set numerical value + [5].
8
Set the separating air adjustment knob
to [2].
9
Set the separator adjustment knob to
[3].
