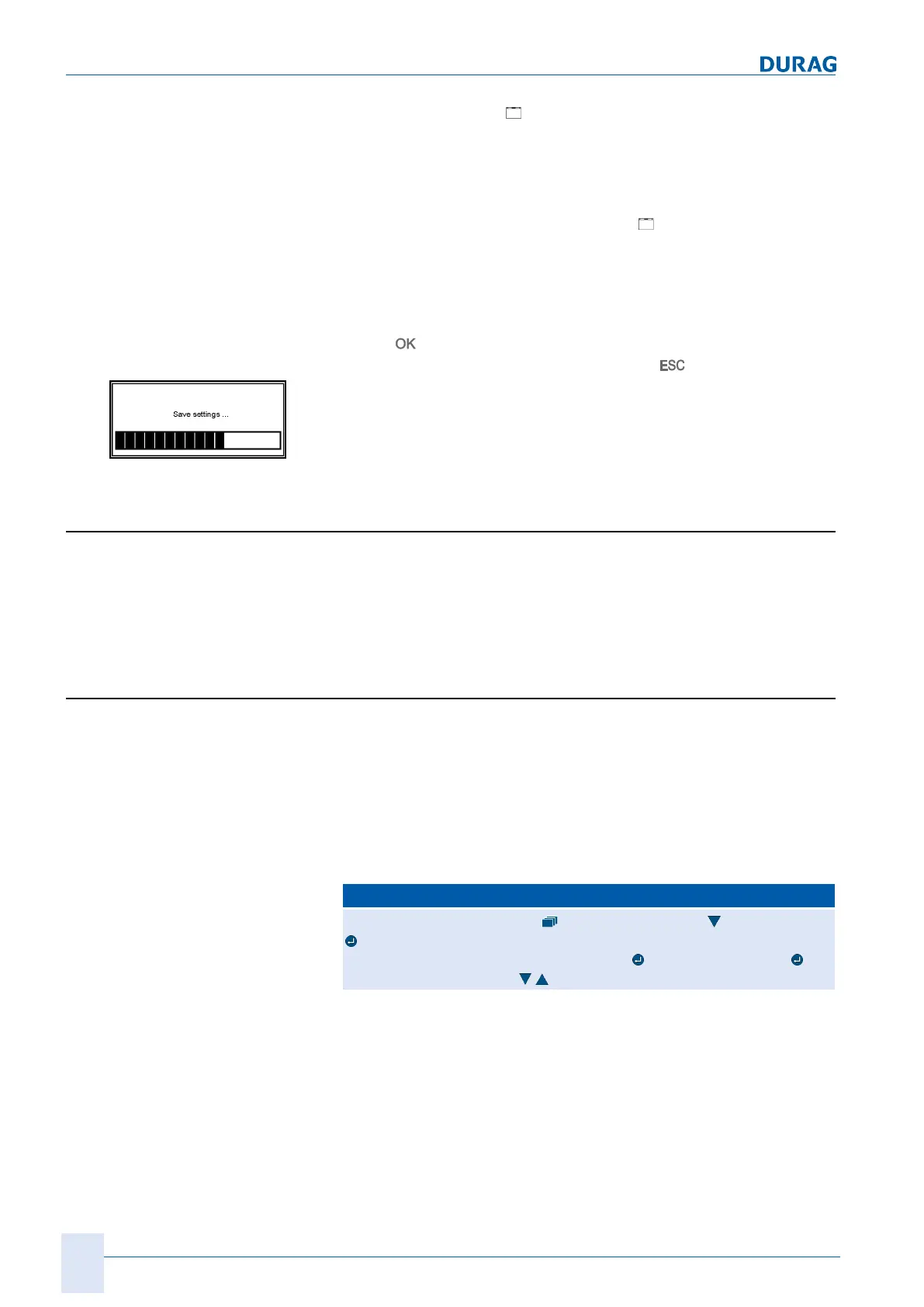

Page #170 background imageLoading...
Page #170 background image
15 | Examples of settings
170
D-ISC 100 x xx2
The contents of the ["
Specific Parameter"] menu item is heavily
dependent upon the connected devices, their functions and the
set parameters.
Parametrisation is performed similarly to parametrisation using
the software D-ESI 100 [}203]. The specific settings for each
sensor are adjusted individually in the [
Specific Parameter]
menu.
Details can be found in the respective device manuals.
While editing parameters:
The entry is temporarily loaded into the device by pressing
the
key.
The entry is discarded by pressing the
key.
Fig.15.24: Message when saving
The change will be loaded from the temporary to the permanent
device memory on return to the measured value/status display.
15.9 Examples: Selection of the displayed data
As previously mentioned in the Chapter 5.2.2 Display of meas-
ured values and status [}67], the display of the Universal control
unit is configurable. The two following chapters give the neces-
sary information using an example.
15.9.1 Example: Selection of the displayed measurement
channel
The measurement channel whose measured values are to ap-
pear in the current display (standard display) for the Universal
control unit can be selected using the keypad and the menu.
For the individual steps, proceed in accordance with the
D‑ISC100 menu path (for an explanation of this, see Section7.1
Navigation guide within this manual [}79]). Comments on the
settings are included in the appropriate text where necessary.
D‑ISC100 menu path:
Standard display (e.g. S1.1) User mode (menu1) Display setup
Current measurement display (menu2.1) Device (menu2.1.1)
= Device MENU 2.1.1.xx /
