Device description
Operating manual 171/173 Version 01.0 - 01/2016 17
4 Device description

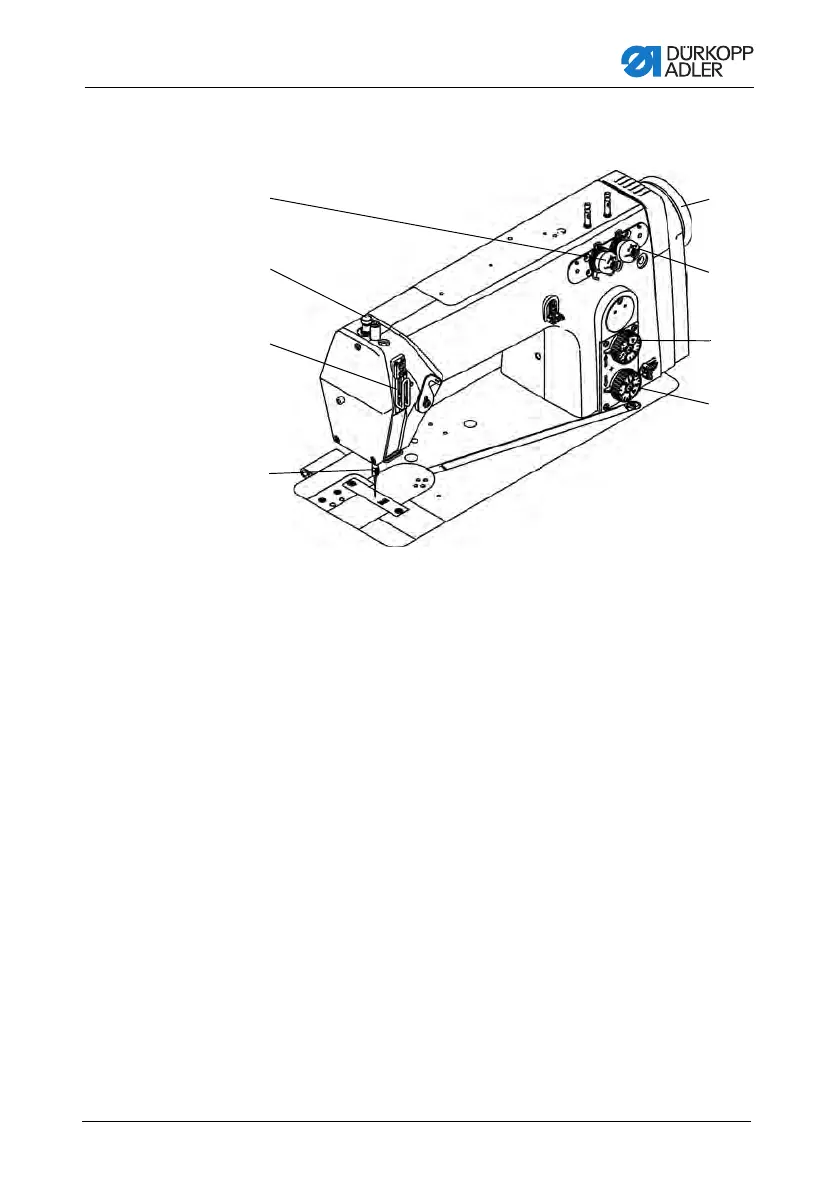

Fig. 1: Complete overview
(1) - Thread tensioner for needle thread
(2) - Adjusting wheel for sewing foot pressure
(3) - Thread lever with thread regulator
(4) - Needle bar with needle
(5) - Adjusting wheel for the 2nd stitch length (stitch condensing)
(6) - Adjusting wheel for normal stitch length for sewing
(7) - Thread tensioner for looper thread
(8) - Handwheel
