Operating manual 171/173 Version 01.0 - 01/2016 69
6.14 Pneumatic connection
6.14.1 Fitting the maintenance unit
The pneumatic connection package is available under order
number 0797 003031. It consists of:
• System connection hose
(length 5 m, diameter 9 mm)
• Hose connectors and hose clamps
• Coupling socket and coupling plug
Correct setting
The system pressure for the pneumatic
unit is 8 - 10 bar.

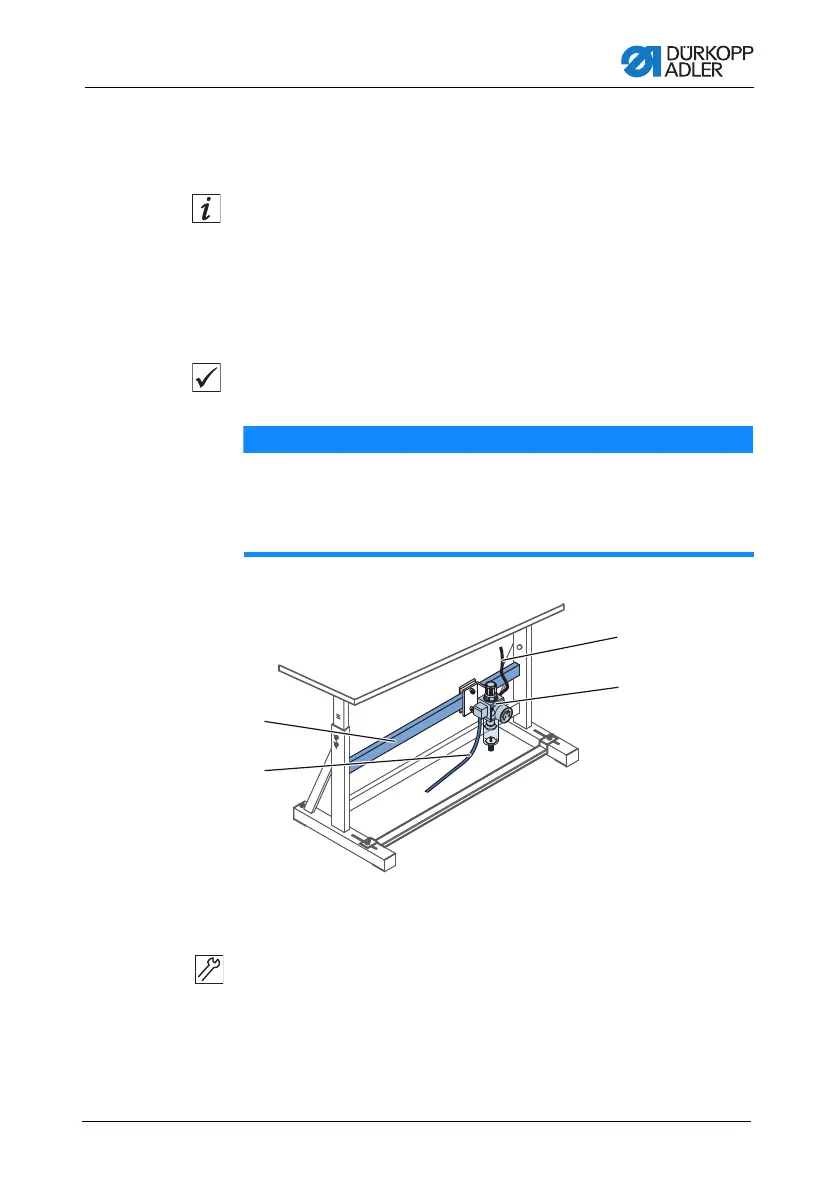

Fig. 47: Fitting the pneumatic maintenance unit
1. Attach the maintenance unit (3) to the upper cross bar (1)
of the frame using the bracket, s
crews and clip.
2. Connect the machine hose (4) coming out of the upper section
to the main
tenance unit (3) at the top right.
3. Connect the system connection hose (2) to the pneumatic system.
Machine damage possible due to incorrect pressure.
Incorrect pressure can cause damage to the machine.
Make sure that the system pressure is set to 8 - 10 bar
before fitting the pneumatic unit.
ATTENTION
0
2
8
4
6
10
4
3
1
2
(1) - Cross bar
(2) - System connection hose
(3) - Maintenance unit
(4) - Machine hose
