Operation
Operating manual 171/173 Version 01.0 - 01/201642
5.12 Keypad on the machine arm
Depending on the equipment, there is a keypad located
on the machine arm to quickly call up various functions.

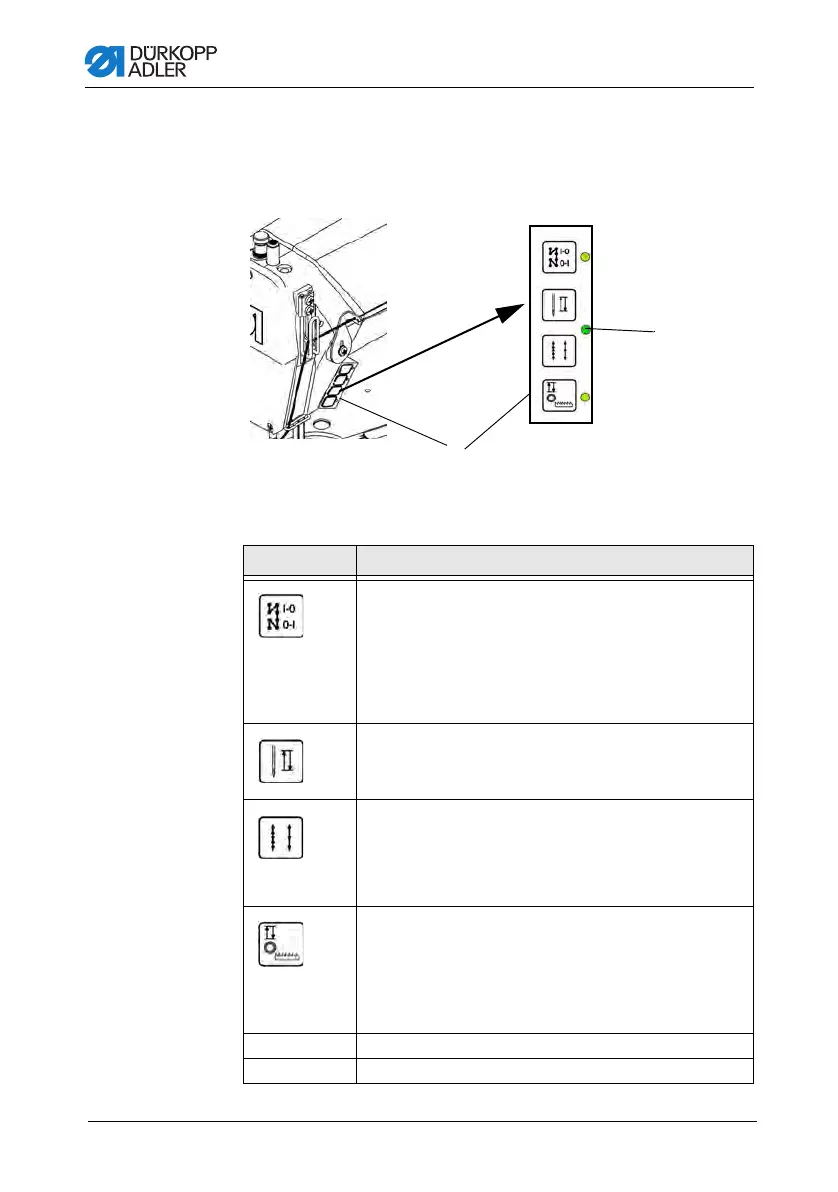

Fig. 26: Keypad on the machine arm
Element Function/meaning
Inverts stitch condensing
Reverses the general setting for automatic stitch
condensing at the start and end of the seam:
If stitch condensing is generally switched on,
it is suppressed for the next stitch condensing.
If stitch condensing is generally switched off,
stitc
h condensing is enabled.
Positions needle in the upper/lower position
The setting position is described in the controller's
operating manual.
Manual stitch condensing during sewing
As long as the button is pressed, the machine sews
using the stitch length selected
on the upper adjusting
wheel for the stitch condensing.
(
5.7.2 Adjusting the stitch condensing, pg. 35)
Lifts the carrier roller
When the button is pressed, the carrier roller is raised
(
5.8.3 Lifting the carrier roller, pg. 38). Renewed
pressing of the button lowers the roller again. As long
as the r
oller is raised, the yellow LED next to the button
lights up.
Yellow LED Lights when function is activated.
Green LED Lights when the sewing drive is switched on.
(1) - Keypad (2) - Indicator lamp, power supply
①
②
