Set-up
Operating manual 171/173 Version 01.0 - 01/2016 55
6.3 Fitting the frame components

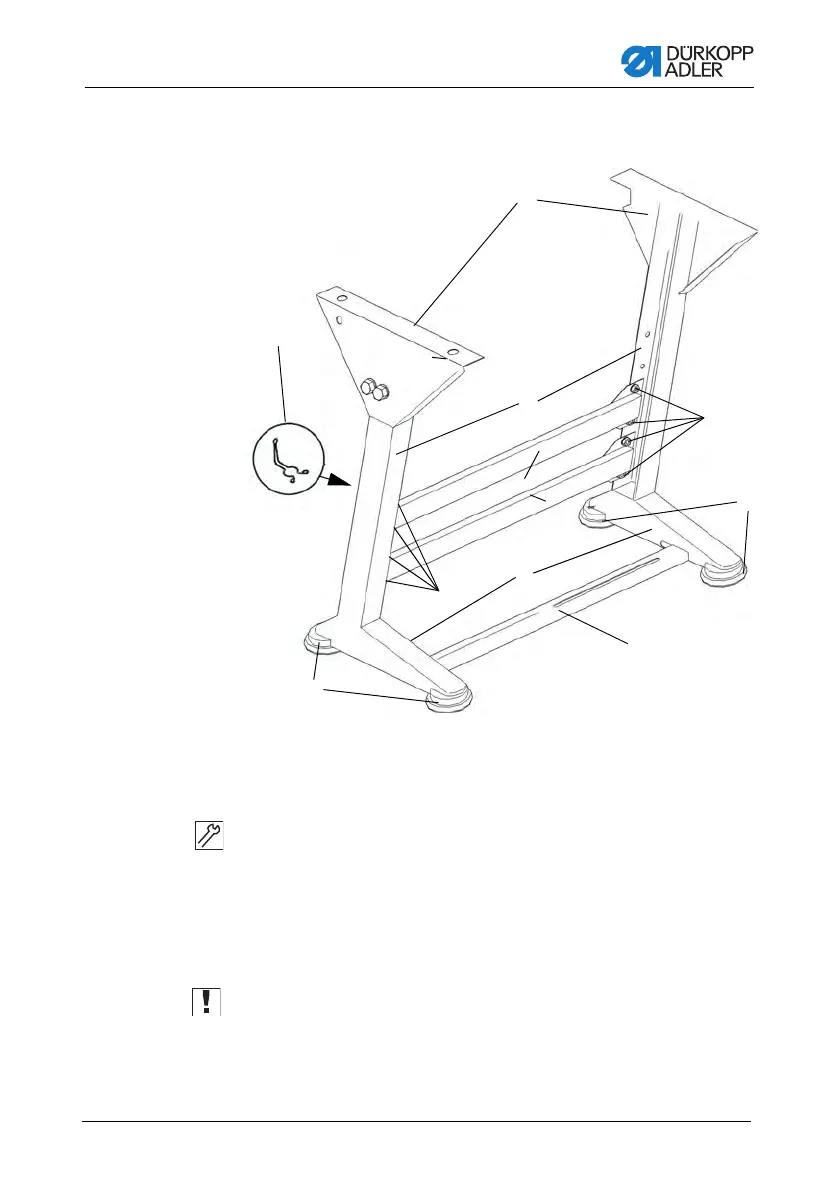

Fig. 33: Fitting the frame components
1. Screw the cross bars (4) onto the frame bars (3).
2. Screw the cross strut (7) onto the foot struts (6).
3. Screw the head sections (1) onto the frame bars (3).
4. Push all 4 frame feet (5) onto the foot struts (6).
5. Loosen all 8 fastening screws (8) on the cross struts (4)
sl
ightly and ensure that the machine is standing securely.
Important: Th
e frame must sit evenly on the ground with
all 4 feet.
6. Tighten all 8 fastening screws (8).
7. Screw the oil can holder (2) at the rear to the upper
cr
oss bar (4).
(1) - Head sections
(2) - Oil can holder
(3) - Frame bars
(4) - Cross bars
(5) - Frame feet
(6) - Foot struts
(7) - Cross strut
(8) - Fastening screws
①
②
⑤
③
④
⑥
⑦
⑤
⑧
⑧
