Set-up
Operating manual 171/173 Version 01.0 - 01/201660
6.7 Fitting the machine upper section

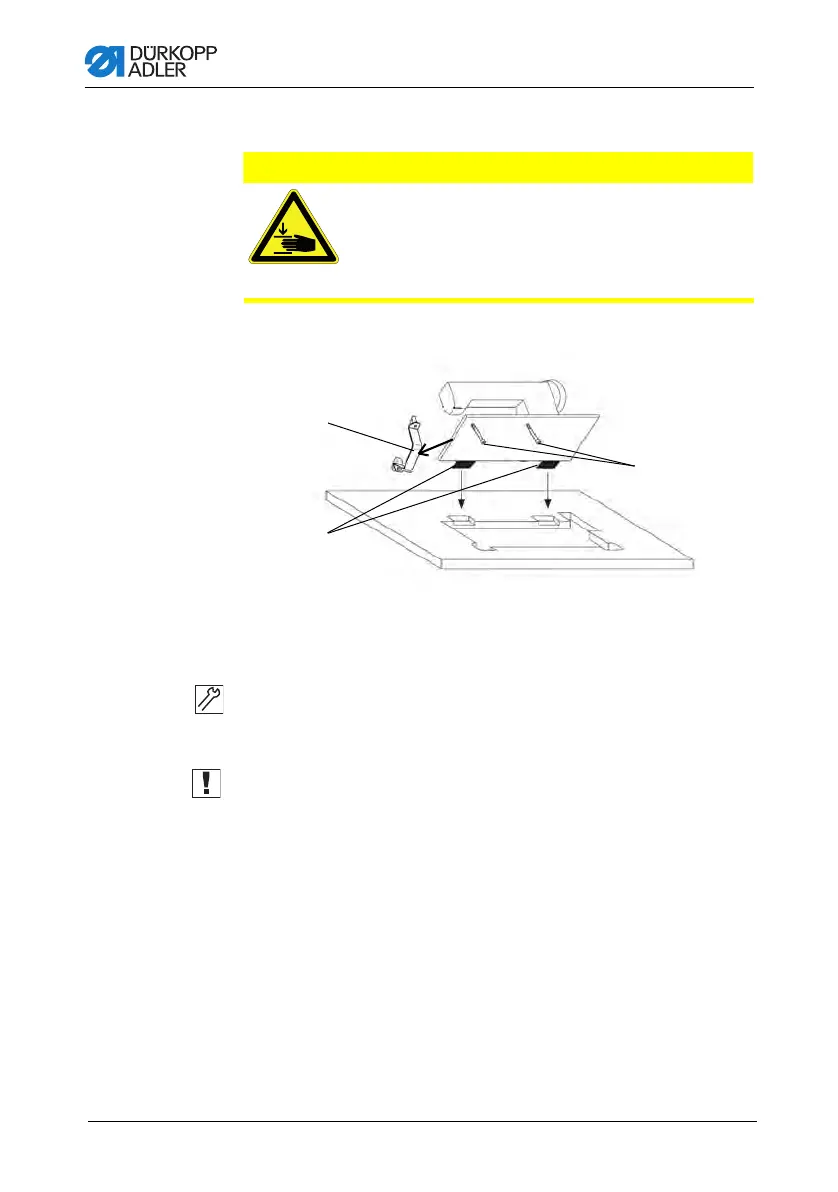

Fig. 38: Fitting the machine upper section
1. Insert the machine upper section at a 45° angle from
above with the hinge upper parts (2) in the rubber inlays.
2. Tilt the upper part of the machine backwards.
3. Important: Remove the protective ba
r (1) and support
screws (3).
4. Straighten up the upper part of the machine.
Risk of crushing.
The machine upper section is heavy.
Take care not to jam your hands when fitting.
This especially applies when fitting the hinge
upper parts into the rubber inlays.
WARNING
(1) - Protective bar
(2) - Hinge upper parts
(3) - Support screws
