Set-up
Operating manual 171/173 Version 01.0 - 01/201666
6.12 Fitting the oil return line
The oil return line collects the oil that runs into the oil pan
and returns it via a pump to the oil circuit.

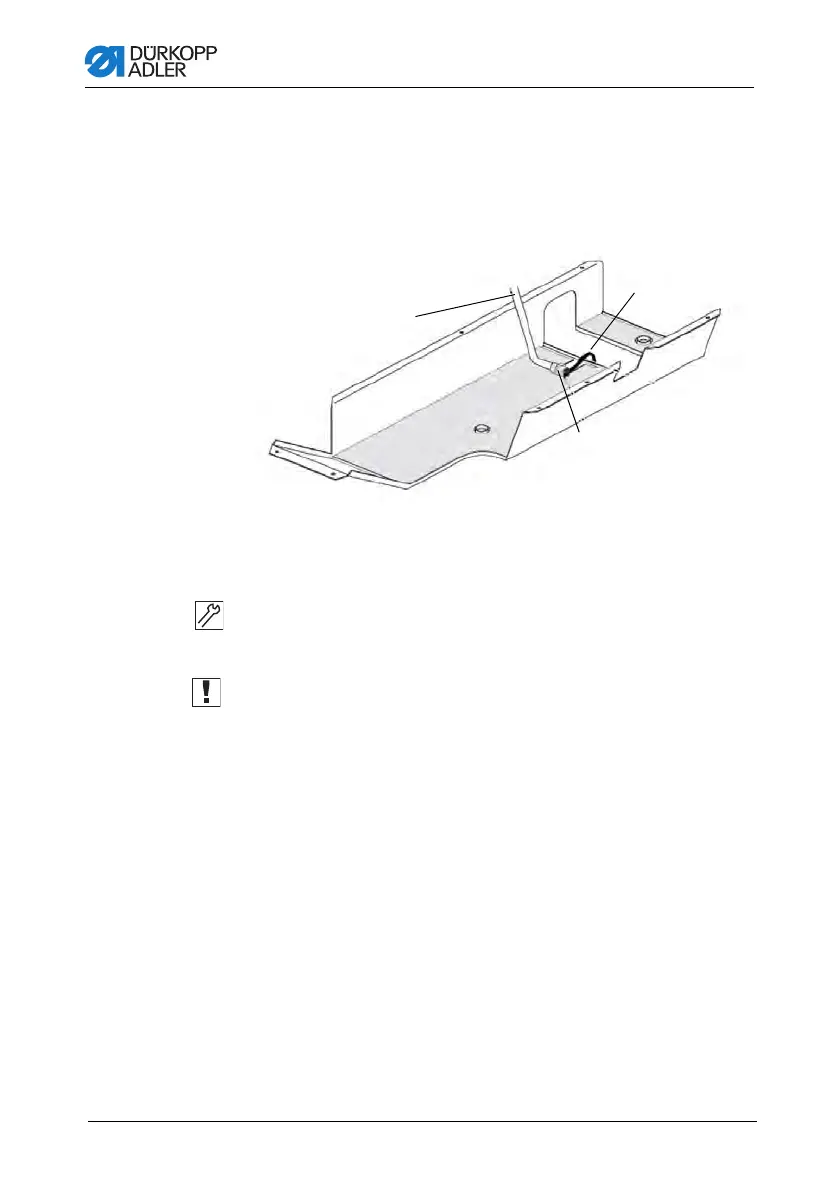

Fig. 45: Fitting the oil return line
1. Tilt the upper part of the machine backwards.
2. Wrap the suction filter (2) with its felt and secure to the oil plate
using the clamp (3).
3. Important: Lay and
secure the oil hose (2) such that it does
not come into contact with any moving parts.
4. Return the upper part of the machine to the upright position.
(1) - Oil hose
(2) - Suction filter
(3) - Clamp
