DURKOPP ADLER 171 Operating Manual

Set-up
Operating manual 171/173 Version 01.0 - 01/201670
6.14.2 Setting the operating pressure
Correct setting
The operating pressure for the pneumatic unit is 6 bar.

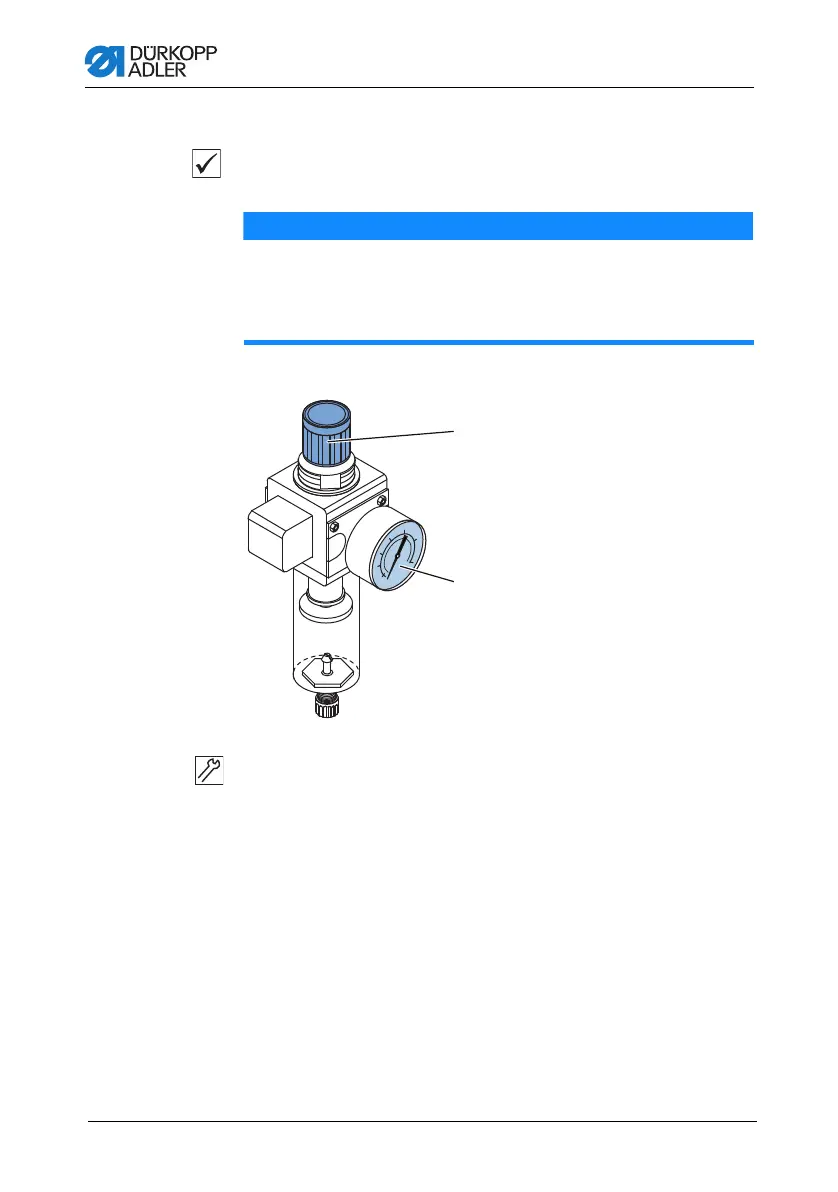

Fig. 48: Setting the operating pressure
1. Pull the turning handle (1) up.
2. Set the operating pressure in such a way that the pressure
indi
cator (2) indicates 6 bar precisely:
• T
o increase the pressure:
Turn the rotary handle (1) clockwise.
• T
o reduce the pressure:
Turn the rotary handle (1) counterclockwise.
3. Push the turning handle (1) down.
6.15 Oil lubrication
 5.16.1 Oil lubrication, pg. 48.
Machine damage possible due to incorrect pressure.
Incorrect pressure can cause damage to the machine.
Make sure that the operating pressure is set correctly
before putting the machine into operation.
ATTENTION
0
2
8
4
6
10
1
2
(1) - Turning handle
(2) - Pressure indicator
